Product Description

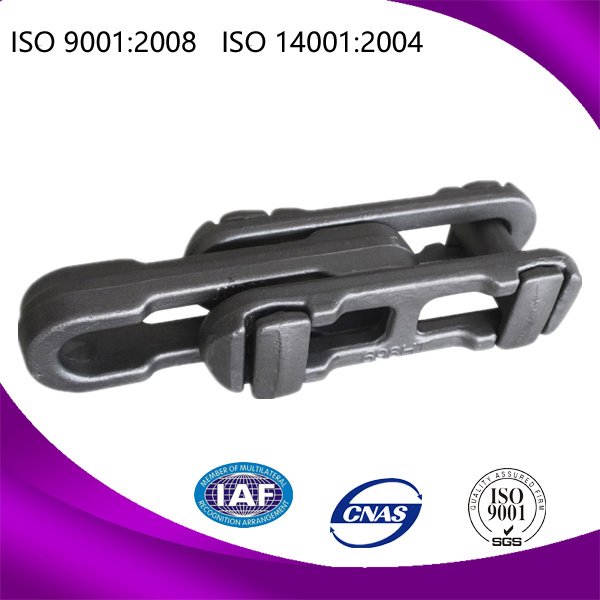

Drop Forged Chain
The drop forged chain is mainly composed of three drop forged components that are the pin roll, middle chain ring, and the outer chain sidebar. It can be conveniently assembled and disassembled, completely by hand without tools. For instance, the assembly can be easily completed by passing the outer sidebar through the middle chain ring, and then rotate the middle chain ring for 90 degrees to engage with the pin roll.

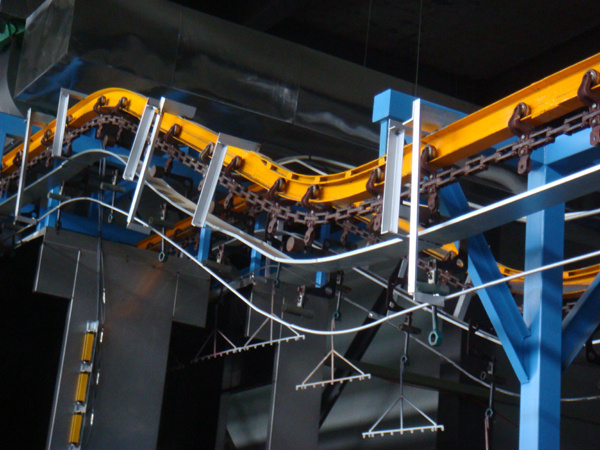

When the chain forms into a ring, it can be utilized as a conveyor chain for heavy loads. Our drop forged chain is often found on the conveying equipment and suspension equipment, in automobile, food processing, and steelmaking industries.
Specification
| Standard | Chain No. | Reference pitch P (mm) | Diameter of pin d2 (mm) | Length of pin L (mm) | Standard length (min/max) (mm) | Number of pitch within standard length | Sideward bending angle α (°) | Width of sidebar h2 (mm) | Tensile strength (KN) | Weight per meter (kg/m) |
| British system series | X348 | 76.6 | 12.7 | 47 | 3050.5/3095.2 | 40 | 9 | 27 | 98 | 2.7 |
| X458 | 102.4 | 16 | 58 | 3063.1/3090.2 | 30 | 9 | 35 | 187 | 5.2 |
| 468H | 102.4 | 19.5 | 84.1 | 3063.1/3090.2 | 30 | 9 | 47.8 | 311.7 | 11.5 |
| X678 | 153.2 | 22.3 | 77 | 3055.1/3082.8 | 20 | 7 | 51.6 | 318 | 9.5 |
| 698 | 153.2 | 28 | 95.3 | 3055.1/3082.8 | 20 | 7 | 60 | 515 | 17 |
| 698H | 152.4 | 39 | 154 | 3039.2/3066.6 | 20 | 7 | 72 | 1078 | 37.7 |
| Metric system series | F100X16 | 100 | 15.5 | 77 | 2991.3/3018.3 | 30 | 9 | 35 | 187 | 4.7 |
| F100X17 | 100 | 17 | 77 | 2991.3/3018.3 | 30 | 9 | 35 | 187 | 4 |
| F160X24 | 160 | 23.5 | 96 | 3190.7/3219.5 | 20 | 7 | 51.6 | 318 | 10.3 |
| British system series | X348 | 76.6 | 12.7 | 47 | 3050.5/3095.2 | 40 | 9 | 27 | 98 | 2.7 |
| X458 | 102.4 | 16 | 58 | 3063.1/3090.2 | 30 | 9 | 35 | 187 | 5.2 |
| 468H | 102.4 | 19.5 | 84.1 | 3063.1/3090.2 | 30 | 9 | 47.8 | 311.7 | 11.5 |
| X678 | 153.2 | 22.3 | 77 | 3055.1/3082.8 | 20 | 7 | 51.6 | 318 | 9.5 |
| 698 | 153.2 | 28 | 95.3 | 3055.1/3082.8 | 20 | 7 | 60 | 515 | 17 |
| 698H | 152.4 | 39 | 154 | 3039.2/3066.6 | 20 | 7 | 72 | 1078 | 37.7 |
| Metric system series | F100X16 | 100 | 15.5 | 77 | 2991.3/3018.3 | 30 | 9 | 35 | 187 | 4.7 |
| F100X17 | 100 | 17 | 77 | 2991.3/3018.3 | 30 | 9 | 35 | 187 | 4 |
| F160X24 | 160 | 23.5 | 96 | 3190.7/3219.5 | 20 | 7 | 51.6 | 318 | 10.3 |
Why Choose DCC? 1. Changzhou Dongwu chain transmission manufacturing Co., Ltd is a professional manufacture of chains, and is the member unit of China National technical committee for standardization for China transmission,
2. We occupied an area over 100 thousand sqm, owned standard workshops over 30 thousands sqm and over 300sets of professional equipments to produce chains in large-scale as well as complete inspection and test devices.
3. We passed through the authentications of ISO9001: 2000 international quality system and ISO14001 environmental management system.
4, we have 75% of products which are exported to Europe, America, Japan and Southeast Asia Nations,
5.12years factory experience, Nearly all the parts are produced by our own factory, therefor we can control the cost and quality.
Choose DCC, you mean choosed High quality, competitive price, perfect servise,
Wish we will promote business as well as friendship!
The chain & sprocket kit makes for a simple but extremely effective combination. These components are an integral part of logistic equipment, material handling equipment, and other types of automated mechanical assemblies. Renowned for durability and dependability, DONGWU can provide prospective customers with outstanding chain transmission solutions.
As an experienced Chinese transmission chain manufacturer, we offer a wide variety of products including the engineering class roller chain, conveyor chain, elevator chain, drop forged chain, welded steel chain, and sprockets. Also available are specialized chains for sugar and palm oil industries. The strong engineering capacity of DONGWU has assisted many a client with the effective design of unique products. Custom orders with pre-attached drawings and samples can be accommodated. We will formulate corresponding blueprints and await the manufacturing confirmation. Fact-more than 40% of our annual production value can be attributed to custom products with non-standard specifications.
Incorporated in 2000, we have since made significant strides in the improvement of manufacturing techniques. A complete corporate management system allows us to effectively recruit new talents while developing new types of engineering and conveyor chains. Through progressive advancement, we have emerged as the leading designer and manufacturer of nonstandard conveyor chains in mainland China. Our excellent reputation has allowed us to gain entry into the National Chain Transmission Standardizing Technology Committee of China.
