Product Description

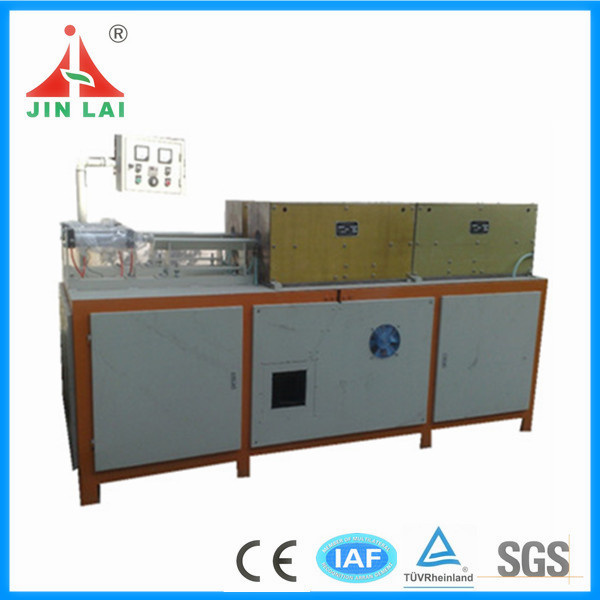

Steel Round Bar Induction Forging Heating Machine
1. Application:
By diathermy machine cooperating with medium or high frequency power supply, to achieve the heating process. Commonly used in forging, casting, welding, annealing and other heat treatment process with bar, pipe, wire, sheet and various metal parts.
2. Main technical parameters:
Output Power: 20~3500KW
Output Frequency: 0.5~4KHZ
Max Using Temperature: 1250° C(nonferrous metal)
Output Voltage: 20~2000V
Workpiece Material: Steel, iron, copper, aluminum, stainless steel etc
Artifacts Quantity: Single, double location, three, four or more locations
Temperature measurement: Far infrared temperature measurement
3. The types of commonly used heating equipment:
1> bar, pipe diathermy equipment: Section of club, the tube material diathermy before forging or stamping;
2> wire diathermy equipment: Diathermy of linear materials or disk wire;
3> plank diathermy equipment: Diathermy of automobile plate spring, steel plate shape materials etc;
4> special-shaped parts and local diathermy equipment: Used for special-shaped parts global or local diathermy;
5> line heating equipment: Diathermy materials or components with global or local heating in continuous production line, such as PC steel production line, seamless steel tube rolling production line, seamed steel pipe production line, pipe production line, cap sealing production line, etc.
6> Oversize parts diathermy equipment: Used for especially big parts(big volume, heavy) diathermy, such as Marine gear, dam sluices rails, power station motor end ring, large oil pipeline, etc.;
|
Medium Frequency Diathermy Equipment |
|
Model NO |
Input power ( 50/60HZ) |
|
Water consumption/hour(ton) |
|
|
efficiency ( T/H ) |
|
power KW |
Input voltage V |
Current
A |
Direct current A |
Direct voltage (V) |
MF voltage (V) |
MF frequency (KHZ) |
Power consumption(KW/H) |
Workpiece diameter(mm) |
|
JL-KGPS--50 |
50 |
380 |
80 |
100 |
500 |
750 |
2-4 |
2-10 |
450 |
10-30 |
0.12 |
|
JL-KGPS--100 |
100 |
380 |
160 |
200 |
500 |
750 |
2-4 |
2-10 |
450 |
20-50 |
0.25 |
|
JL-KGPS--160 |
160 |
380 |
256 |
320 |
500 |
750 |
2-4 |
2-10 |
430 |
25-70 |
0.4 |
|
JL-KGPS--200 |
200 |
380 |
320 |
400 |
500 |
750 |
2-4 |
2-10 |
430 |
30-100 |
0.52 |
|
JL-KGPS--300 |
300 |
380 |
480 |
600 |
500 |
750 |
2-4 |
2-10 |
420 |
50-150 |
0.83 |
|
JL-KGPS--400 |
400 |
380 |
640 |
800 |
500 |
750 |
2-4 |
2-10 |
400 |
60-200 |
1.15 |
|
JL-KGPS--500 |
500 |
380 |
800 |
1000 |
500 |
750 |
1-2.5 |
5-15 |
390 |
70-230 |
1.47 |
|
JL-KGPS-600 |
600 |
380 |
960 |
1200 |
500 |
750 |
1-2.5 |
5-15 |
390 |
70-270 |
1.76 |
|
JL-KGPS--800 |
800 |
380 |
1280 |
1600 |
500 |
750 |
0.7-1 |
10-20 |
370 |
80-300 |
2.4 |
|
JL-KGPS--1000 |
1000 |
380 |
1600 |
2000 |
500 |
750 |
0.7-1 |
10-20 |
370 |
100-350 |
2.95 |
|
JL-KGPS--1200 |
1200 |
380 |
1920 |
2400 |
500 |
750 |
0.7-1 |
10-20 |
380 |
|
3.2 |
|
720 |
1010 |
1260 |
950 |
1650 |
120-380 |
|
|
JL-KGPS--1500 |
1500 |
720 |
1263 |
1578 |
950 |
1200 |
0.5-1 |
15-25 |
360 |
|
3.7 |
|
950 |
960 |
1200 |
1200 |
1650 |
120-380 |
|
|
JL-KGPS--2000 |
2000 |
720 |
1684 |
2105 |
950 |
1200 |
0.5-1 |
20-30 |
330 |
|
4.3 |
|
950 |
1280 |
1600 |
1200 |
1650 |
120-380 |
|
|
JL-KGPS--2500 |
2500 |
720 |
2150 |
2630 |
950 |
1200 |
0.3-0.7 |
25-35 |
330 |
|
5 |
|
950 |
1600 |
2000 |
1200 |
1650 |
120-380 |
|
|
JL-KGPS--3500 |
3500 |
|
|
|
|
|
0.2-0.5 |
25-35 |
330 |
|
5.8 |
|
1000 |
1825 |
2280 |
1315 |
1650 |
120-380 |
|
|
:1.steel 1250°C 2.iron1150°C 3.red copper 850 °C 4.brass 650 °C 5. aluminum500 °C |
|
|
