| Prod Model: |

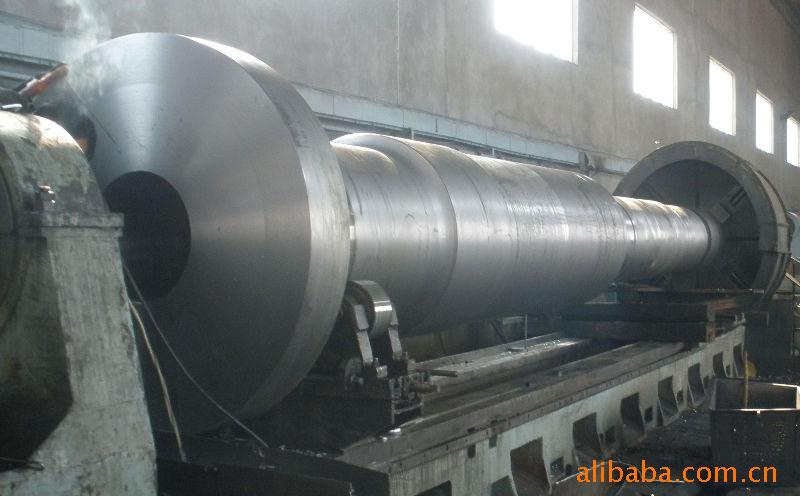

Forged Bars C60e+N electric motor shaft |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cast Iron, Grey Iron, Ductile Iron, Steel, Stainle |
| Stiffness & Flexibility: |
Flexible Shaft |
| Load: |
Central Spindle |
| Axis Shape: |
Soft Wire Shaft |
| Shaft Shape: |
Real Axis |
Product Description
Specifications
Produce according to the users' specification.
Lower price with high quality
The parts are customized according to your demand. The high quality, competitive price and good service are our targets.
We are speciale in produce according to our clients' specimen or prints. Please contact us freely as a good friend if you are interested in our products and service.
Below is our producing range, sincerely expect to cooperate with the world-range buyer.
Material
Cast iron, grey iron, ductile iron, steel, stainless steel, brass, copper, aluminum, zinc etc
Casting
Sand casting, precision casting, investment casting, lost wax casting, die casting, gravity casting
Machine
Lathe, CNC, drilling machine, milling machine, boring machine, planting machine, machining center etc
Surface treatment
Powder coating, painting, spraying, galvanization
Inspection equipment
Profile projector, Rockwell hardness tester, Vickers hardness tester roughness tester, air gage, concentricity tester, universal microscope, CMM, digital caliper and etc.
Production usage
All kinds of aluminum casting: Include automotive parts, railroad parts, medical parts, marine parts, lighting parts, pump body, valve parts, architectural parts and furniture parts so on
Remark
(1) Any RFQ, Please feel free to send your drawings(CAD. PDF)for quotation.
(2) All parts are not in stock, customized only!
Tooth traceInvolute
Material4119
ProcessForging, carburization and teeth grinding
Pressure angle20°
Quality levelDIN 6
TypeMn=7, Z=23, β =9° , a=20° Left hand;
Mn=6, Z=17, β =9° , a=20° Right hand;
Z=10, B=10, rectangular spline
BrandNYY
Max. N. M3600
Total length mm800
Our Feature:
1) In-house capability: OEM service as per customers' requests, with in-house tooling design & fabricating
2) Professional engineering capability: On product design, optimization and performance analysis
3) Manufacturing capability range: DIN 3960 class 8 to 4, ISO 1328 class 8 to 4, AGMA 2000 class 10-15, JIS 1702-1703 class 0 to 2, etc.
4) Packing: Tailor-made packaging method according to customer's requirement
5) Just-in-time delivery capability
Primary Competitive Advantages:
Manufacturer
Experience in Cooperate with Fortune 500 Companies
Professional Engineering Capability
Stable Quality
Reasonable Price
Small Orders Accepted
Continuous Improvements
High Product Performance
Prompt Delivery
Professional Service
|
Structure: |
Spline |
Material: |
Steel |
Coatings: |
Nickel |
|
Torque Capacity: |
3600 |
Length: |
800 |
Model Number: |
gear 36 |
|
Place of Origin: |
Jiangsu China (Mainland) |
Brand Name: |
GD |
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.
Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection
Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.
Specifications:
Description
The heavy forging: Forged ring, shaft, roller, flange, or gear
Material
Alloy steel or stainless steel
Material standard
ASTM or GB/T3077-1999
Specification
As per specified requirements
Weight
Max. 250 ton
Smelting Process:
EF+LF + VD+VC
Process
Ingot→ Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection
→ Rough machining→ UT → 2ND Heat treatment → Finishing machining → Inspection
UT standard
EN10228, ASTM A388 or JB/T 5000.15-1998
Competitive Advantage:
The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.
Excellent product quality and service, competitive price, "in-time" delivery
