Product Description

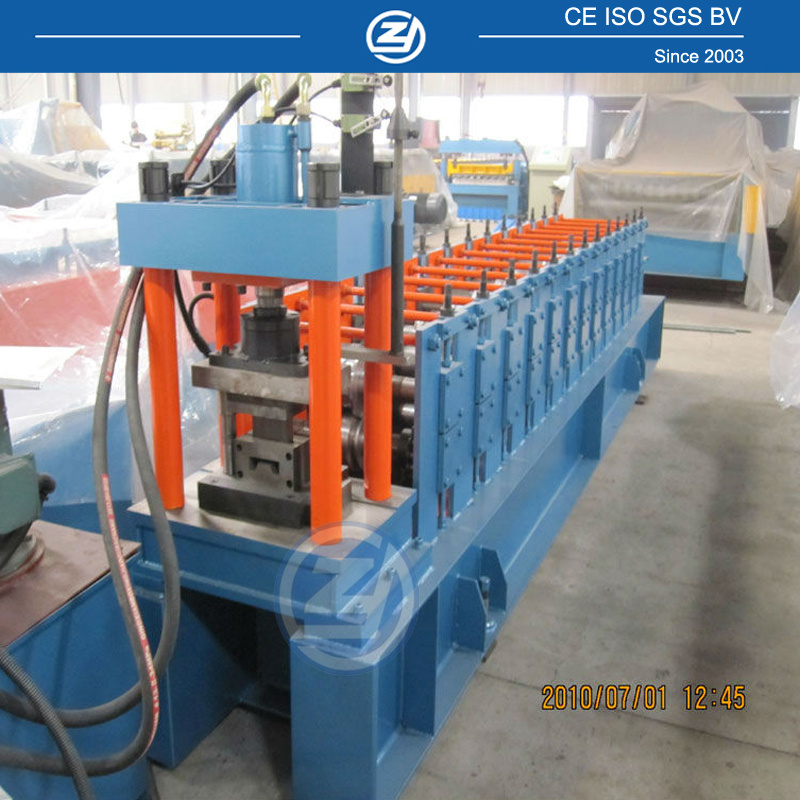

Steel Shaping Cold Roll Forming Machine
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime seivices
3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
Parameters Sheet
| Item | Specification |
| Material | Type | Color steel sheet or galvanized steel sheet |
| Thickness(mm) | 0.4-0.6 |
| Yield strength(mpa) | 235 -345 |
| Roller material | 45#Chrome steel |
| Forming speed(m/min) | About 120m/min |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 5.5KW (Depend on final design) |
| Hydraulic station power | 2.2K W (Depend on final design) |
| Total power(kw) | 7.7KW |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs (can be increased to be 10T) |
| Machine weight | About 4-5T for different profile machine |
| Machine size | About 8*1.5*1.4m (Depend on final design) |
Components of machine
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Pre-cutting device | 1set |
| Main roll forming machine | 1set |
| Punching equipment | 1set |
| Hydraulic cutting system | 1set |
| PLC Controlling system | 1set |
| Run out table | 1set |
| Process flow: |
| Decoiling the sheet → Leveling sheet → Roll forming → Punching-- Measure length and cutting → the Purline to the supporter |
Controller:
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.
Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
