Product Description
Steel Tile Roofing Roll Forming Machine
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
Product Feature:
The colored steel tiles produced by this roll forming machine look beautiful, elegant and noble. They are widely used as the roof of garden, factory, hotel, exhibition center and villa, etc.
Machines components:

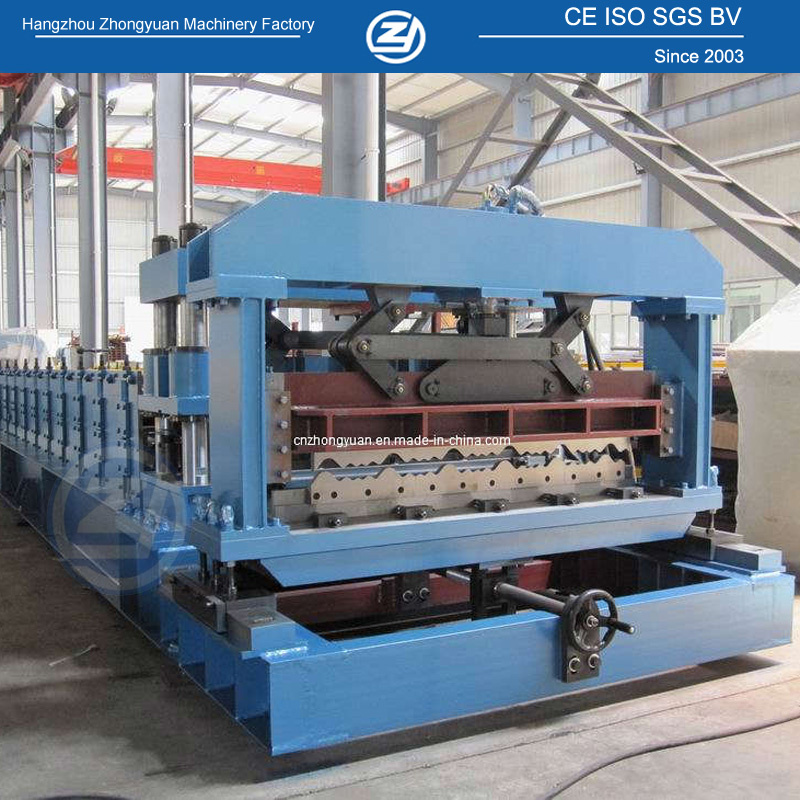

Tile forming machine consists of uncoiler, coil sheet guiding device, main roll forming system, pressing device, cutting device, Hydraulic station, PLC control system and support table.
Material of Main Equipment
Roller Material: High grade No. 45 forged steel, with digital-controlled procession, Painted with hard chrome.
Active Shaft Material: High grade No. 45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft. Shaft diameter is 72mm.
Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.
Other elements from famous suppliers in China
Cutter blade: Cr12 mould steel with quenched treatment
Main technical parameters
Technical parameter |
| Item | Specification |
Raw Material | Type | Pre-painted steel coil |
| Thickness(mm) | 0.5-0.6 |
| Yield strength(mpa) | 235 |
| Roller material | 45# steel , coated with Chrome |
| Shaft for rollers | Solid shaft with 72mm,processed with cylindrical grinder |
| Forming speed(m/min) | About 10 |
| Output speed(m/min) | 3-4 |
| Speed adjusting mode | Mitsubishi frequency transformer |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel |
| Length measurement | Nemicon Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 5.5KW |
| Total power(kw) | 11KW |
Process flow
Decoiler -- Feeding & Guiding -- Roll Forming-- Pressing--Hydraulic Cutting - Product to Run Out Table |
Controller:
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
