| Prod Model: |
LM-L960 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Roll Forming |

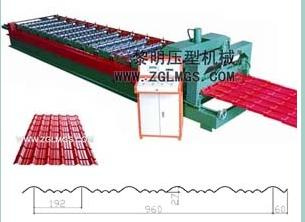

Product Description
Technical parameters:
1. Material spec: Colored steel sheet, galvanized steel sheet
2. Thicknedd of coil sheet: 0.4-0.8mm
3. Main motor powder: 5.5 KW
4. Forming speed: 16m/min
5. Hydraulic pressure: 10-12 Mpa
6. Quantity of stands: About 12groups
7. Hydraulic station power: 3 KW
8. Controlling system: PLC
9. Index error of length: 10m-2mm
10. Total weight: About 3.2 T
11. Voltage: 380V 3 phase 60Hz or at buyer`s requirement.
Liming Stamping Form Machine Manufactured Co., is a leading manufacturer for steel plate coiling machinery, roll-forming and automatic production lines. The products are mainly used in steel structure industry for producing C&Z shape purlin, load-bearing plate of buildings, wall and roof protective structure colorful steel plate, thermal insulation; Colorful decorating and protecting steel plates for high-grade steel structure residences; Environment industry anode plate and kathode plate lines for removing dust; Traffic-transport industry freeway guardrail plate, vehicle roll-forming materials; Logistics. Goods shelf pillar, holding beam; Cable bridge, Cabinet pillar and others collorary thin wall roll-forming materials serials-such as goods shelf board, kinds of cabinet screen plate. Then, it can also supply kinds of line of uncoiler, leveler, slitting recoiler, cut-to-length shear stacker.
Liming has advanced production equipment. Engineering personnel and technicians of Bohai are rich in experience of designing, developing, and manufacturing of machineries, They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high efficiency, high flexibility and low production cost.
