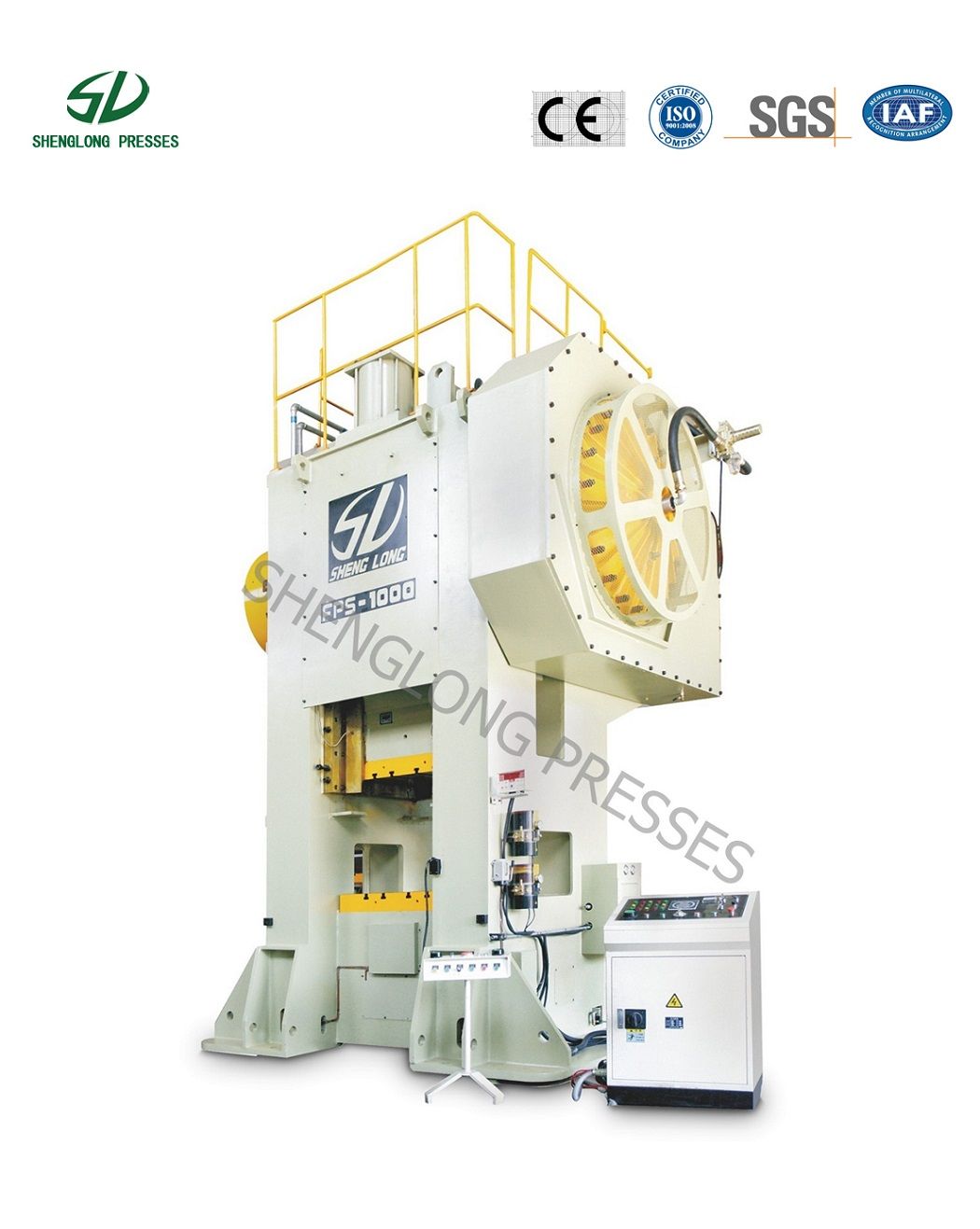

Straight Side High Speed Hot Forging Press (FPS SERIES 10000kN)
| Price: |
US $ 1-403125/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
FPS 1000 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Bolster/Bed Area (mm): |
1120X1050 |
| Slide Area(mm): |
950X800 |
Product Description
FPS Series Features:·Forced automatic lubrication system,bearing temperature monitoring system.·Press loading is monitored on every cycle with overload cut-out,to protect press and tooling.·Safety control circuit, acccording to international industry standards.

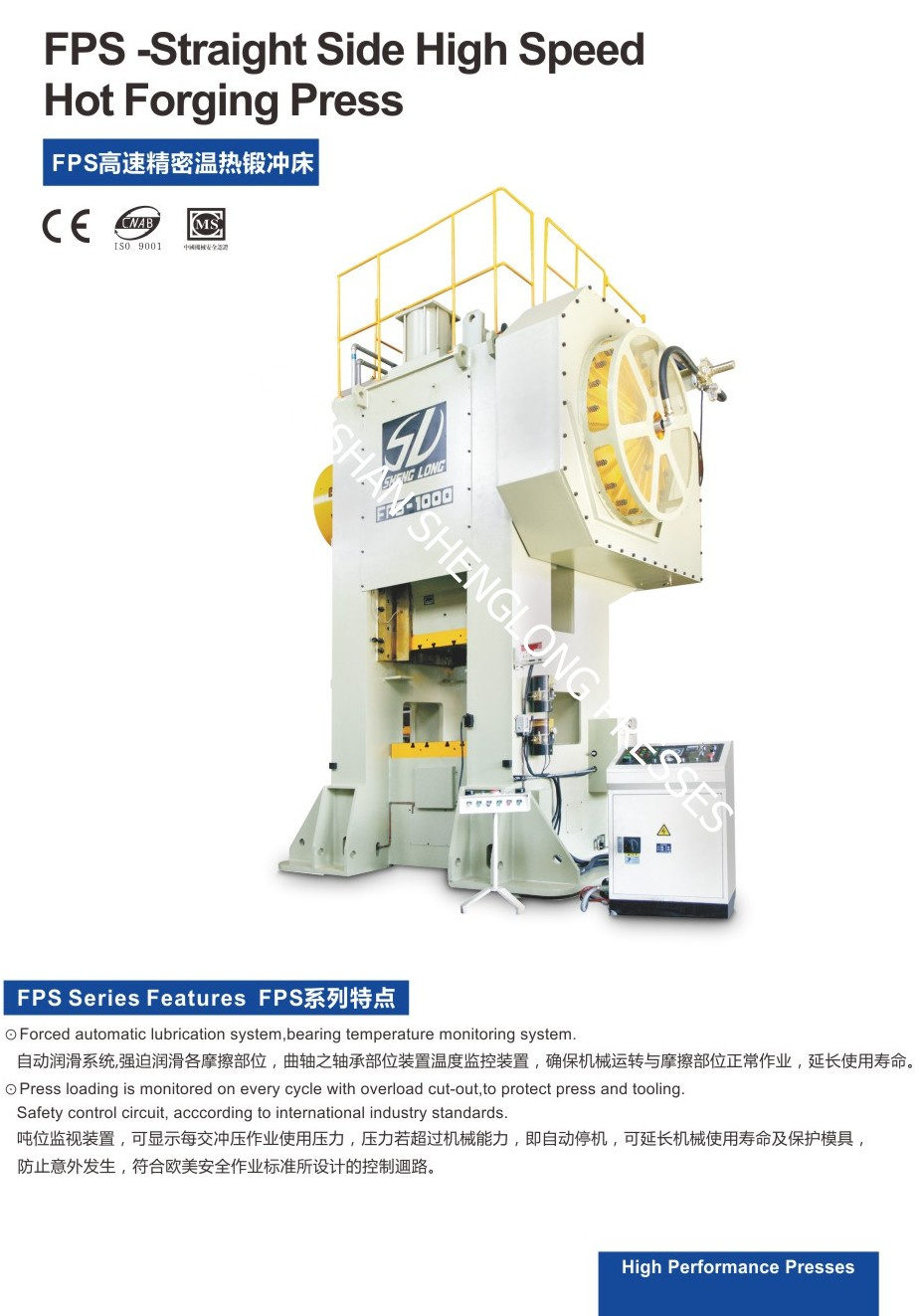

| FPS -Straight Side High Speed Hot Forging Press |

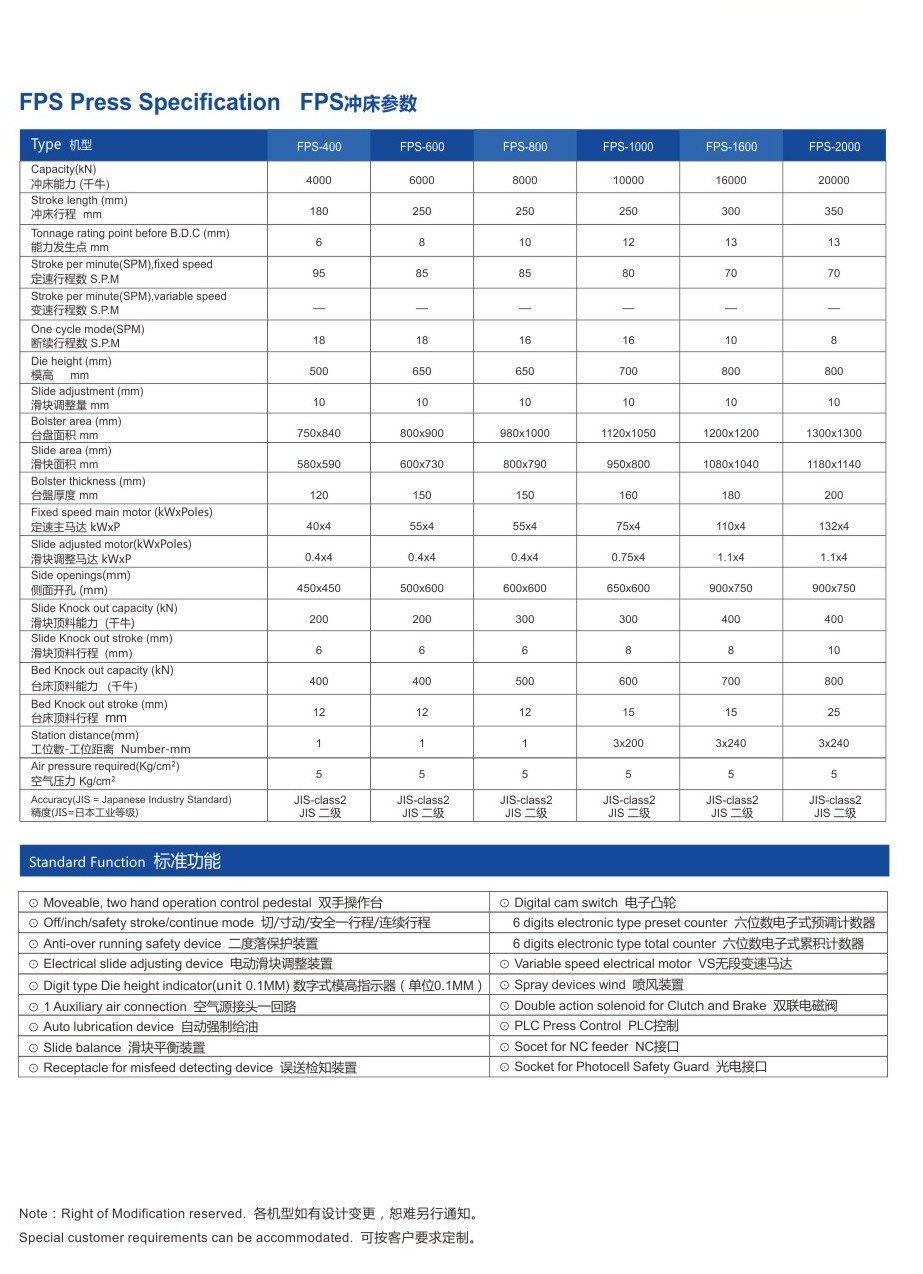

| FPS Press Specification |
|
| FPS1000 |
| Capacity/nominal Force | kN | 10000 |
| Stroke length | mm | 250 |
| Tonnage rating point before B.D.C | mm | 12 |
| Stroke per minute , fixed speed | SPM | 80 |
| Stroke per minute , variable speed | SPM | - |
| One cycle mode | SPM | 16 |
| Die height | mm | 700 |
| Slide adjustment | mm | 10 |
| Bolster area | mm | 1120x1050 |
| Slide area | mm | 950x800 |
| Bolster thickness | mm | 160 |
| Fixed speed main motor | kWxPoles | 75x4 |
| Slide adjustment motor | kWxPoles | 0.75x4 |
| Side openings | mm | 650x600 |
| Slide Knock out capacity | TONs | 30 |
| Slide Knock out stroke | mm | 8 |
| Knock out capacity | TONs | 15 |
| Knock out stroke | mm | 60 |
| No# of Stations x pitch | mm | 3x200 |
| Air pressure required | Kg/cm2 | 5 |
| Accuracy (JIS = Japanese Industry Standard) | - | JISclass2 |
| Standard Function |
|
| ·Off/inch/safety stroke/continue mode | ·Moveable, two hand operation control pedestal |
| ·Anti-over running safety device | ·Digit type Die height indicator(unit 0.1MM) |
| ·Electrical slide adjusting device | ·Double action solenoid for Clutch and Brake |
| ·1 Auxiliary air connection | ·Receptacle for misfeed detecting device |
| ·Auto lubrication device | ·Variable speed electrical motor |
| ·Slide balance | ·Digital stroke sensor |
| ·PLC Press Control | 6 digits electronic type preset counter |
| ·Socket for NC feeder | 6 digits electronic type production counter |
| ·Socket for Photocell Safety Guard | ·Spray air device |
Shenglong Presses" is a long established Chinese company from 1982. We are business partner of Germany Philmut GmbH.
We design and manufacture a wide range of Mechanical Presses in the capacity range 50- 4500 tons. There are available for punching, pressing, blanking as well as cold and hot forging operations. Our presses are widely used by our customers for the production of parts for auto, home appliance and electrical/electronic industries.
At Shenglong we combine the assurance of good build quality, achieved with our highly skilled and experienced work force, together with an excellent design team, equipped with modern 3D CAD/FEA design, construction and verification methods. This winning combination provides you, the customer, with many benefits:
· Precision slide guiding systems.
· Press Frames are robust, well finished, well proven and stress relieved with heat treatment.
· Slides are precision machined on site, from high grade SG iron castings or welded steel construction.
· In-house CNC Machining centers and 3D measuring system can handle the largest press frames.
· Assured build quality from highly skilled craftsmen, in spacious, clean, well equipped assembly bays.
· Well proven Hydraulic Overload Protection, mainly using Japanese Showa Seiki Valves
· ISO 9001 / CE Approvals.
· Accuracy of the presses complies with German DIN8651 standard.
· Wide range of optional extras available and special customer requirements can be accommodated.
· Efficient, cost effective for manufacturing.
In short we offer you: Function, Reliability and Performance.
