Bolster/Bed Area (mm):
750X840
Slide Area(mm):
580X590
Product Description

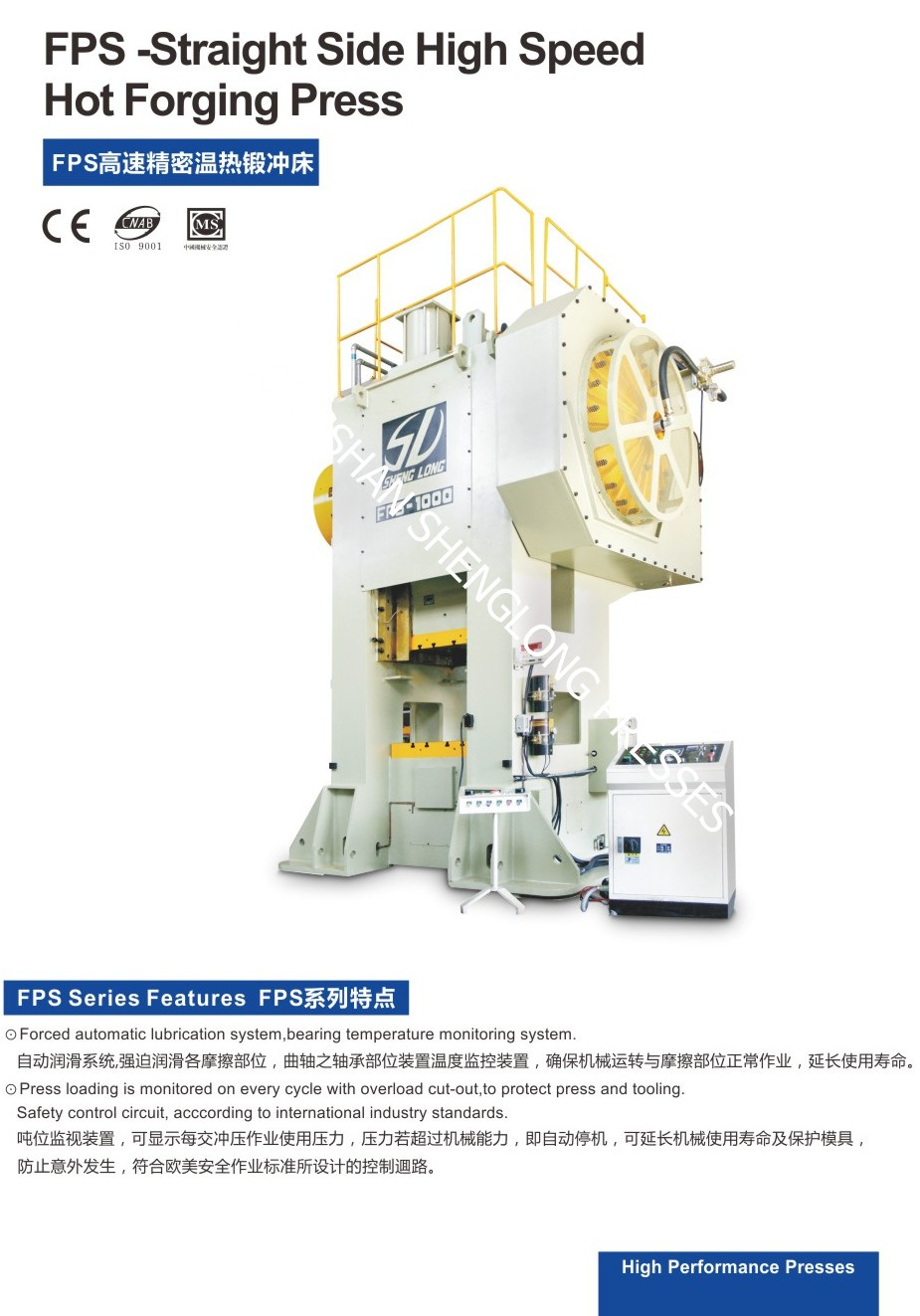

FPS Series Features:
·Forced automatic lubrication system,bearing temperature monitoring system.
·Press loading is monitored on every cycle with overload cut-out,to protect press and tooling.
·Safety control circuit, acccording to international industry standards.

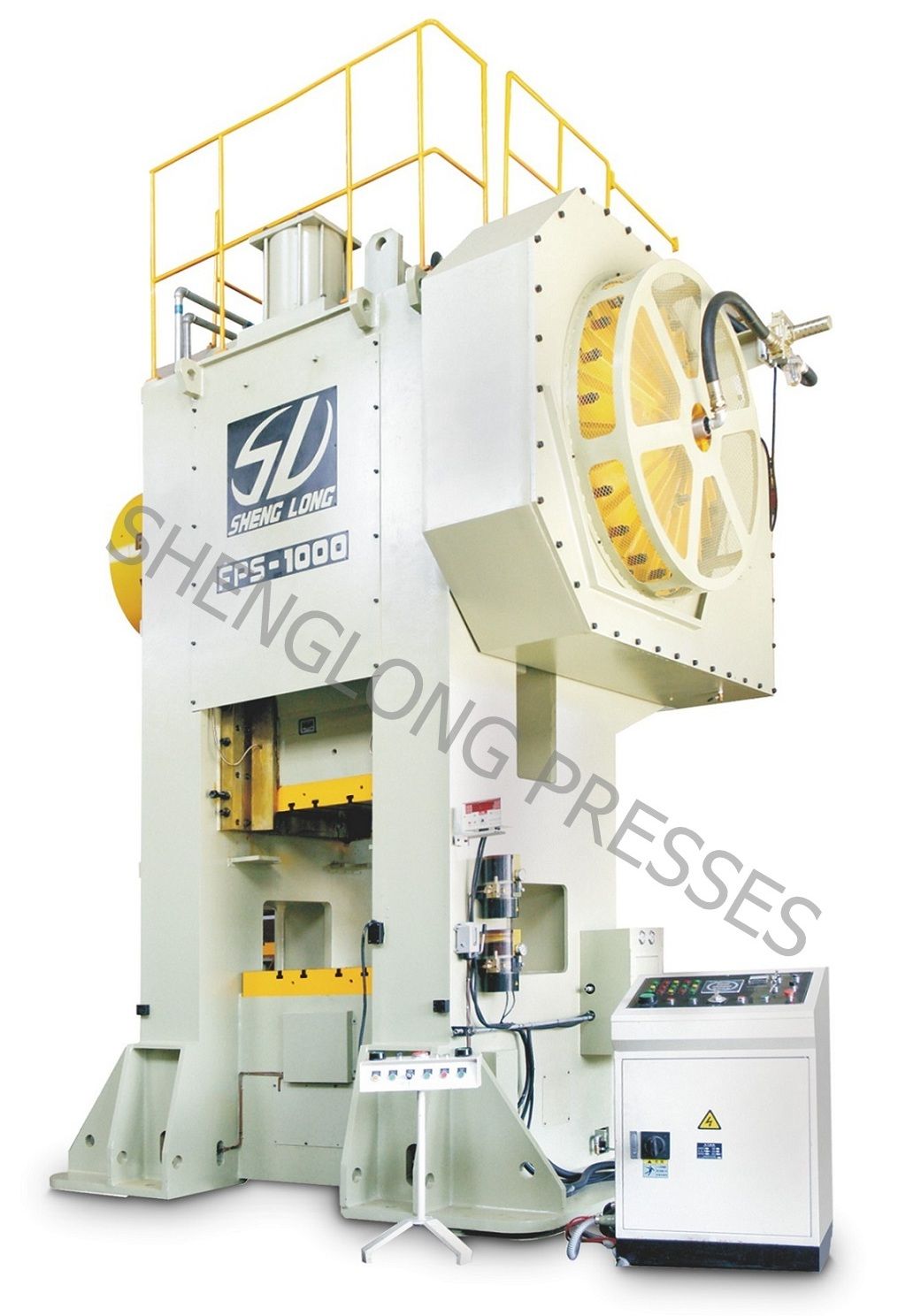

FPS -Straight Side High Speed Hot Forging Press

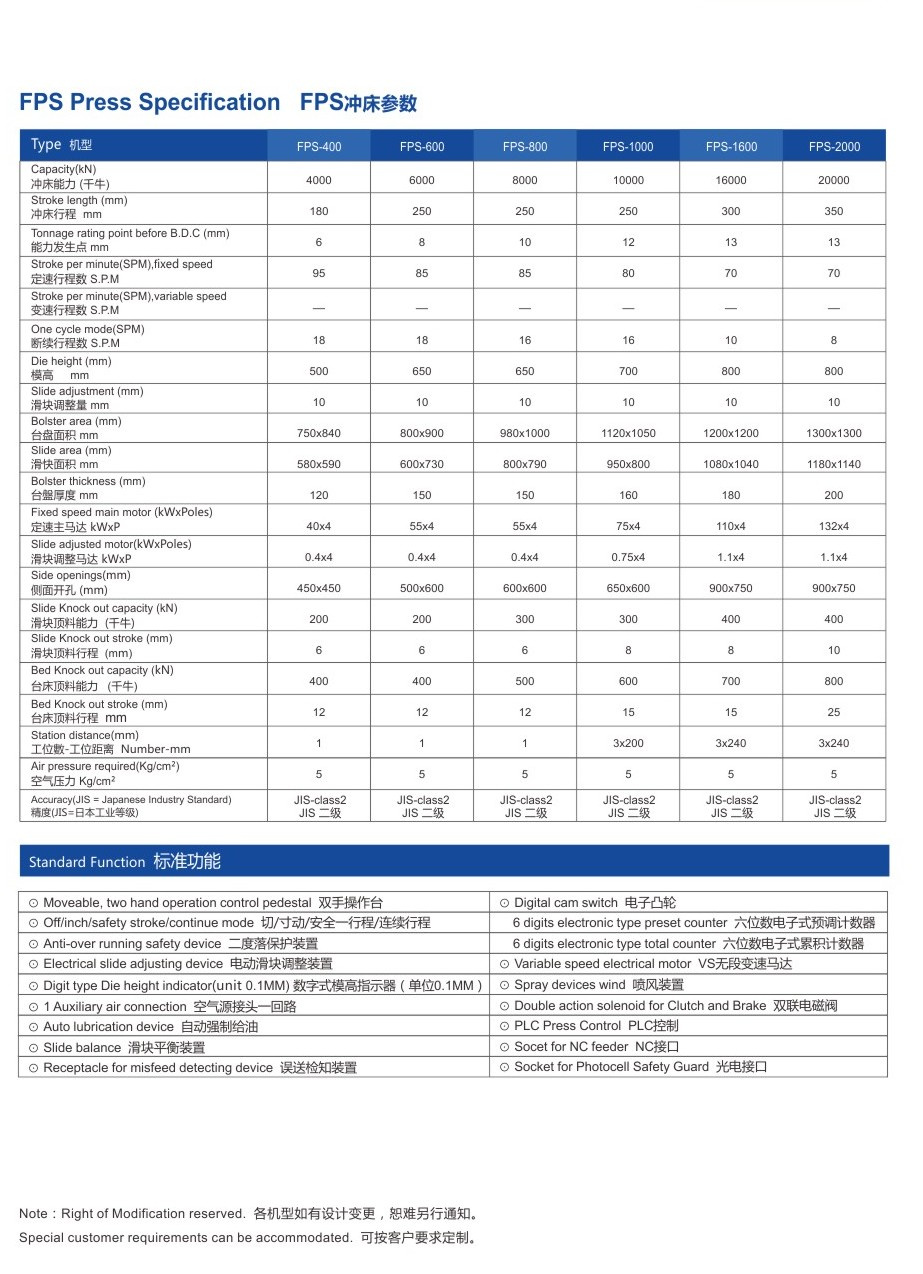

FPS Press Specification
FPS400
Capacity/nominal Force
kN
4000
Stroke length
mm
180
Tonnage rating point before B.D.C
mm
6
Stroke per minute , fixed speed
SPM
95
Stroke per minute , variable speed
SPM
-
One cycle mode
SPM
18
Die height
mm
500
Slide adjustment
mm
10
Bolster area
mm
750x840
Slide area
mm
580x590
Bolster thickness
mm
120
Fixed speed main motor
kWxPoles
40x4
Slide adjustment motor
kWxPoles
0.4x4
Side openings
mm
450X450
Slide Knock out capacity
TONs
20
Slide Knock out stroke
mm
6
Knock out capacity
TONs
12
Knock out stroke
mm
40
No# of Stations x pitch
mm
1
Air pressure required
Kg/cm2
5
Accuracy (JIS = Japanese Industry Standard)
-
JISclass2
Standard Function
·Off/inch/safety stroke/continue mode
·Moveable, two hand operation control pedestal
·Anti-over running safety device
·Digit type Die height indicator(unit 0.1MM)
·Electrical slide adjusting device
·Double action solenoid for Clutch and Brake
·1 Auxiliary air connection
·Receptacle for misfeed detecting device
·Auto lubrication device
·Variable speed electrical motor
·Slide balance
·Digital stroke sensor
·PLC Press Control
6 digits electronic type preset counter
·Socket for NC feeder
6 digits electronic type production counter
·Socket for Photocell Safety Guard
·Spray air device
Shenglong Presses" is a long established Chinese company from 1982. We are business partner of Germany Philmut GmbH.
We design and manufacture a wide range of Mechanical Presses in the capacity range 50- 4500 tons. There are available for punching, pressing, blanking as well as cold and hot forging operations. Our presses are widely used by our customers for the production of parts for auto, home appliance and electrical/electronic industries.
At Shenglong we combine the assurance of good build quality, achieved with our highly skilled and experienced work force, together with an excellent design team, equipped with modern 3D CAD/FEA design, construction and verification methods. This winning combination provides you, the customer, with many benefits:
· Precision slide guiding systems.
· Press Frames are robust, well finished, well proven and stress relieved with heat treatment.
· Slides are precision machined on site, from high grade SG iron castings or welded steel construction.
· In-house CNC Machining centers and 3D measuring system can handle the largest press frames.
· Assured build quality from highly skilled craftsmen, in spacious, clean, well equipped assembly bays.
· Well proven Hydraulic Overload Protection, mainly using Japanese Showa Seiki Valves
· ISO 9001 / CE Approvals.
· Accuracy of the presses complies with German DIN8651 standard.
· Wide range of optional extras available and special customer requirements can be accommodated.
· Efficient, cost effective for manufacturing.
In short we offer you: Function, Reliability and Performance.
