| Prod Model: |
ZYYX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Size: |
11000*1700*2000mm |
| Certificate: |
CE |
| Machines Weight: |
About 10t |
| Rollers Material: |
No.45 Forged Steel with Hard Chrome |
| Cutter Material: |
Cr12 Mould Steel with Quench Treatment |
| Cutting Style: |
Automatic Cut to Length |
| Shafts For Rollers: |
Grand Twice, 72mm Diameter Solid Steel |
| Quality System: |
ISO9001 |
| Guarantee: |
First Year Free, Lifetime Services |
| Cotrol System: |
Mitsubishi PLC & Converter |
| Forging Forming Method: |
Cold Roll Forming |
Product Description

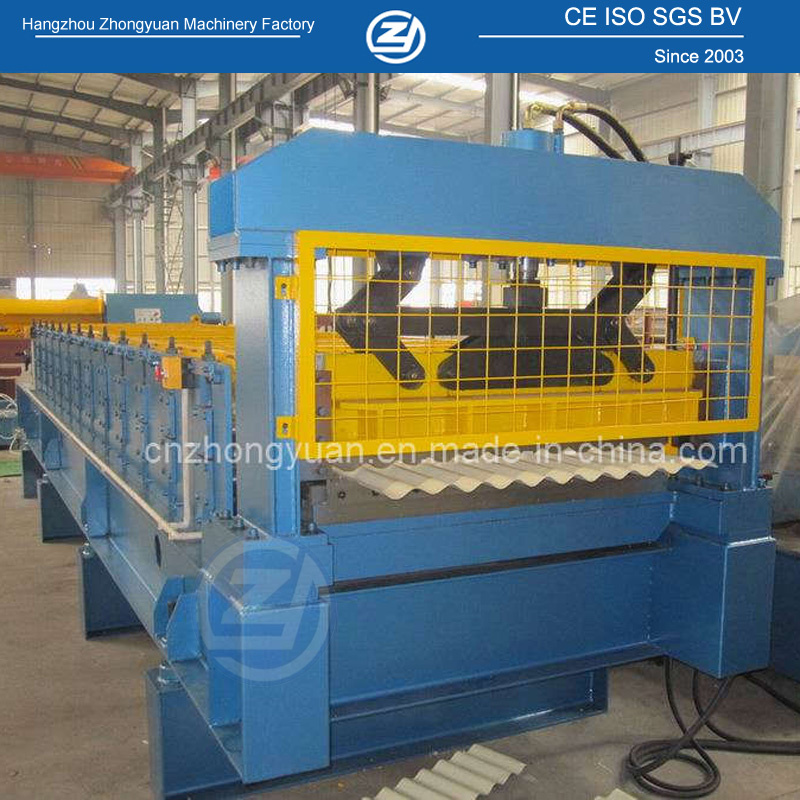

Supply China Corrugated Roll Forming Machine
Why choose this corrugated roll forming machine?
1. Designed by 15 years experienced R&D members with lifetime seivices
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.
Machine spec.
1. Size: about 11*1.7*2m (L*W*H)
2. Weight: About 9ton
3. Color: Make-to-order
4. Forming Speed: 15m/min.
5. Power : 380V/3Phase/ 50Hz
6. Main motor power: 5.5Kw(Depend on final design)
7. Decoiler Max. Capacity: 5000kgs
8. Hydraulic station power: About 2.2Kw (Depend on final design)
9. Control system: Mitsubishi PLC with touch screen
10. Cutting length: Cut-to-length
Technical Parameters
| Supply China Corrugated Roll Forming Machine |
| Item | Specification |
| Material | Type | Pre-painted steel coil |
| Thickness (mm) | 0.4-0.7 |
| Yield strength (mpa) | 235-345 |
| Roller material | 45#Chrome steel |
| Forming speed(m/min) | About 15 |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mold steel |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power (kw) | 5.5 kw (Depend on final design) |
| Hydraulic station power | 2.2 kw (Depend on final design) |
| Total power (kw) | 7.7 kw |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs
(can be increased to be 10T) |
| Machine`s size | About 11*1.7*2m
(Depend on final design) |
Components of machine
Decoiler
(manual/ hydraulic decoiler for option) | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table (auto. Stacker for option) | 1.5m/ pc, 2 pcs |
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table
We customize your machines!
To customize machine, we would love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend the lacol popular profile for you----Just let us know your country!
Why us?
1. Manufacturing roll forming machine since 2003
2. With ISO,SGS,BV and CE certificate
3. 2 year quality warranty
4. Introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
5. Design by 15 years experienceD R&D members.
6. Technician can be sent to your factory to install the machine and train your workers
7. Export to more than 20 countries.
Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
