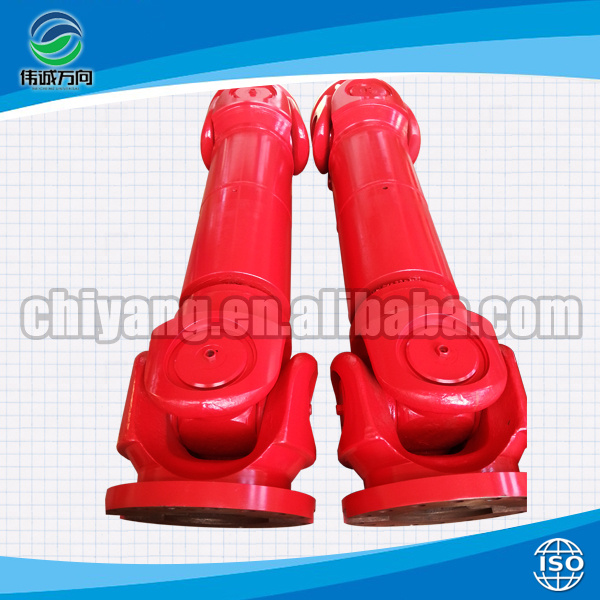

SWC Flexible Shaft / Cross Shaft / Cardan Shaft

Prod Model:	SWC SWP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Steel,Crmo , Crmoti
Dimension:	Customized
Brand Name:	Wc
Surface Finish:	Heat Treatment, Rust Prevention
Production Standard:	According Drawings to Manufacturing
Delivery Time:	20 Days
OEM / ODM:	Profressional OEM/ODM
Packaging:	Usually Packed by Wooden/Paper Box
Application:	Large Scale Mechanical Equipments
Place Of Origin:	Jiangsu China
Load:	Drive Shaft
Stiffness & Flexibility:	Flexible Shaft
Axis Shape:	Straight Shaft
Shaft Shape:	Real Axis

Product Description

1. Product specification

SWC Flexible Shaft / Cross Shaft / Cardan Shaft

1), advance technology
2), high accuracy and closely structure
3), high quality, the best price and good services
4), Strictly quality control by ISO9001: 2008.
5), with R&D Dept, OEM is available

2. About our advantages
1). With 10 years experience and professional OEM / ODM
2). Advance technology and R&D Dept with rich experience
3). Delivery in time
4). Competitive and reasonable price
5). High reputation

3. About our products



4. About factory

Our factory specializes in processing and trading of SWC type cardan shaft, located in the famous tourist city - Wuxi, China.
Our company has accumulated rich experience in the production and absorbed foreign advanced technology. We
Always adhere to the ISO9001 quality system to control the quality, production process from the perspective of the detail specification. We persistent innovation, optimization of structure. And high quality products have enjoyed high reputation especially in Germany and Middle East, and have been widely supplied to domestic enterprises.

Welcome to contact us, if you are interested in products and want furhter details.

Model	Type Data Item	SWC 165	SWC 180	SWC 200	SWC 225	SWC 250	SWC 265	SWC 285	SWC 315	SWC 350	SWC 390
A	L	740	800	900	1000	1060	1120	1270	1390	1520	1530
	LV	100	100	120	140	140	140	140	140	150	170
	M(kg)	65	83	115	152	219	260	311	432	610	804
B	L	480	530	590	640	730	790	840	930	1000	1010
	M(kg)	44	60	85	110	160	180	226	320	440	590
C	L	380	420	480	500	560	600	640	720	780	860
	M(kg)	35	48	66	90	130.0	160	189	270	355	510
D	L	520	580	620	690	760.0	810	860	970	1030	1120
	M(kg)	48	65	90	120	173.0	220	250	355	485	665
E	L	800	850	940	1050	1120	1180	1320	1440	1550	1710
	LV	100	100	120	140	140.0	140	140	140	150	170
	M(kg)	70	92	126	168	238.0	280	340	472	660	886
Tn(kN. M)		16	22.4	31.5	40	63	80	90	125	180	250
TF(kN. M)		8	11.2	16	20	31.5	40	45	63	90	125
Β(°)		15	15	15	15	15	15	15	15	15	15
D		160	180	200	225	250	265	285	315	390	440
Df		160	180	200	225	250	265	285	315	390	440
D1		137	155	170	196	218	233	245	280	345	390
D2(H9)		100	105	120	135	150	160	170	185	235	255
D3		108	114	140	159	168	180	194	219	273	299
Lm		95	105	110	125	140	150	160	180	215	260
K		16	17	18	20	25	25	27	32	40	42
T		4	5	5	5	6	6	7	8	8.0	10.0
N		8	8	8	8	8	8	8	10	10	16
D		15	17	17	17	19	19	21	23	25	28
B		20	24	32	32	40	40	40	40	70	80
G		6.0	7.0	9.0	9.0	12.5	12.5	12.5	15.0	18.0	20.0
MI(kg)		2.57	3	3.85	3.85	5.17	6	6.75	8.25	13	18.5
Flange Bolt	Size	M14	M16	M16	M16	M18	M18	M20	M22	M24	M27
	Tightening torque (Nm)	180	270	270	270	372	372	526	710	906	1340

FAQ

Q1: What is your lead time?
A1: Within 20 days after receiving payment

Q2: Do you offer OEM service?
A2: Yes. We can manufacture and design any specific product customer required.

Q3: How we do quick response to customer inquiry?
A3: Professional lines, widely supplier sourcing and we will try our best to reply you at first
Time!

Q4: How was your after-sales service?
A4: We have plenty of inventory, all products accessories, ten years supply guarantee!

Q5: I don't know what to choose what types of cardan shaft and how to
Do?
A5: We have a strong design team, to provide you with non - standard custom scheme of
Cardan shaft! Just contact us!
