| Prod Model: |
SWC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Universal |
| Load: |
Drive Shaft |
| Stiffness & Flexibility: |
Flexible Shaft |
| Axis Shape: |
Crankshaft |
| Shaft Shape: |
Stepped Shaft |
Product Description

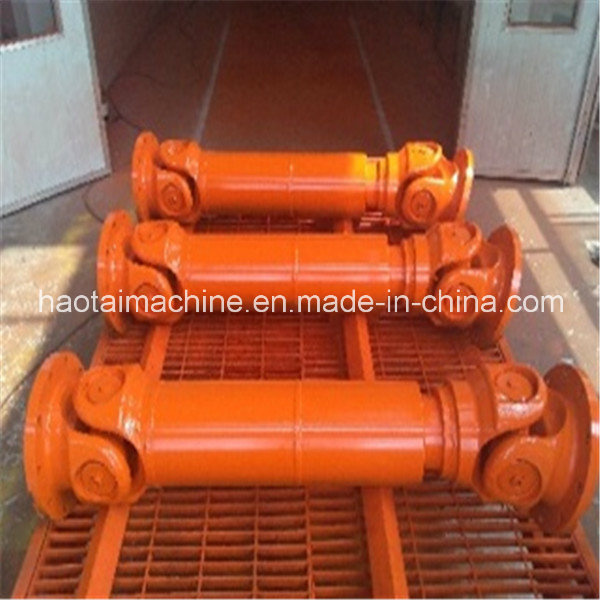

SWC universal joint cardan shaft
Specifications
1. Universal drive shaft
2. Bearing heavier weight of cardan drive shaft
3. Reasonable configuration of flexible drive shaft
4. No friction with small universal joint shaft
5. CE & ISO certificate of material used in drive shaft .
Brief introduction
We offer Cardan shaft coupling that includes universal joint shaft couplings - swc type, universal joint shaft couplings - swp type, universal joint shaft couplings - swz type, cross for universal joint shaft couplings.
Heavy duty cardan shaft universal joint drive shaft advantage :
1.Excellent performance, long using life and competitive price.
2.Heat resistant&Distortion resistant
3.High intensity and rigidity.
4.Meet Iso9001: 2008 quality system
5.Your sample request are welcomed
6.With own R&D dept., OEM orders are available
Quality Control:
1.Chemical Composition confirm after Ingot
2.Hardness after Heat Treatment
3.Final Dimension Check
Quality Assurance Document:
1.Item Testing Plan will be submit to customer in 1 day after contract signed.
2.All the Q.A Document as per Client Requirement will be submitted before final product shipped out.
Packing and shipping:
1 Prevent from damage.
2. As customers' requirements, in perfect condition.
3. Delivery : As per contract delivery on time
4. Shipping : As per client request. We can accept CIF, Door to Door etc. or client authorized agent we supply all the necessary assistant
| Type | Design | SWC-1 | SWC-1 | SWC-1 | SWC-1 | SWC-1 | SWC-1 | SWC-1 | SWC-1 | SWC-1 | SWC-1 |
| Data |
| Item | 58 | 65 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | 225 |
| A | L | 255 | 285 | 335 | 385 | 445 | 500 | 590 | 640 | 775 | 860 |
| Lv | 35 | 40 | 40 | 45 | 55 | 80 | 80 | 80 | 100 | 120 |
| B | m(kg) | 2.2 | 3 | 5 | 6.6 | 9.5 | 17 | 32 | 40 | 76 | 128 |
| L | 150 | 175 | 200 | 240 | 260 | 295 | 370 | 430 | 530 | 600 |
| C | m(kg) | 1.7 | 2.4 | 3.8 | 5.7 | 7.7 | 13.1 | 23 | 28 | 55 | 98 |
| L | 128 | 156 | 180 | 208 | 220 | 252 | 340 | 348 | 440 | 480 |
| m(kg) | 1.3 | 1.95 | 3.1 | 5 | 7 | 12.3 | 22 | 30 | 56 | 96 |
| Tn(kN·m) | 150 | 200 | 400 | 750 | 1250 | 2500 | 4500 | 8400 | 16000 | 22000 |
| Tf(kN·m) | 75 | 100 | 200 | 375 | 630 | 1250 | 2250 | 4200 | 8000 | 11000 |
| β(°) | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 25 | 25 | 25 |
| D | 52 | 63 | 72 | 92 | 100 | 112 | 142 | 154 | 187 | 204 |
| Df | 58 | 65 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | 225 |
| D1 | 47 | 52 | 62 | 74.5 | 84 | 101.5 | 130 | 155.5 | 170 | 196 |
| D2(H9) | 30 | 35 | 42 | 47 | 57 | 75 | 90 | 110 | 125 | 140 |
| D3 | 38 | 38 | 40 | 50 | 60 | 70 | 89 | 102 | 114 | 140 |
| Lm | 32 | 39 | 45 | 52 | 55 | 63 | 85 | 87 | 110 | 120 |
| k | 3.5 | 4.5 | 5.5 | 6 | 8 | 8 | 10 | 12 | 14 | 15 |
| t | 1.5 | 1.7 | 2 | 2.5 | 2.5 | 2.5 | 3 | 4 | 4 | 5 |
| n | 4 | 4 | 6 | 4 | 6 | 8 | 8 | 8 | 8 | 8 |
| d | 5.1 | 6.5 | 6.5 | 8.5 | 8.5 | 10.5 | 13 | 15 | 17 | 17 |
| MI(kg) | 0.14 | 0.16 | 0.38 | 0.38 | 0.53 | 0.53 | 0.87 | 0.87 | 1.65 | 2.14 |
| Flange bolt | Size | M5 | M6 | M6 | M8 | M8 | M10 | M12 | M14 | M16 | M16 |
| Tightening torque(Nm) | 7 | 13 | 13 | 32 | 32 | 64 | 110 | 180 | 270 | 270 |
Jiangsu Haotai is a professional manufacturer & exporter of smelting equipment, continuous casting machine, freeze dryer, pulverizer, auxiliary equipment for steel mill, spare parts for these equipments, metal baler, capsule filling machine, packing machine and others.
Our main products include steel-making production line (Including induction furnace, EAF, SAF, LF, VOD(VD), AOD, gas fired furnace, small induction furnace, continuous casting machine, roling mill), freeze dryer, lifting magnet, universal shaft, capsule filling machine, packing machine, cryogenic pulverizer, universal pulverizer, homeuse grinder machine...More detailed information please check our product.
We emphasize the internal management of enterprise and the advance of science and technology, and insist on the strategic policy of adapting ourselves to the market and participating in the competition through union with manufactures.
We take care of business, provide high-quality products and best service, our products have been enjoying high reputation in 20 countries around the world.
We are willing to cooperate with friends of various circles at home and abroad, and March forward hand in hand to create brilliance again. If you're not using us now, we invite you to give us a try. You and your customers will be glad you did.
Please contact us for all orders and inquiries. Thank you for your business! ! !
