Home Casting & Forging Products TDC Flange Forming Machine (MHTDF-12/15/15D)

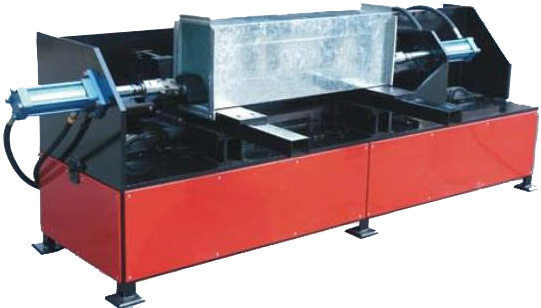

TDC Flange Forming Machine (MHTDF-12/15/15D)

TDC Flange Forming Machine (MHTDF-12/15/15D)
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: MHTDF-12/15/15D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness: 0.5-1.2/0.8-1.5/0.8-1.5mm
Motor: 2.2/3/4kw
Height Of Flange: 35+0.5/35+0.5+35+0.5mm
Weight: 1400/1800/3000
Dimension: 2740*650*1100 2800*760*1200 2800*2200*1200
Type: Tdc Forming Machine
Forging Forming Method: Roll Forging

Product Description

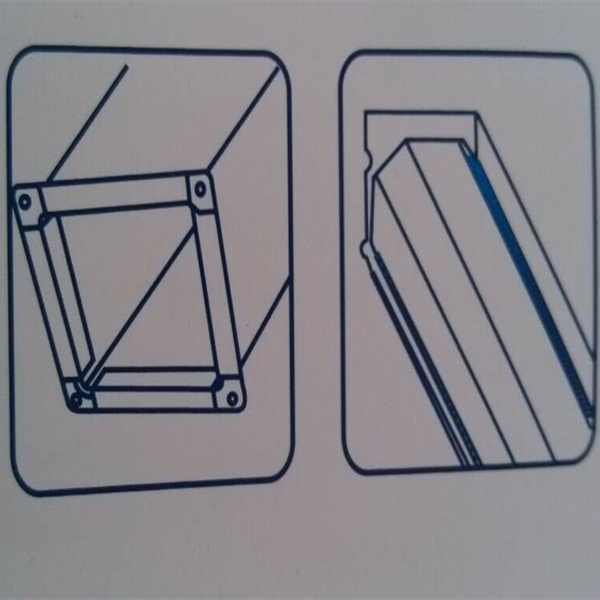

There are mainly two kinds of flange systes of duct connection: American standard and Euroean standrad, which is the TDC/TDF flange, recommended by SMACNA association and LT/T mate flange as well as improved GDF/PDF flange recommended by UP HVAC association. TDF unit is one of the two univerdal flange making systems in the world, with low cost, well-seal and easy-fabrication, specially suitable to produce a duct with medium section area and applied in alrge-scale industrial manufacture. As a flexible machine, FDF will adapt to an auto line with a pittsburgh lock machine, notcher and bending machine. It may also be used on site.


Thickness0.5-1.2/0.8-1.5/0.8-1.5mm
Motor2.2/3/4kw
Height of Flange35+0.5/35+0.5+35+0.5mm
Weight1400/1800/3000
  Dimension2740*650*1100
2800*760*1200
2800*2200*1200

Our company is to supply steel processing equipment, such as tube mill, cut to length, slitter, cold rolling mill, duct production machines, press braker, shear, and other steel equipment. Our machine has high quality and competitive price.

With our technical innovation, our machine can reduce power consumption, increase efficiency.

We export machines to South East Asia, India, USA, Middle East area, Europe, Africa, etc. Our goal is to meet customer requirement, increase customer production rate and accuracy, and give customer more value. Business will make both customer and us win.
