The Fishtails Making Machine (AB-F3)

Name: The Fishtails Making Machine (AB-F3)
Brand: china-castingforging.com
SKU: 618570422
Availability: InStock
Rating: 4.3 (138 reviews)

Price:	US $ 900/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Shijiazhuang Anbang Machine Make Co., Ltd.

Showroom Product Company Profile

Prod Model:	AB-F3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	1.0cbm
Forging Forming Method:	Mold Forging

Product Description

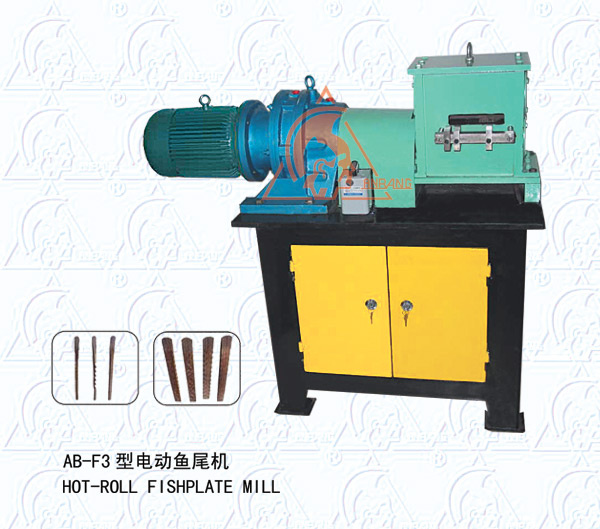

AB-F3 Hot-Roll Fishplate Mill Machine, this machine is used for rolling the wrought iron material into fish tail. It adopts advanced deceleration device and sepcial connetion. And this machine is running smoothly, simple, fast, Wide range of processing, it will describe brighter beautiful ccolor for the iron skill project.

ProductType	AB-F3 Type Hot-Roll Fishplate Mill
WorkingAbility	Flat steel≤ 8mm× 50mm; Round steel≤ φ 16mm; Square steel≤ 16mm× 16mm
BasicShaftRotationSpeed	10r/min
ElectricMotorPerformance	Power: 2.2 KW (class 6); Electric voltage: 380V; Frequency: 50HZ
MainFeatures	1. There is no need to beat flat the materials to process, thus the material end having been heated we can finish its fishtail decoration production directly by this machine. The machined material end becomes wider and thinner with the thickness not more than 2mm. 2. Made with cycloidal pinwheel reduction box the machine has large torque. Special way is adopted for the torque transmission between the gear box and working case, ensuring smooth and reliable mechanical operation. 3. The imported material clamp apparatus has the following advantages: being adjustable, flat and straight guide, and the finished fishtail veining being straight. 4. On the back holdup plate of the machine, there is a rolling size localization device. We can according to the product requirement select the rolling length localization size and achieve the optimum result. 5. Wen we process 10mm or more material, we can use the coarse rolling mechanism of the machine and then get the beautiful moulding fishtail pattern. 6. The machine has large processing range and high production efficiency, and can roll 300 pieces of 8× 40mm flat iron parts per hour. The roller material has very good quality and long lifespan, and each roller can roll at least 100 thousand pieces.
ExternalDimension	length× width× height=1165mm× 560mm× 1100mm
NetWeight	350
GrossWeight	400

Shijiazhuang Anbang Machine Make Co., Ltd. is a professional manufacturer in producing iron craftwork and process equipment which founded in 1996. The whole series of manual, time and program controlled electric iron craft fitting machine sold well in more than 20 provinces of China and expand well markets in Europe, North America, Japan, South Korea and various countries of Southeast Asia. It is well received by home and broad customers. The equipment has got certain popularity and good reputation, and made a due contribution to the development of the iron craft trade.

Through 12 years' striving, An Bang has already developed into a standard mechanical processing enterprise with a large scale 185 acres occupation and 9000 square meter construction area. 170 employees, 21 scientific staff and more than 70 various large machines. In addition, the factory has mould making workshop, iron skill workshop, press and forge workshop, cast steel workshop. The factory can produce two main categories including 33 kinds of iron craft equipment, all kinds of iron mould and more than 1000 kinds of iron craft in shape of flowers and leaves, and iron craft semi-finished articles. We can produce all kinds of cast steel fitting, forged fitting, stamping, iron art component and iron art product. We can produce all kinds of wrought iron machine, wrought iron fitting, wrought iron product.

An Bang will devote itself to the iron craft's development of China, and our equipment is willing to be as the foundation for those who want to success in this trade.
