| Prod Model: |
AB-F4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
0.92cbm |
| Forging Forming Method: |
Mold Forging |
Product Description

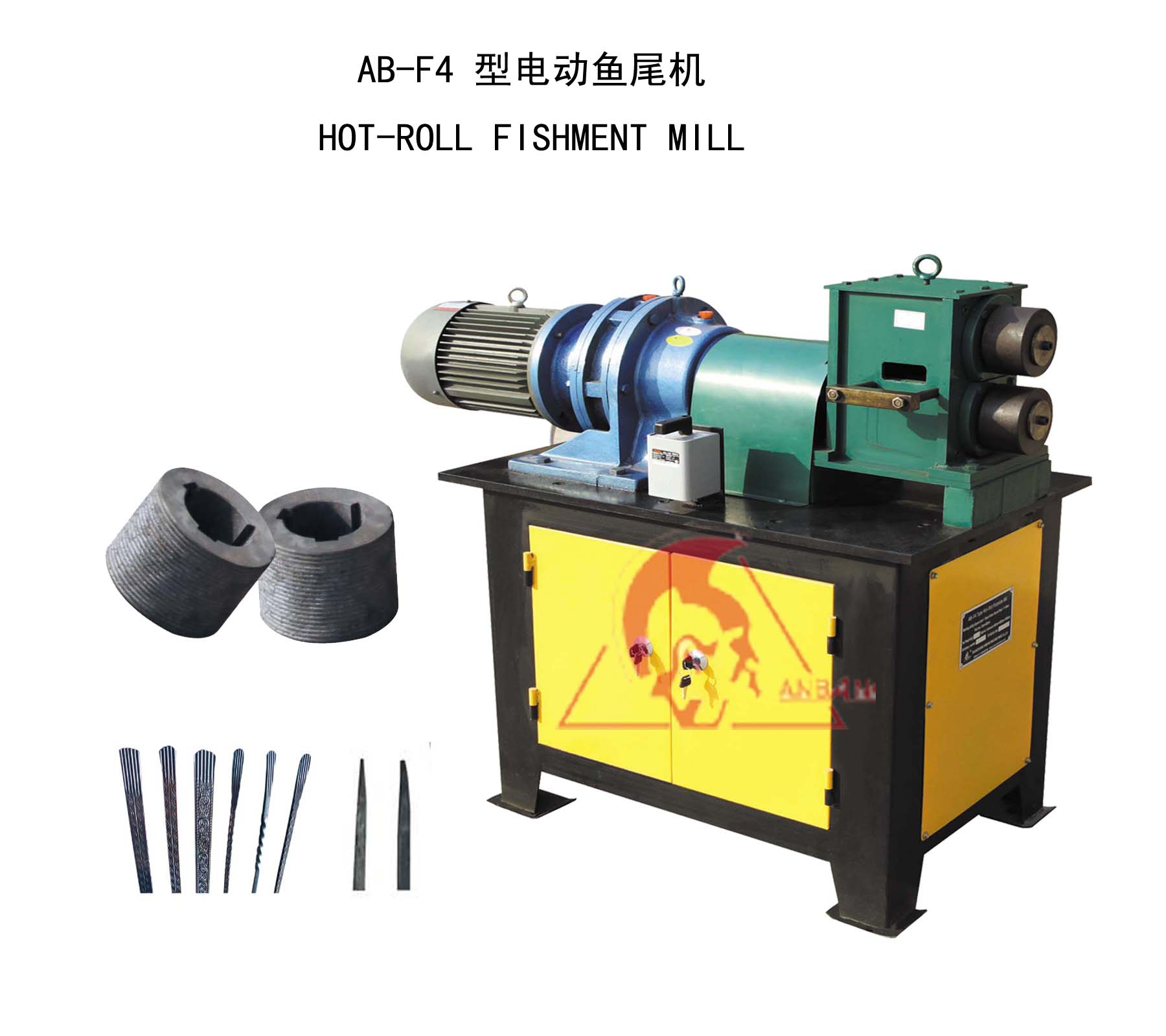

AB-F4 Electric Fishtails making Machine is the newest type machine in the result of our R & D trial and experienced-test. It is based on the improvement in the part of rolling material of AB-F3 type changed eccentric roller into eccentric shaft, three-fold in one roller in order to increase three working life than the others, the flat roller added in outer side can make the square bar and round bar be sharp points and pressed-flat. The Machine operating work is more convenience, also easy to change the rollers freely. There are two rollers(including thin -line and flat -line) with the machine on free cost( the other rollers can be made and chosen according to the customers' )
|
Max Work Ability |
SquareSteel |
≤ 16mm× 16mm |
|
Rquare Steel |
≤ Φ 16mm |
|
Flat Iron |
≤ 10mm× 60mm |
Motor Performance |
Power: 2.2W Voltage: 380V
Frequency: 50HZ |
Main Features |
1. It is not necessary to beat flat the bevel edge, and it can realize at one time molding. The molding material end becomes wider and thinner with the thickness no more than 2MM.
2. It used cyclonical two-speed reducer to enlarge torque. It adopts special way for the torque transmission between the gearbox and working case, ensuring smooth and reliable mechanical operation.
3. On the back holdup plate of the machine, there is a rolling size localization device. We can accord the product requirement select the rolling length localization size and achieve the optimum result.
4. When we process 12mm or more material, the flat roller added in outer side can make the square bar and round bar be sharp points
5. The machine type changed eccentric roller into eccentric shaft, three-fold in one roller in order to increase three working life than the others. |
|
N. W. |
290KGS |
|
G. W. |
340KGS |
Shijiazhuang Anbang Machine Make Co., Ltd. is a professional manufacturer in producing iron craftwork and process equipment which founded in 1996. The whole series of manual, time and program controlled electric iron craft fitting machine sold well in more than 20 provinces of China and expand well markets in Europe, North America, Japan, South Korea and various countries of Southeast Asia. It is well received by home and broad customers. The equipment has got certain popularity and good reputation, and made a due contribution to the development of the iron craft trade.
Through 12 years' striving, An Bang has already developed into a standard mechanical processing enterprise with a large scale 185 acres occupation and 9000 square meter construction area. 170 employees, 21 scientific staff and more than 70 various large machines. In addition, the factory has mould making workshop, iron skill workshop, press and forge workshop, cast steel workshop. The factory can produce two main categories including 33 kinds of iron craft equipment, all kinds of iron mould and more than 1000 kinds of iron craft in shape of flowers and leaves, and iron craft semi-finished articles. We can produce all kinds of cast steel fitting, forged fitting, stamping, iron art component and iron art product. We can produce all kinds of wrought iron machine, wrought iron fitting, wrought iron product.
An Bang will devote itself to the iron craft's development of China, and our equipment is willing to be as the foundation for those who want to success in this trade.
