| Prod Model: |
HDLW11S-50*3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 3-Rollers: |
Hydraulic Control |
| Pre-Bending Function: |
High Efficiency |
| High Precision: |
CNC Control |
| ISO: 9001: 2000: |
Break-Proof Welded Construction |
| Rich Rolling Shapes: |
Roll Heat Treated |
| Emergency Stop System: |
Overload Protection |
| Whole Welded Chassis: |
Rolls Material: 42crmo |
| Easy To Operate: |
Once Circle Forming |
| Compact Structure: |
Easy to Correct Wrong Edge |
| Free Guidance: |
Leveling Easily |
| Forging Forming Method: |
Mold Forging |
Product Description

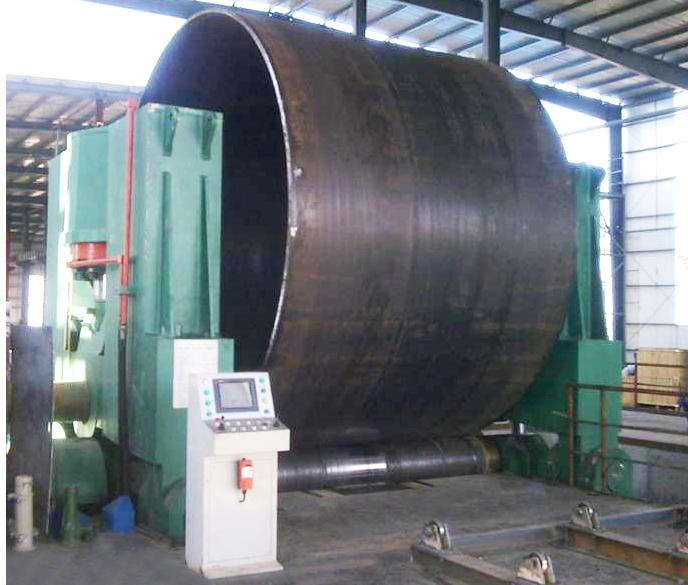

Upper roller universal plate rolling machine
Standard featurese:
1. Fully hydraulic power, more speed
2. Hydraulic motor driving all three rollers
3. Hydraulic turnover device(romove the product)
4. Front control board to control all of the machine
5. Digital monitor
6. Security emergency stop devices
7. Three press roll consists of three independent hydraulic motor driving
Model options
1. Hydraulic roller cone winding attachment
2. Brace perimeter security fence
3. CNC control system
4. Roller surface hardened
Advantages:
1) rolling products straightness, upper roll set drum-shaped, with side roller regulation, products straightness control within 1/2000, it is particular beneficial to small-diameter cylinders, ensure the following operations welding smoothly, guarantees welding quality.
2) use the rear bending process, eliminate curved toward the front of the dorsal horn, products roundness.
3) with the automated device, effectively preventing the wrong side of the occurrence.
4) use direct pressure on the end of the materials, it is convenient to controll the remaining straight edge.
|
HDLW11S technical parameters |
|
Model |
Max Pre-bending thickness(mm) |
Max bending thickness(mm) |
Diameter of theupper roller(mm) |
Max plate width(mm) |
Main motor power(kw) |
|
HDLW11S-8*1500 |
6 |
8 |
175 |
1500 |
3 |
|
HDLW11S-12*1500 |
10 |
12 |
245 |
1500 |
4 |
|
HDLW11S-10*2000 |
8 |
10 |
235 |
2000 |
4 |
|
HDLW11S-12*2000 |
10 |
12 |
250 |
2000 |
5.5 |
|
HDLW11S-16*2000 |
12 |
16 |
255 |
2000 |
7.5 |
|
HDLW11S-20*2000 |
16 |
20 |
260 |
2000 |
11 |
|
HDLW11S-10*2500 |
8 |
10 |
255 |
2500 |
5.5 |
|
HDLW11S-12*2500 |
10 |
12 |
270 |
2500 |
7.5 |
|
HDLW11S-16*2500 |
12 |
16 |
300 |
2500 |
11 |
|
HDLW11S-20*2500 |
16 |
20 |
330 |
2500 |
15 |
|
HDLW11S-25*2500 |
20 |
25 |
380 |
2500 |
18.5 |
|
HDLW11S-30*2500 |
25 |
30 |
410 |
2500 |
22 |
|
HDLW11S-35*2500 |
30 |
35 |
460 |
2500 |
30 |
|
HDLW11S-40*2500 |
35 |
40 |
500 |
2500 |
37 |
|
HDLW11S-25*3000 |
20 |
25 |
430 |
3000 |
22 |
|
HDLW11S-30*3000 |
25 |
30 |
450 |
3000 |
30 |
|
HDLW11S-35*3000 |
30 |
35 |
500 |
3000 |
37 |
|
HDLW11S-40*3000 |
35 |
40 |
540 |
3000 |
45 |
|
HDLW11S-50*3000 |
40 |
50 |
580 |
3000 |
55 |
|
HDLW11S-60*3000 |
50 |
60 |
650 |
3000 |
55 |
|
HDLW11S-70*3000 |
60 |
70 |
710 |
3000 |
75 |
|
HDLW11S-80*3000 |
70 |
80 |
760 |
3000 |
75 |
|
HDLW11S-100*3000 |
90 |
100 |
820 |
3000 |
90 |
|
HDLW11S-120*3000 |
100 |
120 |
860 |
3000 |
110 |
|
HDLW11S-125*3000 |
105 |
125 |
880 |
3000 |
110 |
|
HDLW11S-50*3500 |
40 |
50 |
620 |
3500 |
55 |
|
HDLW11S-60*3500 |
50 |
60 |
680 |
3500 |
75 |
|
HDLW11S-70*3500 |
60 |
70 |
740 |
3500 |
75 |
|
HDLW11S-80*3500 |
70 |
80 |
820 |
3500 |
75 |
|
HDLW11S-100*3500 |
90 |
100 |
860 |
3500 |
90 |
|
HDLW11S-60*4000 |
50 |
60 |
780 |
4000 |
75 |
|
HDLW11S-80*4000 |
70 |
80 |
860 |
4000 |
90 |
|
HDLW11S-100*4000 |
90 |
100 |
900 |
4000 |
90 |
|
HDLW11S-120*4000 |
100 |
120 |
990 |
4000 |
110 |
|
HDLW11S-160*4000 |
130 |
160 |
1260 |
4000 |
2*90 |
|
HDLW11S-200*4000 |
170 |
200 |
1480 |
4000 |
2*132 |
Nantong Shengli Heavy Machine Manufacturing Co., Ltd. is a professional machinery manufacturing company which is engaged in the research and development of rolling machines(W11S, W11, W12series), shearing machines(QC11Y series) and press brake(WC67Y), tube benders and other project large scale machineries. Located in Nantong, Jiangsu Province, China
In recent years, our company has been focusing on the principles of "people-first" and aims to manufacture products in line with ISO2000: 9001, CE international management standards. We strengthen management and keep the overall capability in this industry, and the quality of our product has been greatly improved. Our advantages lie at quality, prices and services
Our company owns the import and export licenses. Our products are mainly exported to Asia, America and Europe. Our company has won the recognitions from foreign and domestic customers with good quality and has established long-term co-operative relationships with them.
We are willing to provide the most satisfactory services for customers around the world and sincerely welcome foreign and domestic friends to visit our company and co-operate on win-win situations.
