| Prod Model: |
BLS Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
300-42000L/H |
| Voltage: |
0.55-22kw |
| Export Markets: |
Global |
| Inside Surface Finishing: |
Ra < 0.4 Um. |
| Material: |
Stainless Steel |
| Structure: |
Gear Pump |
| Power: |
Electric |
| Type: |
Positive-Displacement Pump |
| Application: |
Chemical Pump |
| Theory: |
Rotary Pump |
Product Description

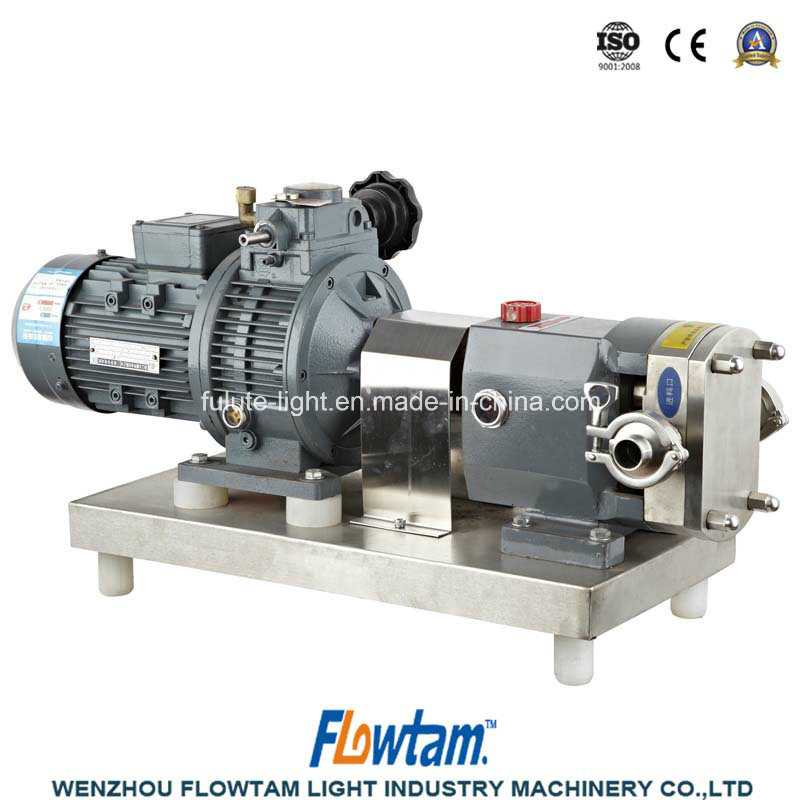

Rotary lobe pump lobe pump rotor lobe pump
Technical parameters:
As the rotors rotate, the spaces between the lobes and the casing are successively filled with fluid, which is transported to the discharge nozzle with a fixed amount of displacement. The pumped fluid forms a continuous stream thanks to the tolerances between the lobes and the pump casing, thus ensuring an efficient pumping.
Application
Rotor Pump is wildly used to transfer viscous media in food- processing, Cosmetics and chemical industry etc.
Design and features
Different Connection type: Welding; Thread; Clamp
Different connections standard: DIN, SMS, JIS, ISO.
Open impeller manufactured with stainless steel investment casting technology.
Sanitary mechanical seal.
Parts in contact with pumped media AISI 316L or 304
Pump support from AISI 304
Inside surface finishing Ra < 0.4 um.
Outside surface finishing Mirror polished
Options
Heating chamber (Jacket)
Mechanical seals in SiC/C, SiC/SiC or TgC/SiC.
Cooled or double mechanical seal.
Trolley and/ Switchboard with invertor
lobe pump
Model | (L)
Capacity / per centum Rotate | (RPA)
Speed | (L/H)
Flow | (KW)
Power |
| BLS-3 | 3L | 200-500 | 300-800 | 0.55 |
| BLS-6 | 6L | 200-500 | 650-1600 | 0.75 |
| BLS-8 | 8L | 200-500 | 850-2160 | 1.5 |
| BLS-12 | 12L | 200-500 | 1300-3200 | 2.2 |
| BLS-20 | 20L | 200-500 | 2100-5400 | 3 |
| BLS-30 | 30L | 200-400 | 3200-6400 | 4 |
| BLS-36 | 36L | 200-400 | 3800-7600 | 4 |
| BLS-52 | 52L | 200-400 | 5600-11000 | 5.5 |
| BLS-66 | 66L | 200-400 | 7100-14000 | 7.5 |
| BLS-78 | 78L | 200-400 | 9000-18000 | 7.5 |
| BLS-100 | 100L | 200-400 | 11000-22000 | 11 |
| BLS-135 | 135L | 200-400 | 15000-30000 | 15 |
| BLS-160 | 160L | 200-400 | 17000-34000 | 18.5 |
| BLS-200 | 200L | 200-400 | 21600-43000 | 22 |
Feel Free To Contact Us For More Details And Welcome To Visit Our Factory!
Wenzhou Flowtam Light Industry Machinery Co., Ltd. Established in 1995, Located in BinHai Industrial Zone. With 17 year manufacturing experience. We have a product range incluing Stainless steel tank, Stainless steel pumps, Stainless steel valves and pipe fitting.
Our products are mainly applied in the fields like dairy, food, beer, medicine, biology, chemical, beverage, food and cosmetics industries etc.
In 2012, Our mixing pump have been approved by CE certificate. Form our frist export transaction in 2006, We have sold our products in many foreign countries, such as USA, Newzealand, Australia, Indonesia etc.
