| Prod Model: |
WRF-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applicaiton: |
Steel Tractor Wheel 14-38inch |
| Diameter Range Of Wheel Rim: |
22.5-38" |
| Width Of Wheel Rim: |
7.5" -20" |
| Thickness Of Material: |
6mm |
| Diameter Of Top Roller: |
235 0 -0.02 |
| Diameter Of Bottom Roller: |
145 0 -0.02 |
| Max. Section Of Main Roller: |
250mm 2 |
| Main Roller Loading: |
2300kn/ 500kn (Still) |
| Productivity: |
About 800-1200 Pics/Shift |
| Spindle Speed (Bottom Roller): |
340 Rpm |
| Forging Forming Method: |
Mold Forging |
Product Description

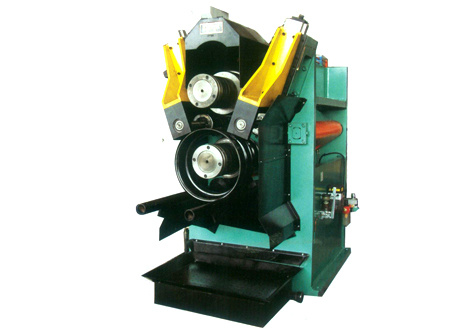

Tractor wheel roll former
Rotary roll forming is a cold forming process where profiles are formed in straight side cylinders or rings, The blanks is roll-formed between upper and lower dies which are mounted on two horizontal spindles. The rim profile is gradually formed while the dies and the blank are rotated.
| Diameter range of wheel rim | 22.5-38” |
| Width of wheel rim | 7.5” -20” |
| Thickness of material | 6mm |
| Diameter of top roller | 235 0 -0.02 |
| Diameter of bottom roller | 145 0 -0.02 |
| Max. section of main roller | 250mm 2 |
| Main roller loading | 2300KN/ 500KN (STILL) |
| Productivity | About 800-1200 pics/shift |
| Spindle speed (bottom roller) | 340 rpm |
| Work precision | 0.01mm |
| Control system | PLC |
| Power | 168.5KW |
| Dimenson | 2200X2750X2420mm |
| Weight | About 11.5ton |
