| Prod Model: |
JH25 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design: |
Standard |
| Forging Forming Method: |
Mold Forging |
Product Description

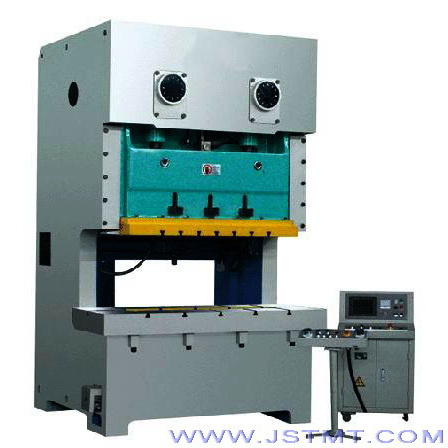

Two Point Power Press JH25 series:
JH25 series power press can meet the requirements for large area sheet punching and high efficiency automatic multistage progressive die production. The machines feature high precision and efficiency, rigid frame structure, and minimize the machining deviation.
With counterclockwise drive dual crank shaft, steel plates welded machine body, and hex rectangle guideways, the load-deflection resistance and precision stability of the lathe are improved, which ensure efficient, stable and quality production.
| Parameters | Uint | JH25-110 | JH25-160 | JH25-200 | JH25-250 |
| Nominal pressure on sliding block Pe | KN | 1100 | 1600 | 2000 | 2500 |
| Nominal pressure stroke Sp | mm | 5 | 6 | 7 | 7 |
| Slide stroke | mm | 180 | 200 | 250 | 280 |
| Stroke frequency | Times/min | 35~65 | 30~55 | 25~45 | 20~35 |
| Die height | mm | 400 | 450 | 500 | 550 |
| Die Height Adjustment | mm | 90 | 100 | 110 | 120 |
| Distance between slider center and machine | mm | 350 | 390 | 430 | 470 |
| Slider bottom size | F-B | mm | 520 | 580 | 650 | 700 |
| L-R | mm | 1360 | 1500 | 1850 | 2100 |
| Size of worktable | F-B | mm | 680 | 760 | 840 | 920 |
| L-R | mm | 1880 | 2040 | 2420 | 2700 |
| Thickness of worktable | mm | 155 | 165 | 170 | 180 |
| Worktable height | mm | 900 | 900 | 1000 | 1000 |
| Size | F-B | mm | 2045 | 2390 | 2720 | 2920 |
| L-R | mm | 1945 | 2040 | 2420 | 2700 |
| H | mm | 3095 | 3710 | 3800 | 4185 |
| Power of electric motor | KW | 15 | 18.5 | 22 | 30 |
| Weight (Approximate) | Kg | 14000 | 20000 | 28000 | 36000 |
Jadestone Machine Tool Co., Ltd is a high Technology Enterprise specializes in the Field of Metal Sheet Fabricating Industry with Highest Quality Standards 9001: 2001 and Powerful Facility and Productivity.
With Years of Exporting Experiences, we Devote and leading in Manufacturing, Research, Marketing and Puissant Ocean Freight capacity global in Metal Cutting, Bending Machine, CNC Punching Machine, Cast Iron and Moulds Design. Our sales network stretches all over the world, with our business conception of Honesty, Creation. Quality. And after Service. To optimize maximum benefits for various Customers with those High performance products, which awards highly praises and repeat orders continuously from different regions.
Apply Territory:
Our products are widely used in Decor, Metallurgy, Boat & Auto Industries. Elevator, and outside construction building.
Products Ranges:
CNC Press Brake
CNC Shearing Machine
Hydraulic Guillotine Shear
(Option with: Estun, Delem, Cybelec, Italy controller )
Punch Press( CNC punch and Power Press. Hydrauic Press)
Tooling Set for Machine model (Amada. Durma. LVD. Haco. Trumpf...)
Drilling Machine and Milling Machine
Production Line, Uncoiled, Cutting, Bending and Punching. Or can be separated ordered.
Shipments:
Shipments to European, North America. South America. Middle East, South-East Asian and Ocean Countries globally.
After Services:
Provide with technical Services. Training service. Maintenance services. Spare parts in Warranty.
Within 24 hours online Service
