| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metal Rolling&Drawing Machine |
Product Description
1). Low cost
2). Lower energy consumption
3). Good stability
4). High-precision
Flow chart
Passive uncoil--feeding-- - forming --punching---cutting--- product
Roll forming machine

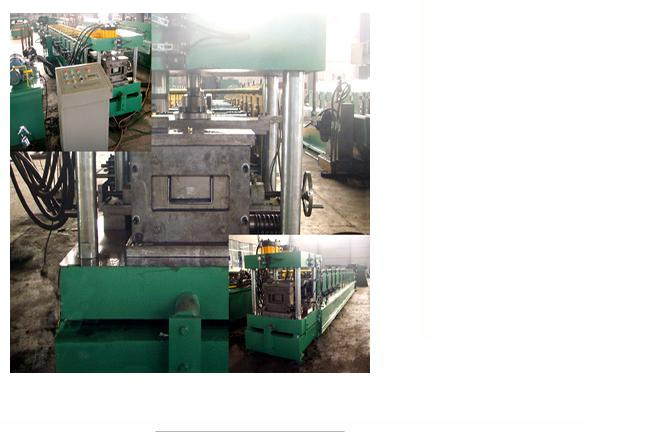

Forming craftwork of U purlin machinery
Decoiler --- Guide, flatting --- Roll forming --- cutting-to-lengh --- collection table
Unit performance
1, Machine capacity: Width100-500mm, thickness: 1-3mm
2, Product speed: 0-15m/min
3, Total power: About35.5kw
4, Occupy groud area: Length 18m xwidth3m
Each part main parameter:
1, Decoiler: Decoiler, Inner expanding, capacity: 5T
2, Guide Rack: Two pairs of lever rollers and four pairs of standing rollers.
3, Flatting number: 9 sets
4, Roll forming
A, Type: GY160
B, Rack: Cast iron torii type, material: HT200
C, Roll forming rack: 12 sets
D, The diameter of the roller axis: φ 70mm, roller surface: 400mm
Material: 40Cr quenching treatment HB280
E, Drive type: Every rack has one gear power diatribution box.
F, Main power: 30kw frequency conversion, ZQ500 reducer
G, Material: GCr15, Quenching, Hardness: HRC58-62
H, Assistant roller rack: 4 sets
5, Adjust part: Turkey emendation type(three-dimensional emendation)
6, Cutting-to-lengthHydraulic press cutting, power: 5.5kw
|
suitable to process |
colored steel sheet, galvanized sheet |
|
Thickness of the plate |
0.3-0.8mm |
|
material of knife |
Cr15 |
|
working speed |
4-10m/min |
|
Diameter of the rolle |
72mm |
|
Dimensions major structure |
about 8.4m*1.3*1.2m |
|
wight |
4t |
|
power |
11kw |
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!
To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.
Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.
Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
