| Prod Model: |
UF-04A/AB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Used For: |
Forging, Hardening, Melting, Heating and etc. |
| Place Of Origin: |
Yongkang China (Mainland) |
| Work Power: |
380V 50-60Hz |
| Capacity: |
Big |
| Duty Cycle: |
100% |
| Certificate: |
CE |
| Operation: |
Safe&Easy |
| Cooling: |
Water |
| Forging Forming Method: |
Mold Forging |

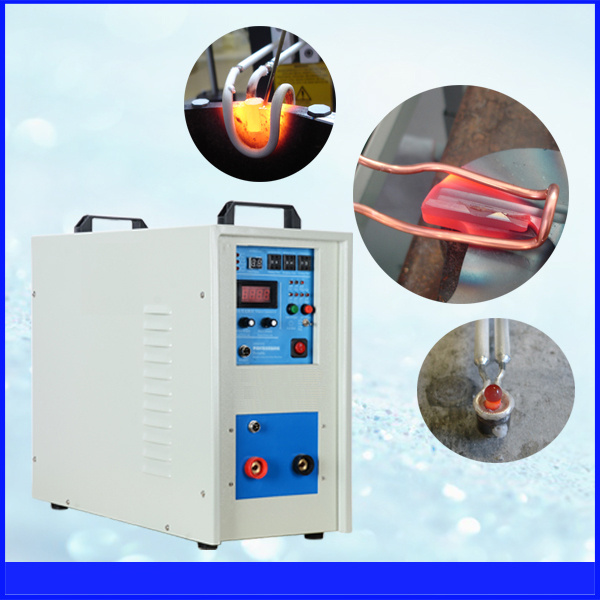

Product Description
Main specification:
1. Model: UF-04A/AB
2. Maximum input power: 4KW
3. Oscillatging frequency: 100-300kHz
4. Input voltage: 380V, three phase, 50Hz or 60Hz
5. Maximum input current: 15A
6. Duty cycle: 100%
7. Cooling water desire: 2L/min 0.2Mpa
8. Water temperature protection point: < 45 degree
9. Auto heating time, retaining time: 0.1-99.9Sec.
10. Weight and size:
Model N. W. / G. W. (kg) Size (L xW xH) packing size
UF-10A 20kg/13kg 460x200x440mm 610x500x540mm
Applications:
Brazing of the tools
Quenching of the parts
Quenching of small shaft
Features:
1. With high frequency up to 300 kHz, the quenching thickness can be controlled lower than 1mm;
2. IGBT and inverting technologies of third generation beeen used, higher reliability and lower maintenace cost.
3. 100% duty cycle, continuous working is allowed at maximum power output.
4. Constant current or constant power status can be selected accordingly to achieve higher heating efficiency.
5. Display of heating power and heating current and oscillating frequency.
6. Simple to install, installation can be done by unprofessional person very easily.
7. Light weight, 29KG only.
8. Advantages of the timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.
We are specialized in the researching and manufacturing of transistor type medium and high frequency induction heating machine and related equipments. Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the effiency and effectiveness of your industrial heating process. That are used for application such as brazing, heat treating, annealing, hardening, bonding, hot forging, melting, shrink fitting etc.
Our induction heating machines are available from 2kw to 750kw deliverable output power with 0.5kHz to 1.1MHz operating frequency range. And 100% solid state technology. All our products are divide into three major series according to the frequency:
Medium Frequency series (MF series)
High Frequency series (HF series)
Ultrahigh Frequency series (UF series)
Depend on our advanced technologies, reliable solutions and excellent after service, our induction heating machines are sell well at home and abroad.
Welcome to enquiry more information, any questions or technique support, please contact us via e-mail for details. Your satisfaction are our team's goal.
