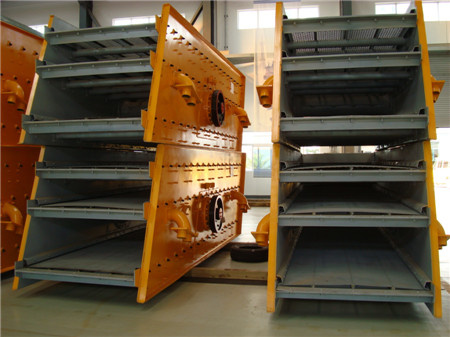

Vibrating Screen/Crusher

Vibrating Screen/Crusher
Price: US $ 20/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: 2YA1230
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screen Mesh Size: 3-50
Finished Surface: Outer Surface Process
Drive: Electric
Compressive Strength (',For Crushing): >300MPA
Application: Stone Industry
Crushing Style: Vibration Screen
Crushing Degree: Vibration Screen
Type: Vibration Screen

Product Description

Packing: Export Standard
Origin: China
HS Code: 84742090

Product Description
Vibrating Screen Advantages:
1. Advanced structure, strong and durable
2. Flexible connectivity, smooth operation
3. Simple structure, convenient maintenance
4. Low power consumption, low noise
5. High screening efficiency, the largest handling
6. Long life, without maintenance for long term
7. Low noise, long life
8. Parts have strong versatility
Vibrating Screen Working Principle:
Motor through V-belt makes vibrator eccentric block to rotate at a high speed. Rotary eccentric block produces big centrifugal force, stimulates screen box to make round motion at some amplitude, materials on the inclined sifter receive impulse from the screen box and produce continuous casting movement, in the process of touching between materials and sifter granules that is less than sieve pore is through sieve and realizes grading.
Vibrating Screen Structural Features:
1. Ring groove rivet connections, advanced structure, strong and durable.
2. To connect sieve and the sieve beams by using high strength bolts, simple structure and convenient maintenance.
3. To use eccentric block as the excitation power, strong power, low power consumption and noise.
4. Small amplitude, high frequency, large angle structure, high screen efficiency, and high processing capacity.
5. Vibrator uses a large clearance bearings, thin oil lubrication, low noise, long service life. Universal parts and easy maintenance.
Model Layer Sieve Area(M 2 ) Screen Mesh Size(MM) Screen Spec(MM) Feed Size(MM) Capacity(T/H) Vibrating Frequency(R/Min) Double Amplitude(MM) Motor Power(kw)
2YA1230 2 3.6 3-50 1200*3000 200 20-80 850 8 5.5
3YA1230 3 3.6 3-80 1200*3000 200 30-90 850 8 7.5
2YA1548 2 7.0 5-50 1500*4800 400 50-190 970 8 15.0
3YA1548 3 7.0 5-50 1500*4800 400 50-200 970 8 15.0
2YA1860 2 10.8 5-80 1800*6000 400 50-280 970 8 18.5
3YA1860 3 10.8 5-80 1800*6000 400 50-300 970 8 18.5
4YK1860 4 10.8 5-80 1800*6000 400 50-300 970 8 22.0
2YK2160 2 12.81 5-100 2100*6100 400 100-380 730 8 30.0
3YK2160 3 12.81 5-100 2100*6100 400 100-380 730 8 30.0
4YK2160 4 12.81 5-100 2100*6100 400 100-380 730 8 30.0
2YK2460 2 14.64 5-150 2400*6100 400 120-430 730 8 37.0
3YK2460 3 14.64 5-150 2400*6100 400 120-430 730 8 37.0
4YK2460 4 14.64 5-150 2400*6100 400 120-430 730 8 37.0

Ningbo Kilomega International Trade Co., Ltd. is a China leading manufacturer and exporter of all kinds of transmission rubber conveyor belts, hoses and mine conveyor machines; Conveyor rollers\Troughing Idlers and Pulley; Wire mesh screen\Electronic motor, Gear boxes, Rubber sheet\transmission flat belts\V-belts\Timing belts; PVC hoses\Rubber hoses\Fire Hoses\Hydraulic hoses; Belt conveyor\Crushers\Spare parts; Belts jointers\ Rubber speed bumps\ Rubber traffic cone\Rubber corner protectors and other rubber transmission accessories.

Kilomega company give our commitments to quality control over our entire range of above products and timely shipping schedules to keep our good reputation. Wish to establish business relations with your company and assure you can benefit from our many years of exporting experience.
