| Prod Model: |
2YA1230 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ply: |
2,3,4 |
| Type: |
Circular |
| Shaft Number: |
Single |
| Condition: |
New |
| Object: |
Stone |
Product Description
Packing:Export Standard
Origin: China
HS Code:84742090
Product Description

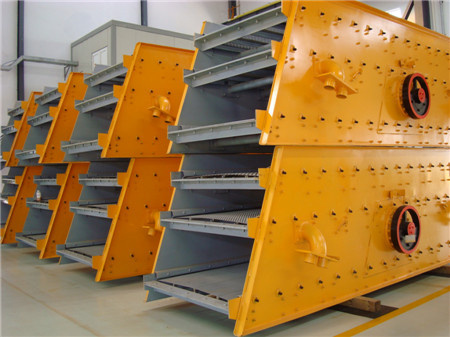

Vibrating Screen Advantages:
1.advanced structure, strong and durable
2.flexible connectivity, smooth operation
3.simple structure, convenient maintenance
4.low power consumption, low noise
5.high screening efficiency, the largest handling
6.long life, without maintenance for long term
7.low noise, long life
8.parts have strong versatility
Vibrating Screen Working Principle:
Motor through V-belt makes vibrator eccentric block to rotate at a high speed. Rotary eccentric block produces big centrifugal force, stimulates screen box to make round motion at some amplitude, materials on the inclined sifter receive impulse from the screen box and produce continuous casting movement, in the process of touching between materials and sifter granules that is less than sieve pore is through sieve and realizes grading.
Vibrating Screen Structural Features:
1. Ring groove rivet connections, advanced structure, strong and durable.
2. To connect sieve and the sieve beams by using high strength bolts, simple structure and convenient maintenance.
3. To use eccentric block as the excitation power, strong power, low power consumption and noise.
4. Small amplitude, high frequency, large angle structure, high screen efficiency, and high processing capacity.
5. Vibrator uses a large clearance bearings, thin oil lubrication, low noise, long service life. universal parts and easy maintenance.
Model | Layer | Sieve Area(M 2 ) | Screen Mesh Size(MM) | Screen Spec(MM) | Feed Size(MM) | Capacity(T/H) | Vibrating Frequency(R/Min) | Double Amplitude(MM) | Motor Power(kw) |
| 2YA1230 | 2 | 3.6 | 3-50 | 1200*3000 | 200 | 20-80 | 850 | 8 | 5.5 |
| 3YA1230 | 3 | 3.6 | 3-80 | 1200*3000 | 200 | 30-90 | 850 | 8 | 7.5 |
| 2YA1548 | 2 | 7.0 | 5-50 | 1500*4800 | 400 | 50-190 | 970 | 8 | 15.0 |
| 3YA1548 | 3 | 7.0 | 5-50 | 1500*4800 | 400 | 50-200 | 970 | 8 | 15.0 |
| 2YA1860 | 2 | 10.8 | 5-80 | 1800*6000 | 400 | 50-280 | 970 | 8 | 18.5 |
| 3YA1860 | 3 | 10.8 | 5-80 | 1800*6000 | 400 | 50-300 | 970 | 8 | 18.5 |
| 4YK1860 | 4 | 10.8 | 5-80 | 1800*6000 | 400 | 50-300 | 970 | 8 | 22.0 |
| 2YK2160 | 2 | 12.81 | 5-100 | 2100*6100 | 400 | 100-380 | 730 | 8 | 30.0 |
| 3YK2160 | 3 | 12.81 | 5-100 | 2100*6100 | 400 | 100-380 | 730 | 8 | 30.0 |
| 4YK2160 | 4 | 12.81 | 5-100 | 2100*6100 | 400 | 100-380 | 730 | 8 | 30.0 |
| 2YK2460 | 2 | 14.64 | 5-150 | 2400*6100 | 400 | 120-430 | 730 | 8 | 37.0 |
| 3YK2460 | 3 | 14.64 | 5-150 | 2400*6100 | 400 | 120-430 | 730 | 8 | 37.0 |
| 4YK2460 | 4 | 14.64 | 5-150 | 2400*6100 | 400 | 120-430 | 730 | 8 | 37.0 |
