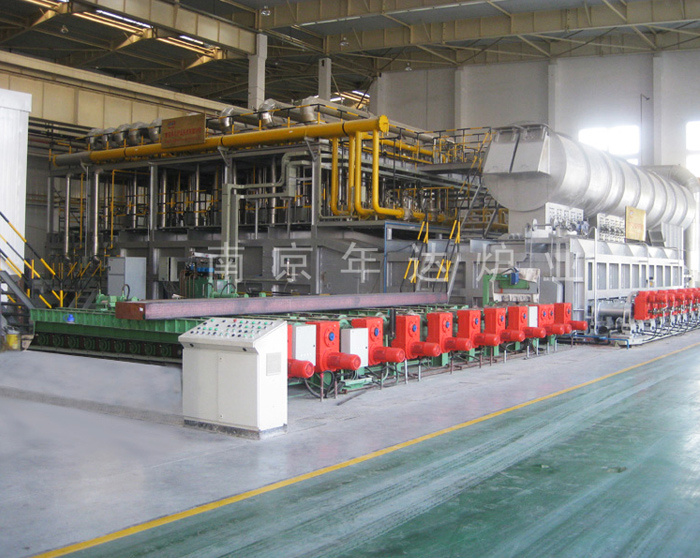

Walking Beam Heating Furnace
| Price: |
US $ 10000/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
T/T,D/P |
Product Description
Description:
Walking beam heating furnace Walking beam heating furnace is a kind of mechanized industrial furnace which depends on special walking mechanism to move steel material in the furnace. The walking beam or walking bottom which loads billet moves in according with rectangle track generally. Such moving mode makes billet progress step by step, and conveys it from charging end to discharge end. Application: Heating before preliminary rolling or continuous casting billet rolling.
Billet movement process:
Billets are delivered at the charging door by the feeding roller. According to the different billet size, billets can be delivered on the walking beam inside furnace by pusher or cantilever roller inside furnace. The walking beam or walking bottom which loads billet moves in according with rectangle track generally, billets go through different temperature zones for heating, the heated billets go out from furnace by drawer or cantilever roller to be rolled.
Furnace classifications: Combustion mode: Regenerative and conventional Heating mode:
Single layer heating and double layer heating Advantage:
A. Billet bottom is in touch with fix beam and walking beam, billet black marking is smaller, the heating quality is high.
B. Eliminating the slide scratch caused by pushing, the product quality is high, rate of finished product is high.
C. All the billet can easily be emptied, this is helpful for inspection and repair inside the furnace; The spacing of billets can be controlled, easy to change steel grade.
D. A interval can be held between two billets, so billets can be heated on all sides, improving heating rate.
E. Billets can be not arched inside the furnace, therefore furnace length is not strict limited, and furnace length can be lengthened suitably to increase production capacity. Fuel: Generator gas, blast furnace gas, mixed gas of blast furnace and Coker, nature gas, heavy oil and various light fuels etc.
Product introduction:
1. Walking bottom heating furnace
2. Walking beam heating furnace
3. Environmental protection & energy-saving furnace
Nanjing Nianda Furnace Science and Technology Co., Ltd (Nanjing Yangtze River Heat Treatment Equipment Factory) specializes in the design and production of industrial furnaces and heat treatment equipments, located at the eastern suburb of Nanjing, with Huning highway in the south, Yangtze River in the north, and the old town of Zhenjiang in the east. The company was founded in 1973, for more than 30 years of development, it now has 280 personnel, of whom 68 are specialized advanced technicians (include 5 expert or professor level technicians), with the area of 100, 000m2, fixed assets of RMB 160 million, and annual value of production of RMB 150, 000, 000. Nanjing Nianda Furnace Science and Technology Co., Ltd is specialized in design and manufacture of various heat treatment facilities used in foundry as well as aluminum alloy, copper and stainless steel applications.
So far, we have designed and manufactured hundreds of heat treatment production lines and industrial furnaces, which are widely used in the fields of machinery, metallurgy, foundry, aerospace and non-ferrous metal industry, etc. Our main products include Solar Cell Laminating Plates Solidification Furnace, Jumbo Roller-hearth Heat Treatment Production Line for Gas Cylinder, Sand Core Drying Oven, Aging Furnace, Aluminum Melting and Holding Furnace, Reheating Furnace, Annealing Furnace, Quenching Furnace, Tempering Furnace, Normalizing Furnace, Solution Furnace, Walking-beam Furnace, Soaking Pit, Drying Furnace, Sintering Furnace, Carburizing Furnace, Nitriding Furnace, Multi-purpose Furnace, Pusher-type Furnace, Roller- hearth furnace, Rotary-hearth Furnace, Annular Furnace, Mesh-belt Furnace, Pit Type Furnace, Box Type Furnace, Bogie Type Furnace, Bell Type Furnace and Multi-Function Cleaner and etc.
Our products is not only well sold in more than 20 provinces (cities) of China, but also exported to Japan, Malaysia, Thailand, Iran, India, etc. Especially, the proprietary intelligent electrical control system that the company costed nearly a million RMB on research and development, is still in the leading position in China today.
