| Prod Model: |
SB1050 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
You Can Choose |
| Control System: |
PLC Control |
| Cutting System: |
Hydraulic Shearing System |
| Warranty: |
12 Monthes |
| Type: |
Building Machine |
Product Description

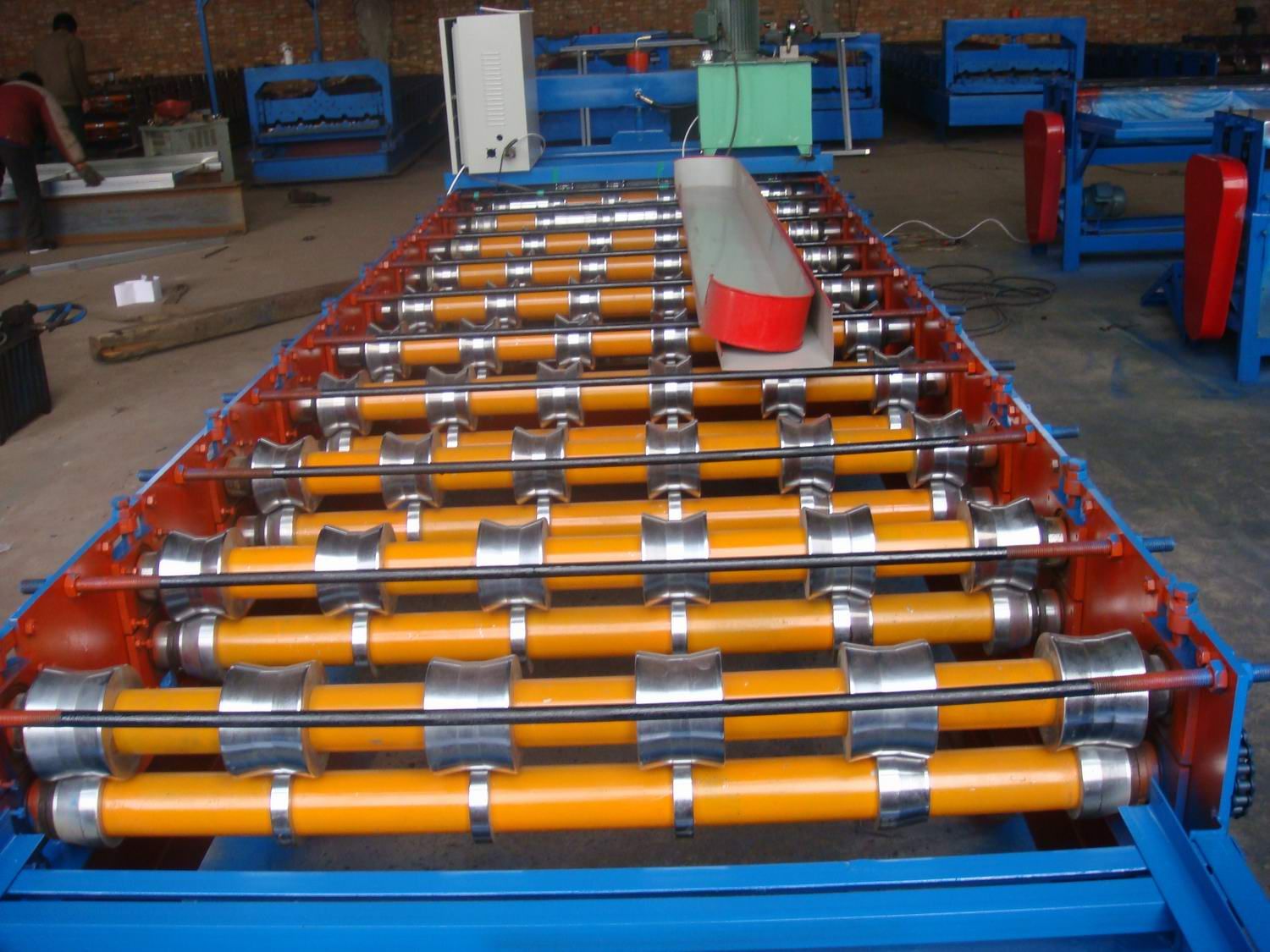

Warehouse metal roof forming machine for SB1050
Main forming machine
Forming size 6600mm*1300mm*1200mm
Feeding width 1000mm
Equipment weight 2100kg
Material of shaft 45#steel adjustable treatment
Out diameter of shaft φ 70mm
Material of roller Cr12, quenched treatment HRC58-60° C
Number of forming rollers 13 rows
Main frame 250 channel steel
Thickness of medium plate 12mm
Transportation system Chain transportation
Thickness of chain 6 points
Main motor power 3 KW
Pump station power 3 KW
Forming speed 8000-10000mm/min
Rolling thickness 0.3-0.8mm
|
Material of blade |
Gr12, heat treatment 60-62Degrees Celsius |
|
Shearing system |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil: 40# |
Electrical system
|
Screen display |
5.7 inches TaiDa touch screen |
|
|
Main computer control cabinet |
It adopts industrial computer to control. The target piece’ s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision: within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand is Delta
The seller should provide Chinese and English language screen.
|
|
