Product Description

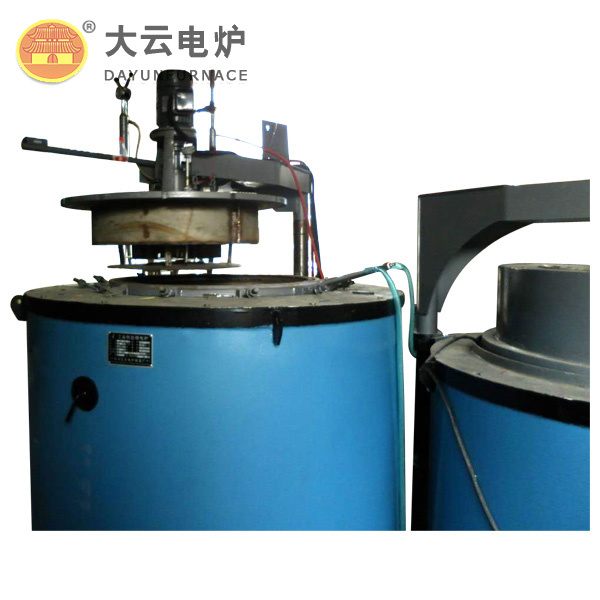

Well type carburizing furnace; Carburizing of carbon steel parts.
RQ Series Well Type Carburizing Furnace is cyclic working furnace. It is mainly applicable to the carburizing of carbon steel workpieces. The temperature is monitored and recorded automatically.
The furnace is comprised of furnace body, heating components and temperature control system.
The furnace shell is made of welded steel plates and sectional steel.
Its lining is comprised of heat insulation layer of superlight high aluminum foam brick and of heat preservation layer of silicate aluminum refractory fiber, diatomite soil or vermiculite powder.
The furnace shell is also mounted with one ventilation fan to circulate the air and unify the furnace interior temperature. There is one anti-leakage sealing device on the axis, which is cooled with cooling water.
The furnace cover is lifted with hydraulic lifting mechanism and the driving force is provided by 10/25 hydraulic device.
To meet different requirements, we offer tailor-made service to our customer.
|
model |
rated power
(kw) |
phases |
voltage (v) |
rated temperature (degree celcius ) |
working chamber size (mm) |
overall dimension (mm) |
weight (kg) |
|
RQ3-25-9 |
25 |
3 |
380/220 |
950 |
φ 300× 450 |
1590× 1410× 2100 |
1660 |
|
RQ3-35-9 |
35 |
3 |
380/220 |
950 |
φ 300× 600 |
1590× 1410× 2230 |
1850 |
|
RQ3-60-9 |
60 |
3 |
380/220 |
950 |
φ 450× 600 |
1810× 1570× 2500 |
2630 |
|
RQ3-75-9 |
75 |
3 |
380/220 |
950 |
φ 450× 900 |
1810× 1570× 2850 |
2960 |
|
RQ3-90-9 |
90 |
3 |
380/220 |
950 |
φ 600× 900 |
2000× 1800× 3050 |
3700 |
|
RQ3-105-9 |
105 |
3 |
380/220 |
950 |
φ 600× 1200 |
2000× 1800× 3200 |
4100 |
|
RQ3-210-9 |
210 |
3 |
380 |
950 |
φ 1400× 2000 |
2800× 2850× 3700 |
6000 |
|
RQ3-270-9 |
270 |
3 |
380 |
950 |
φ 1250× 1700 |
2800× 2400× 4000 |
8000 |
