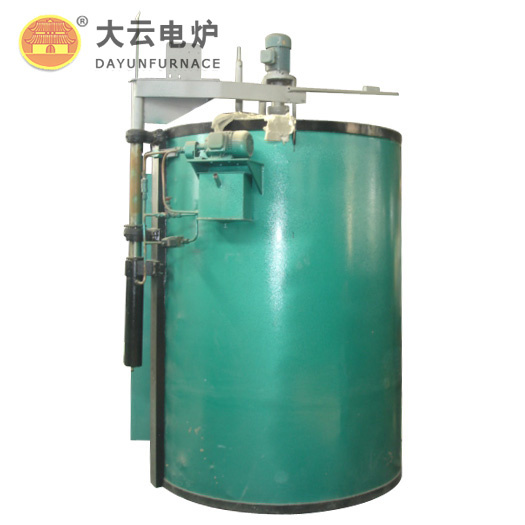

Well Type Gas Carburizing Furnace

Well Type Gas Carburizing Furnace
Price: Negotiable
Trade Terms: FOB,CIF
Min Order: 1set
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Deformation Temperature: Hot Forging
Molding Style: Forging
Molding Technics: Pressure Casting
Casting Method: Special Casting

Product Description

Application:

Gas carburizing furnace for carburizing of carbon steel workpieces,

Gas carburizing furnace. RQ Series Well Type Gas Carburizing Furnace is cyclic working furnace. It is mainly applicable to the carburizing of carbon steel workpieces. The temperature is monitored and recorded automatically.

The furnace is comprised of furnace body, heating components and temperature control system.

The furnace shell is made of welded steel plates and sectional steel.

Its lining is comprised of heat insulation layer of superlight high aluminum foam brick and of heat preservation layer of silicate aluminum refractory fiber, diatomite soil or vermiculite powder.

The heating components are placed on the supporting brick.

The furnace hearth is equipped with one heat resistance tank and workpiece accomodating rack.

The furnace shell is also mounted with one ventilation fan to circulate the air and unify the furnace interior temperature. There is one anti-leakage sealing device on the axis, which is cooled with cooling water.

The furnace cover is lifted with hydraulic lifting mechanism and the driving force is provided by 10/25 hydraulic device.

On the lifting shaft, there are two limit switches. When the lifting shaft goes up, the lower limit switch cuts off the fan power; When the cover moves up to its due position, the upper limit switch cuts off the hydraulic device power to prevent the shaft from running into the cylinder.

The liquid dripping system of the furnace is one dripper with concurrent three liquids dripping. The flow rate is controlled through needle valve and flow meter.

On the face of the furnace cover is water cooling sampling tube, gas supply hole, gas discharge hole. If the customer requires also the infrared CO2 analyzer, the carbon content can be controlled automatically.

To meet different requirements, we offer tailor-made service to our customer.
model rated power
(kw)
phases voltage (v) rated temperature (degree celcius ) working chamber size   (mm) overall dimension (mm) weight (kg)
RQ3-25-9 25 3 380/220 950 φ 300× 450 1590× 1410× 2100 1660
RQ3-35-9 35 3 380/220 950 φ 300× 600 1590× 1410× 2230 1850
RQ3-60-9 60 3 380/220 950 φ 450× 600 1810× 1570× 2500 2630
RQ3-75-9 75 3 380/220 950 φ 450× 900 1810× 1570× 2850 2960
RQ3-90-9 90 3 380/220 950 φ 600× 900 2000× 1800× 3050 3700
RQ3-105-9 105 3 380/220 950 φ 600× 1200 2000× 1800× 3200 4100
RQ3-210-9 210 3 380 950 φ 1400× 2000 2800× 2850× 3700 6000
RQ3-270-9 270 3 380 950 φ 1250× 1700 2800× 2400× 4000 8000

The company is located in the south of Tai Lake, where is the hinterland of "Yangtze River Delta". Shanghai in east, Hangzhou in south, and where is the convenient way of Su, Wan Zhe three provinces, and 318 National Road runs through the company.

The company has twenty years history, which is specialized in design and manufacture industrial heat treatment furnace. Our company is called the leading enterprise. The company area is known as "the hometown of electric furnace".

For many years, Huzhou technology bureau rated as hi-tech enterprise. The bank has been awarded AAA grade enterprise. The Huzhou industrial and commercial bureau has been rated AA-level "Credible" unit. The brand is well-known trademarks. Through the ISO9001: 2000 international quality management system certification.
