Whole Crane Wheel with Dia. 315mm to 1000mm

Name: Whole Crane Wheel with Dia. 315mm to 1000mm
Brand: china-castingforging.com
SKU: 698838552
Availability: InStock
Rating: 4.8 (82 reviews)

Price:	US $ 500-3000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Zhongyuan Shengqi Industrial Co., Ltd.

Showroom Product Company Profile

Prod Model:	EBN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dia.:	315mm-1000mm
Steel No.:	60#,65#,65mn,40crmo
Hardness:	HRC45-55
Heat Treatment Depth:	15mm-18mm
Molding Style:	Forging
Processing Object:	Metal
Application:	Overhead Crane, Gantry Crane, Portal Crane, Cars
Heat Treatment:	Quneching and Tempering
Molding Technics:	Modular Forging

Product Description

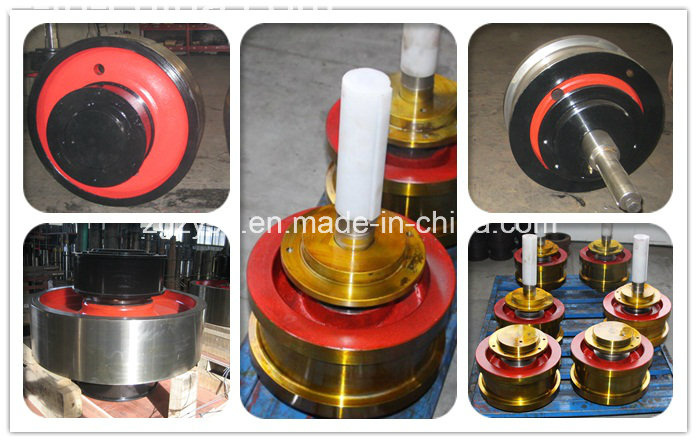

Wheel Assembly for Overhead Crane Gantry Crane Portal Crane

Part 1: Descriptions & Application
Wheels are machine-components with load bearing function.When selecting wheels, we can supply you with a broad variety of options.

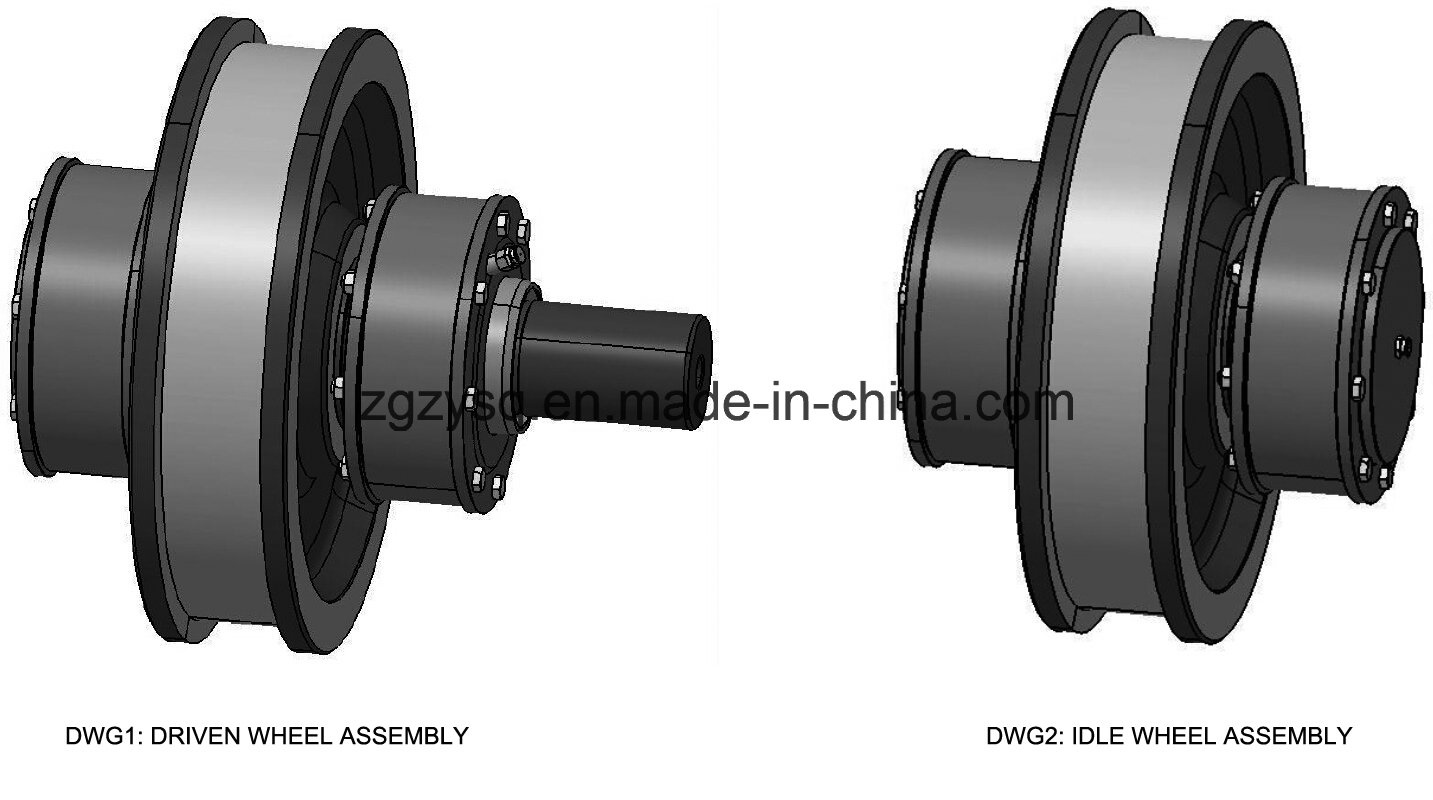

Complete wheel assemblies are combined with wheel block, shaft, bearing, bearing house and wheel assemblies support, they are widely applied on overhead crane, gantry crane, portal crane, transfering Cars,

Part 2: Wheel features:
-Material: 60#,65#,65Mn,42CrMo
-Heat treatment:hardening and tempering,high frequency quenching or carburizing quenching -Hardness: HRC45-55
-Depth:15-18mm
-Diameter: Φ300-1000mm

Part 3: Process
-Spectral analysis on raw material
-Cutting as requirments
-Forging with modular
-Surface harden
-Heat treatment
-Rough machining
-Normalizing
-NC machining
-Size detecing
-UT Detection
-Assembly
-Packing and anti rust paint
-Delivery

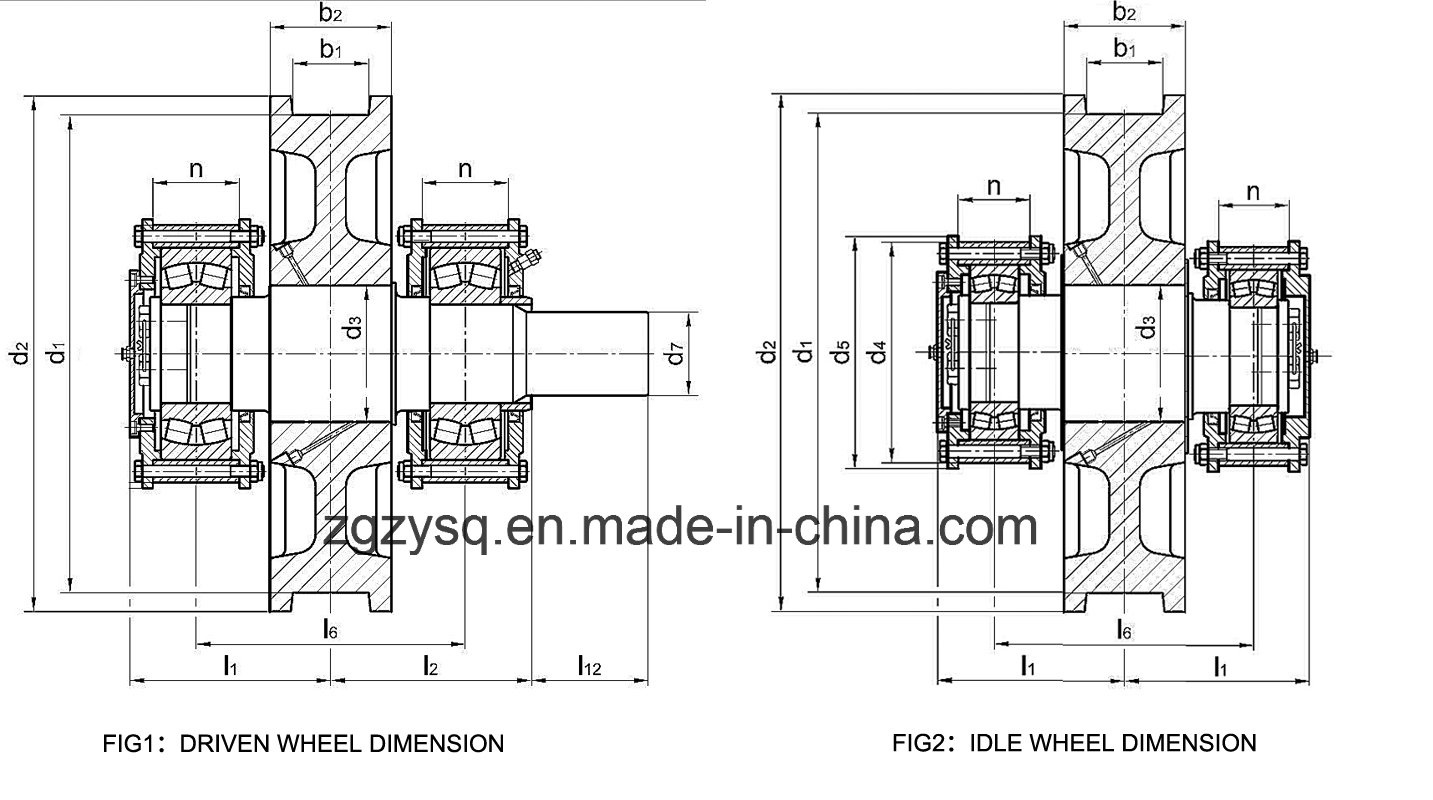

Part 4: Sketch & Dimension

Wheel Dia.	Diamension(kgs)											Dead Weight(kgs)
d1	b1	b2	d2	d3	l1	l6	n	l2	d7	l12	Bearing	Driven wheel	Idle Wheel
315	45-55	90	350	110	171	235	62	185	-	-	22218	100	95
315	55-65	110		120	173			190	70	105	22220	123	117
400	55-65	110	440	120	188	265	62	205	70	105	22220	153	147
400	70-90	140		130	202	280	72	215	80	120	22222	192	183
500	55-65	110	540	130	202	280	72	215	80	120	22222	212	203
500	70-90	140		140	210	290	82	225			22224	263	253
630	65-75	120	680	160	237	325	94	250	-	-	22226	356	344
630	80-110	160		180	245	335		265	100	152	22230	465	450
710	75-90	140	760	170	249	350	94	260	100	152	22228	474	459
710	95-160	210		190	278	395	104	300	110		22232	683	658
800	75-90	140	850	180	255	355	94	275	110	152	22230	579	559
800	95-160	210		200	289	405	114	310	130	172	22234	841	809
900	75-90	140	950	190	268	375	104	290	-	-	22232	693	668
900	95-160	210		230	315	430	134	335	140	202	22240	1094	1055
1000	75-90	140	1050	200	279	385	114	300	-	-	22234	865	832
1000	95-160	210		250	332	450	146	355	160	202	22244	1399	1345
