| Prod Model: |
200T 300T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity (T): |
200 300 |
| Travel (mm): |
300+405 |
| Table Size (mm): |
900*1200 |
| Dimension(mm): |
2300*1000*2900 |
| Forging Forming Method: |
Mold Forging |
Product Description

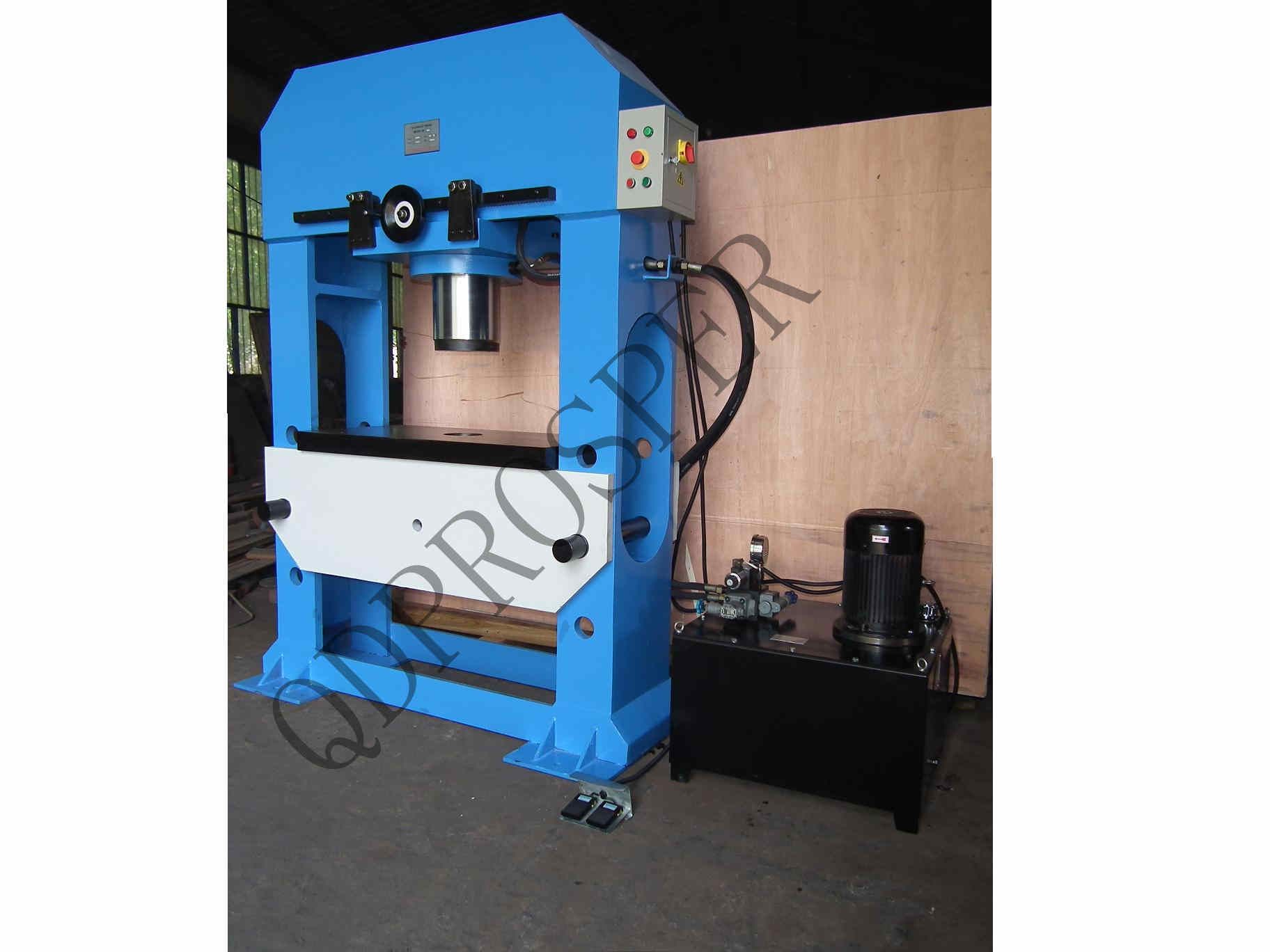

Workshop Hydraulic Press Machine (200T 300T):
HPM series hydraulic press are used for assembling, dismantling, alignment, calendaring, tension, bending and punching.
The machine supplied oil by Italy CNK and CBZ pump. It could save 60% energy compared with the traditional model. The efficiency increased to 2-3 times. It takes the advantages of small volume, high pressure, simple structure and light weight.
· The most competitive pricing in the market.· High quality control standards, such as ISO, CE· Guaranteed delivery time.· Prompt attention to the customer inquiries.· Diverse services for your needs, including sourcing other machinery, inspection goods for you by our engineers, product process tracking and good delivery.· Research and Development to meet the customer and the market need. Description:200T with SLIDING CYLINDER RAM INDUSTRIAL HYDRAULIC PRESSSuited for the Industrial workshop, for the repair of axles removal & press fit of bearings & bushings. FeaturesEasy to use and powerful press for most applicationsIdeal for the repair of axles, shafts, & press fit of bearings & bushingsRam can be repositioned via crank hand wheel, slides left or rightRam speed down 8.5mm/sec, returns 8.0mm/secHeavy duty welded steel fabricated frameStrong hydraulic cylinder ensures precise pressing during operationFitted with pressure gaugeSafety overload valveHydraulic joystick control leverPowerful TEFC motorsHeavy duty one piece table plate insertExtra heavy duty table support with high tensile setting pinsTable can be adjusted for height using chains and Hydraulic ramPre-Commissioning:1. Press is run & tested prior delivery2. Hydraulic oil is included with machine
MODEL |
HPM-200T |
HPM-300T |
HPM-500T |
CAPACITY(KN) |
2000 |
3000 |
5000 |
PRESSURE(MPa) |
40 |
42 |
45 |
TRAVEL (mm) |
300+405 |
300+405 |
300+405 |
TALE SIZE( mm) |
500*1000 |
700*1200 |
900*1200 |
DIMENSION(mm) |
1940*900*2300 |
2100*950*2700 |
2300*1000*2900 |
|
900*800*1060 |
1100*1200*1350 |
1100*1200*1350 |
WEITHT (KG) |
2200/2400 |
3900 |
6500 |
