Y28 Double-Action Hydraulic Drawing Press

Name: Y28 Double-Action Hydraulic Drawing Press
Brand: china-castingforging.com
SKU: 762345195
Availability: InStock
Rating: 4.8 (63 reviews)

Price:	US $ 15000/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Shanghai Bohai Machinery Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	Y28-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design:	Unique Design
Forging Forming Method:	Mold Forging

Product Description

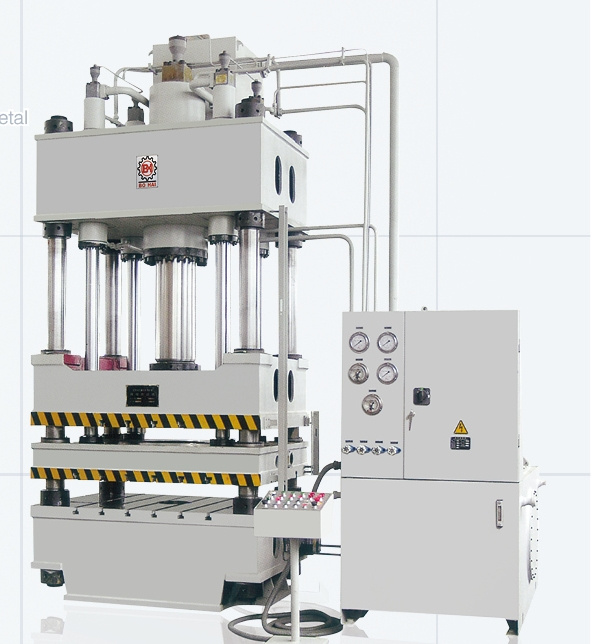

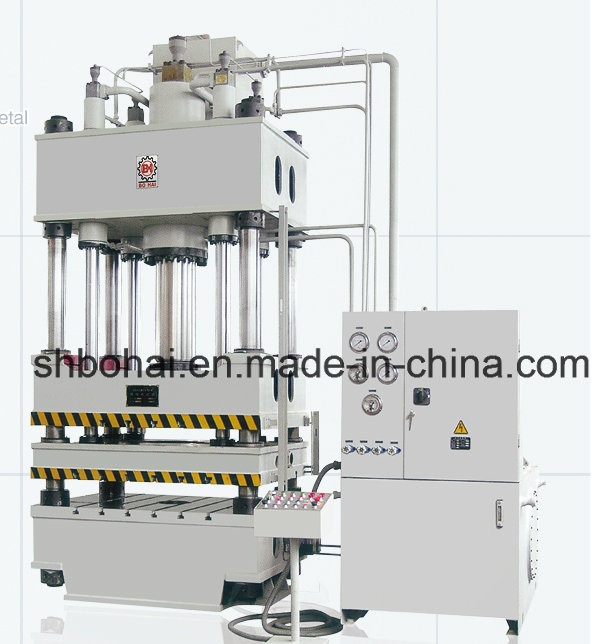

Y28 Double-Action Hydraulic Drawing Press

(1)Features of Y28 Double-Action Hydraulic Drawing Press :
1.Computer Optimized Design, 3-beam&4-column structure or Gantry-Style structure
2.Gantry-style structure with high rigidity; Four-column structure with simple, economic and practical working
3.Drawing and Blankholder Slider be linked, Reach to Single action process
4.Safety protection system with mechanic, electric and hydraulic interlock, such as Oil cylinder cavity supporting loop,
Cylinder cavity interlocking circuit with high safety and reliability
5.Control system based on PLC, sensitivity, reliability and flexibility

(2)Applications of Y28 Double-Action Hydraulic Drawing Press :
Suitable for all deep drawing process, especially in the following fields:
1.Pressure Vessel, Drawing and forming for barrel and head cap

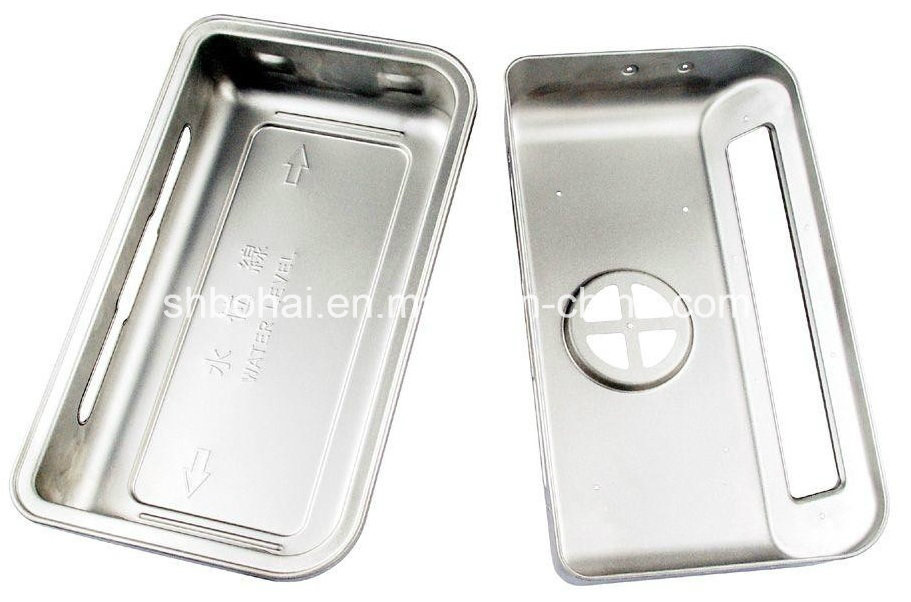

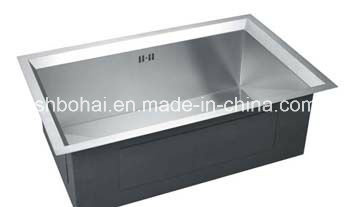

2.Deep drawing for Stainless steel sink
3.Drawing for long work piece, like bath
4.Drawing and Forming for Big automobile panel and parts

(3)Optional configuration of Y28 Double-Action Hydraulic Drawing Press
a.Proportional regulation for slide speed and force;
b.Proportional regulation for cushion force;
c.Light curtain safety device;
d.Oil heating/cooling unit;
e.Industry touching screen monitor;
f.Displacement sensor;
g.Floating guide-way and rolling bracket for die exchange;
h.non-recycling column slide device;
i.Working area lighting;Power Socket

(4)Technical Specification of Y28 Double-Action Hydraulic Drawing Press

Item		Unit Type	Y28- 100/150	Y28- 100/180	Y28- 200/300	Y28- 400/600	Y28- 500/800
Slider Drawing Force		kN	1000	1000	2000	4000	3150/5000
Slide Blank Holder Force		kN	500	860	1000	2000	3000
Ejecting Force of Ejector		kN	350	350	300	530	1000
Knock-out Force of Tensile Slider		kN	250	250	470	800	1100
Knock-out Force of Blankholder Slider		kN		300	300	630	850
Centre drilling size of Blankholder slider		mm	φ330	φ380	φ500	800*800	2400*1400
The MAX.Operating Pressure of Liquid		MPa	25	25	25	25	25
The MAX.Distance from Tensile Slider to Working table		mm	1000	1365	1530	2190	1600
The MAX.Distance from Blankholder Slider to Working table		mm	500	800	800	1300	1600
The MAX. Stroke of Tensile Slider		mm	630	630	710	800	1000
The MAX. Stroke of Blankholder Slider		mm	200	350	350	720	1000
The Stroke of Ejection Cylinder		mm	/	/	/	600	350
Active Size of Tensile Slider	Left-Right	mm	630	630	900	700	2300
Active Size of Tensile Slider	Front-Back	mm	630	630	900	700	1400

Shanghai Bohai Machinery Manufacturing Co., Ltd., which was founded in 1989, is designated as a National High-tech enterprise.

It is one of the best and edest CNC plate processing manufacturer in China, it is also awarded the title of "China Top Brand", and Its products have been popular sold in China and Oversea for many years. It also passed ISO9001 Quality System Certificate and CE Certificate.

The headquarter of the Company is sited in Qianqiao Economic zone, Fengxian District, Shanghai City.

Now, the Company is staffed with 100 employees, among them there are 6 senior engineers, 5 technicians.

The Company boasts to have its own R&D facilities, the strongest R&D capabilities in China.

The people at Bohai have a long solid history of producing the most advanced machine tools in the business. They bring years of experience to the operation, and can make sure that the machine leaving the factory lives up to the highest expectations.

As the parent company, The company has 2 subsidiary companies under its control, namly, Shanghai Wanjiao Machine Tools Manufacture Co., Ltd, Maanshan Huayu Machine Tools Co., Ltd.

The Group Company is dedicated to the research and development, production and sales of plate processing machine including shearing, bending, rolling, etc., which are widely used in airspace, automobiles, metal works and various other fields, and have been exported to dozens of countries and regions in Europe, America and Southeast Asia.

Please enjoy our website and feel free to look over our great machines. We hope you will join the satisfied customers who own BOHAI machine, because we know you are our future.
