| Prod Model: |
DIN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Technical Spec.: |
Tolerance:CT8 Roughness:Ra12.5~6.3 Mass:up to 80kg |
| Material: |
Carbon Steel |
| Surface Preparation: |
Sand Blast |
| Molding Technics: |
Waterglass |
| Casting Method: |
Lost Wax |
Product Description

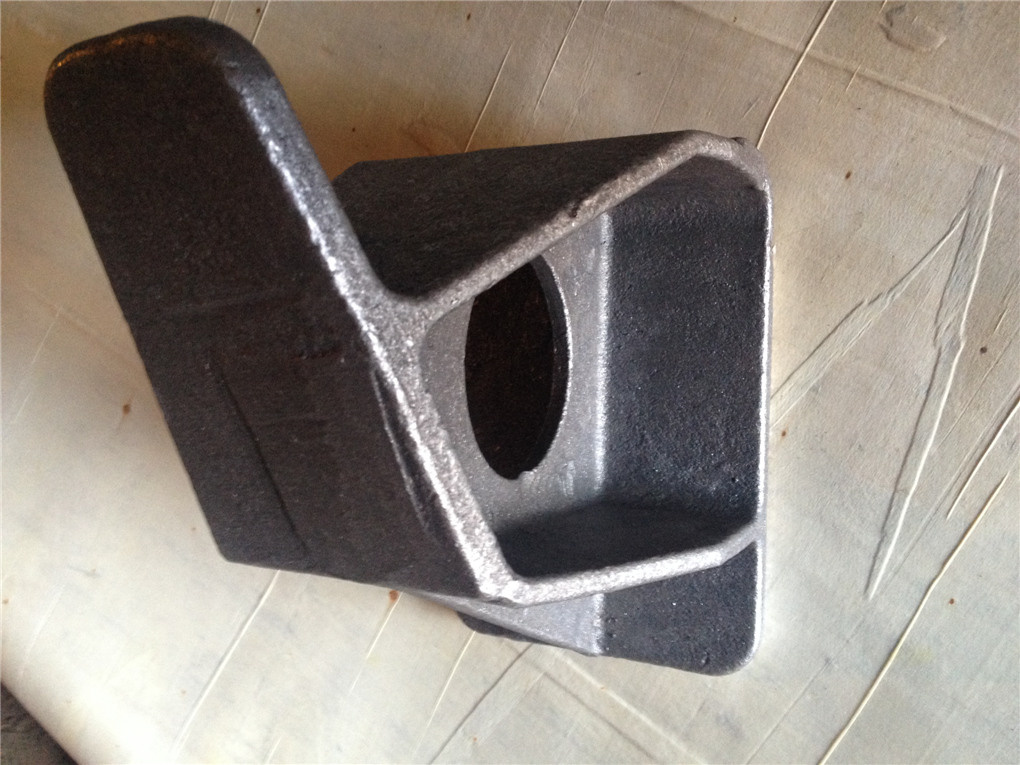

1. Name: Precision Casting--Yoke
2. Machining part with Precision casting.
3. Machining equipment: CNC Machine.
4. DNT equipment: X-ray detector, UT, MT
5. Professional precision casting foundry, 10 years experience and expertise. Most products are exported to Europe and North American markets. Main material is carbon steel, low alloy steel and stainless steel. Heat treatment, machining and finishing are available.
6. Trademark: OEM
7. Model: Purchaser's Part Number
8. Standard: ISO9001
9. Productivity: 1000 MT/month
10. Origin: Made In China
11. Packing: Eurpean standard pallet size
12. Transportation: By Air/Sea
| CHEMICAL ANALYSIS % | | |
| | |
| | C | Si | Mn | | | | | | | | |
| | |
| Min | | | | | | | | | | | |
| Max | 0.3 | 0.80 | 0.90 | | | | | | | | |
| Actual | 0.27 | 0.63 | 0.70 | | | | | | | | |
| | | | | | | | | | | | |
| MECHANICAL ANALYSIS |
|
| | Yield point | | | | Tensile Strength | | Elongation % | | Hardness(HB) | |
| N/mm2 | N/mm2 | | |
| | Requirements | ≥2 30 | ≥450 | ≥ 22 | / |
| Actual | 285 | 575 | 24.6 | / |
Qingdao Casting Bright Machinery Co., Ltd. Specialist In Small, Medium and Large Series Steel & Stainless Steel Castings from less than 0.01kgs up to 1500kgs with capacity 18000MT/year experenced from 1995.
All our products are strictly made in accordance with our customers' designs or samples, and are carefully inspected and well packed by our experienced employees before shipping. Our products are now used on many brand-name equipment and machinery around the world.
We appreciate every business opportunity, and are committed to manufacture high quality parts for our customers by the most competitive prices, on time delivery and the best services. Please do not hesitate to contact us, when you need any steel parts.
