Yx153 Metal Deck Roll Forming Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YX153-280-840 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue and Yellow |
| Forging Forming Method: |
Roll Forming |
Product Description

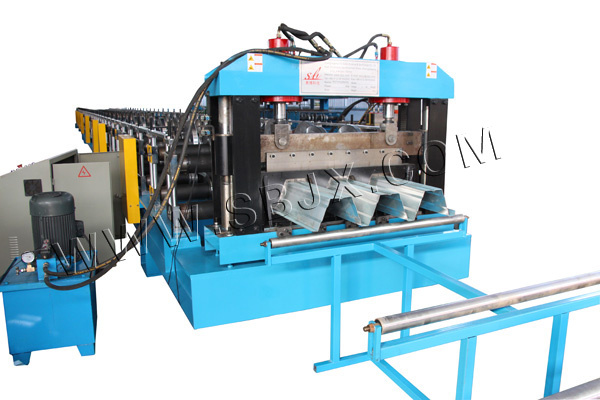

Product name:YX153 Metal deck roll forming machine
Description:
1. Brief introduction:
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.
2. Main technology parameter:
1) Main power: 3*11KW
2) Roll stations: 42stations
3) Drive way: 1.5 inch double chains
4) Diameter of shaft: 115mm
5) Cutting system: Hydraulic cutting
6) Length tolerance: ± 1.5mm
7) Working speed: 12-16m/min
8) Thickness of material: 0.8-1.5mm
9) Material of shaft: GCr15 steel, quenching HRC58-62
10) Material of blade: Cr12, quenched 58-62
11) Material of Rolls: Q195, Q235.
12) Transducer: Panasonic
13) Hydraulic pressure: 20Mpa
14) Hydraulic power: 5.5kw
15) Control system: PLC, Panasonic
Zhangjiagang City Saibo Science & Technology Co, . Ltd is a professional manufacturer specializing in the developing and exporting of roll forming machine and welding pipe line, such as Metal roof & wall panels machine, C&Z purlin machine, drywall stud-track forming machines, Metal deck machines, K-span and columniation curves forming machines, and guard rail forming machines, downspout roll forming machine, weld pipe machine line and so on.
Our company, which is located in Zhangjiagang city, is close to Zhangjiagang Economy Development Area and Shanghai City with superior geographic and convenient transportation.
Since 90s, in 20 centuries, the market for steel structure building industry boomed but with the development of steel structure industry, the shorter period for construction and beautiful external appearance, as well reasonable price was occupied in the market of building industry.
Zhangjiagang Saibo Science & Technology Co, . Ltd engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machine for our regular customer. In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, and installation. Our goal is" future by heartiness, faith leads to the world"
Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
