Corrugated Roll Forming Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram |
| Prod Model: |
Corrugated forming machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue and Yellow |
| Forging Forming Method: |
Mold Forging |
Product Description

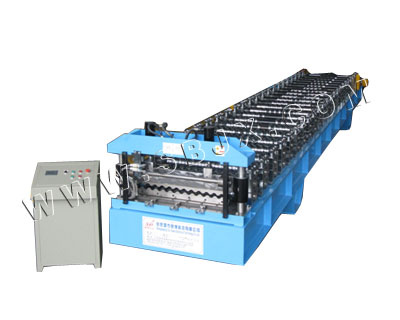

Product name: Corrugated roll forming machine
Detailed Description:
1. Main power: 5.5KW
2. Roll station: 18stations
3. Size of roll forming machine: About 9.4m*1.65m*1.2m
4. Diameter of shaft: 70mm
5. Thickness of formed steel: 0.3mm-0.8mm
6. Width of raw material: 1250mm
7. Material of the roller: 45#forge steel, machined with numerical control, polished and coated with chrome, surface with chrome
8. Hydraulic power: 4KW
9. Computer adopt PLC, Panasonic
10. Computer operating board: Touch screen
11. Length tolerance: +/-1.5mm
12. Working speed: 12-30m/min(not including cutting)
13. Hydraulic pressure: 12Mpa
Equipment
Include: Uncoiler, roll forming machine, hydraulic station, hydraulic shear, PLC cabinet, output table
Flow chart
Passive uncoil--feeding--formed--cutting--product.
Zhangjiagang City Saibo Science & Technology Co, . Ltd is a professional manufacturer specializing in the developing and exporting of roll forming machine and welding pipe line, such as Metal roof & wall panels machine, C&Z purlin machine, drywall stud-track forming machines, Metal deck machines, K-span and columniation curves forming machines, and guard rail forming machines, downspout roll forming machine, weld pipe machine line and so on.
Our company, which is located in Zhangjiagang city, is close to Zhangjiagang Economy Development Area and Shanghai City with superior geographic and convenient transportation.
Since 90s, in 20 centuries, the market for steel structure building industry boomed but with the development of steel structure industry, the shorter period for construction and beautiful external appearance, as well reasonable price was occupied in the market of building industry.
Zhangjiagang Saibo Science & Technology Co, . Ltd engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machine for our regular customer. In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, and installation. Our goal is" future by heartiness, faith leads to the world"
Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
