Main Motor:
15kw
Decoiler Capacity:
3000kg
Hydraulic Motor:
5.5kw
Operation Language:
English or as Per Client`S Required
Rollers Material:
No.45 Forged Steel with Hard Chrome
Cutter Material:
Cr12 Mould Steel with Quench Treatment
Cutting Style:
Automatic Cut to Length
Shafts For Rollers:
Grand Twice, ID82mm Solid Steel
Guarantee:
First Year Free, Lifetime Services
Cotrol System:
Mitsubishi PLC & Converter
Forging Forming Method:
COLD ROLL FORMING
Product Description

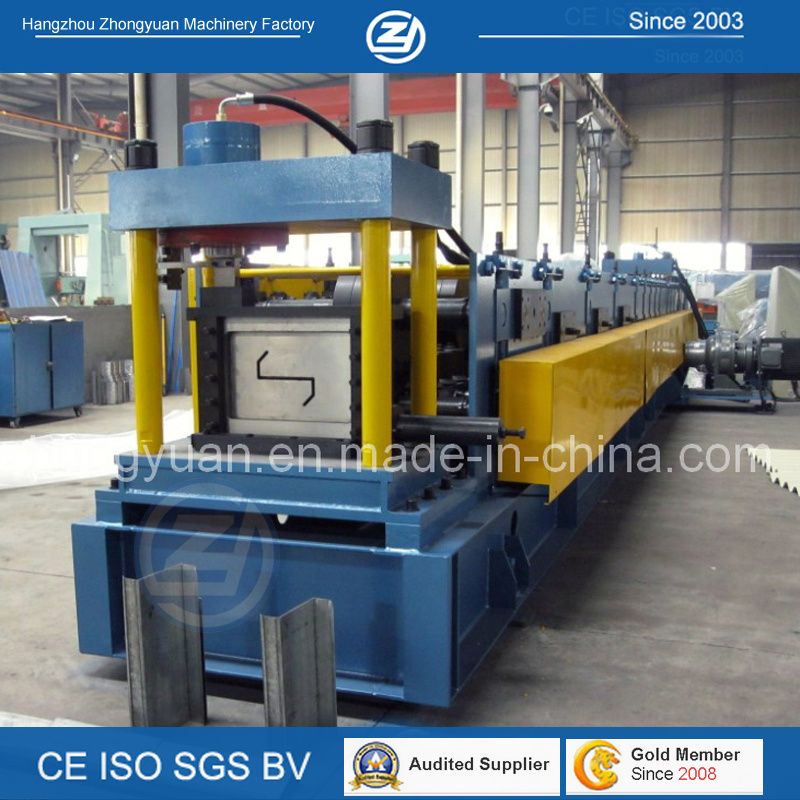

Z Purlin Forming Machine with CE Certificate
Why choose this purlin forming machine?
1. Was designed by 15 years experienced R&D members with lifetime seivices
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.

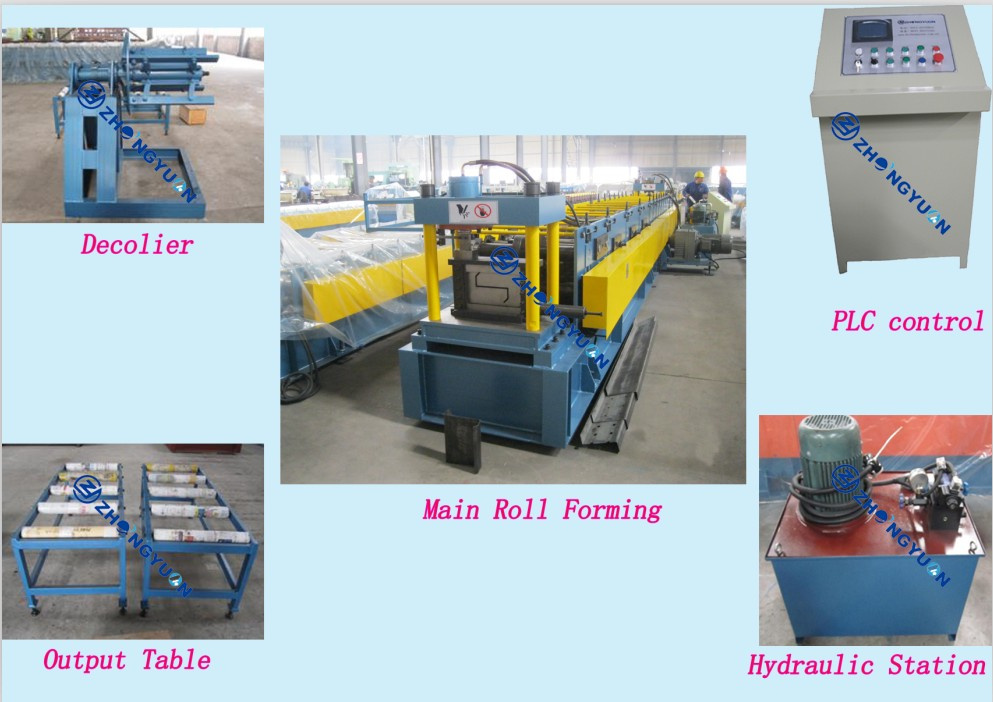

Machine over view
Parameters
Item
Specification
Material
Type
Color steel sheet or galvanized steel sheet
Thickness(mm)
1.5 -3.0
Yield strength(mpa)
235 -345
Hardness of rollers
HRC58-60
Forming speed(m/min)
About 15-20m/min
Speed adjusting mode
AC Frequency
Roller drive
Decelerating motor + Chain drive
Cutting mode
Hydraulic cutting
Cutter material
Cr12 mold steel
Length measurement
Encoder
Control mode
Mitsubishi PLC
Operating mode
Button + Mitsubishi Touch screen
Main motor power(kw)
15 KW (Depend on final design)
Hydraulic station power
5.5 K W (Depend on final design)
Total power(kw)
20.5 KW
Uncoiler's loading capacity
Max. Capacity: 3000kgs
Machine weight
About 7000kgs
Machine size
About 8*1.2*1.6m (Depend on final design)
Components of machine:
Decoiler
1set
Feeding & guiding device
1set
Pre-cutting device
1set
Main roll forming machine
1set
Punching equipment
1set
Hydraulic cutting system
1set
PLC Controlling system
1set
Run out table
1set
Process flow:
Decoiling the sheet → Leveling sheet→ Roll forming→ Measure length and cutting→ the Purline to the supporter
PLC Controller

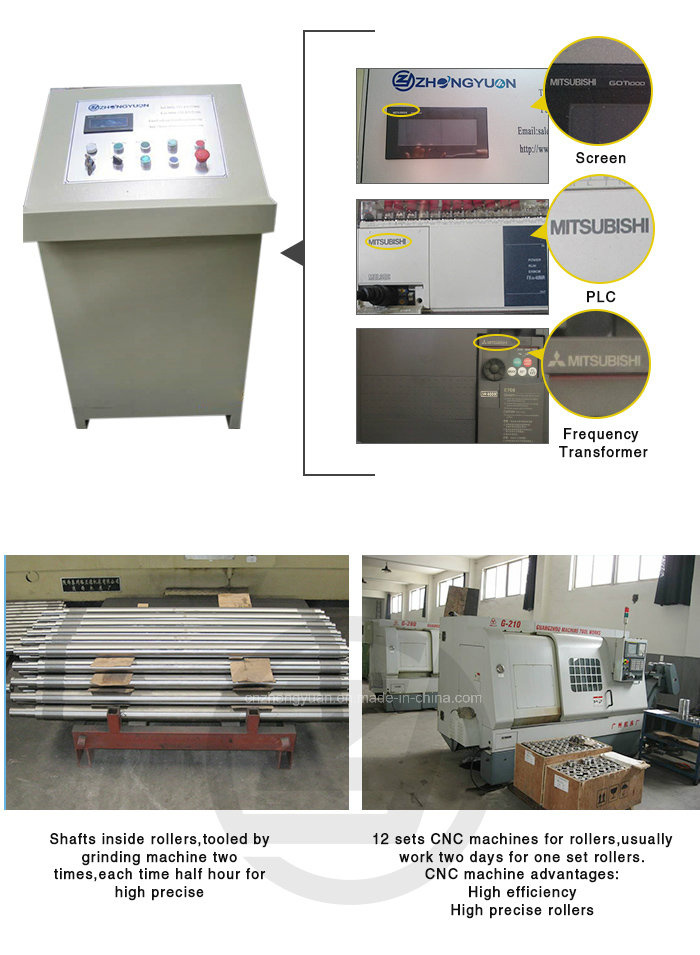

Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!

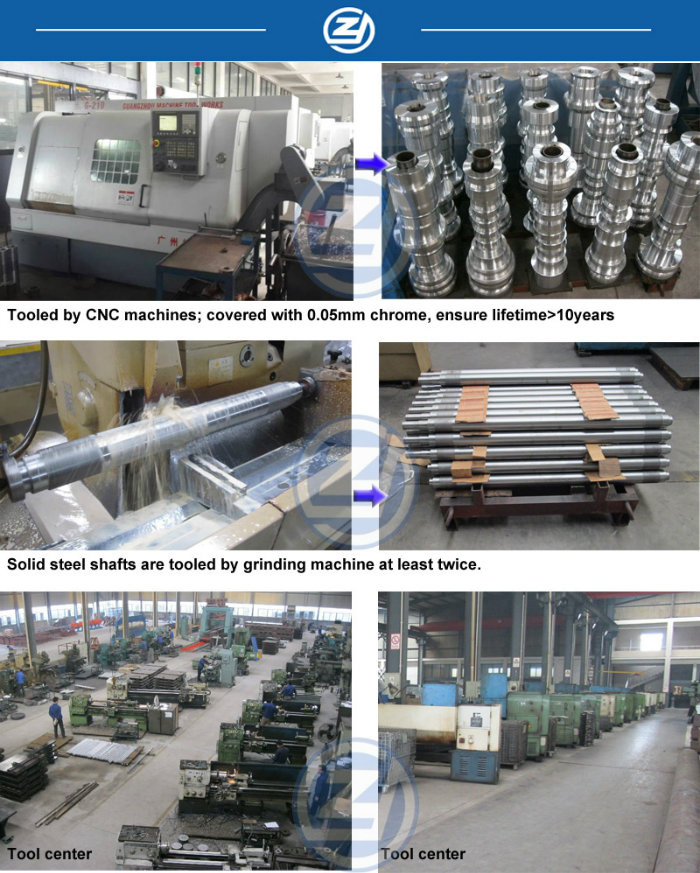

Process of rollers and shafts 82mm solid steel, Cr12 mould steel rollers
Why us? 1. Customize roll forming machines since 2003.
2. Capacity: 12-15 sets/month
3. Delivery: in only 5-8 weeks for urgent order
4. Company occupies 6650, in which 5650 for workshops
5. Have our own tool center. 12 sets CNC machines.
Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
Process of rollers and shafts
