| Prod Model: |
ZYYX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE |
| Machine Size: |
8*1*1.4m |
| Weight: |
7tons |
| Main Motor: |
15kw |
| Forming Speed: |
10m/Min |
| Operation Language: |
English or as Per Client`S Required |
| Rollers Material: |
No.45 Forged Steel with Hard Chrome |
| Cutter Material: |
Cr12 Mould Steel with Quench Treatment |
| Cutting Style: |
Automatic Cut to Length |
| Shafts For Rollers: |
Grand Twice, 72mm Diameter Solid Steel |
| Forging Forming Method: |
Cold Roll Forming |
Product Description

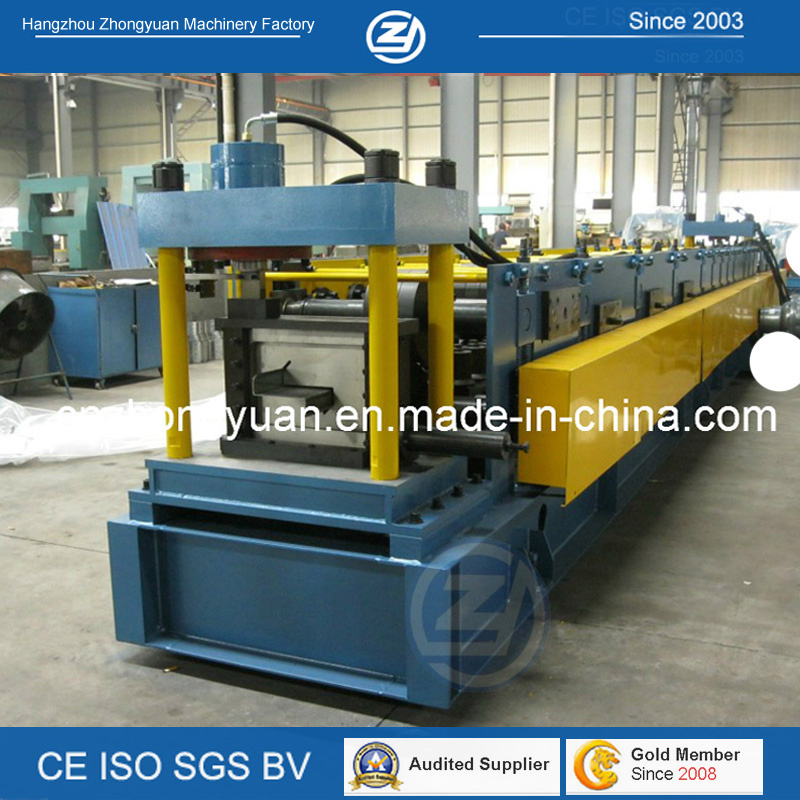

Z Purlin Roll Forming MachineWhy choose this machine?
1. Designed by 15 years experienced R&D members with lifetime seivices
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.
Machine spec.
1. Size: about 8*1*1.4m (L*W*H)
2. Weight: About 7ton
3. Color: Make-to-order
4. Forming Speed: 10m/min.
5. Power : 380V/3Phase/ 50Hz
6. Main motor power: 15Kw(Depend on final design)
| Technical parameters |
| Item | Specification |
Raw Material | Type | galvanized coils |
| Thickness(mm) | 1.5-3.0 |
| Yield strength(mpa) | 235-345 |
| Roller material | Cr12 mould steel |
| Hardness of rollers | HRC58-60 |
| Shaft for rollers | Solid shaft with 82mm,processed with cylindrical grinder |
| Forming speed(m/min) | About 10-15 |
| Speed adjusting mode | Misubishi frequency transformer |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel |
| Length measurement | Nemicon Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | About15KW |
| Total power(kw) | About 20.5KW |
| Process flow | Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table |
|
|
| Components of machine |

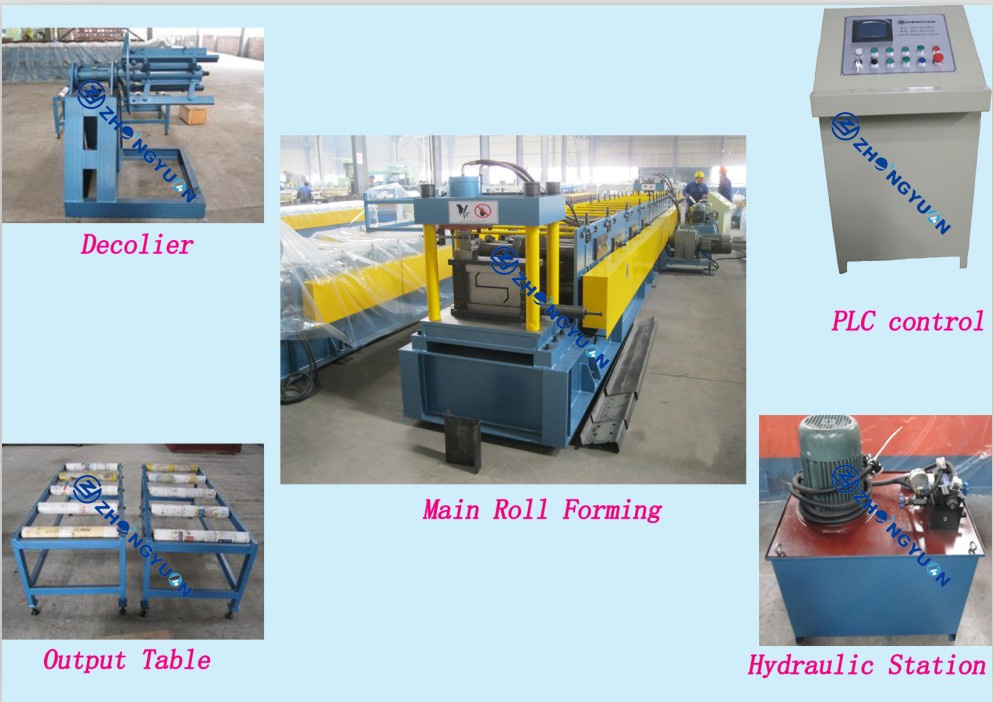

| Decoiler (manual decoiler and hydraulic decoiler for option) | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Mitsubishi Controlling system | 1set |
| Run out table | 1set
|
Machine overview
We care about user experience
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
We care about your concern
Delivery: in only 5-8 weeks
Container was sealed
Machine installing and training: engineer overseas sevices
Inspecting and testing machine: before shiping
We care about the "special"
Can not find the machine you need? Why not customize it!
We have: 12 years experience in making roll forming machine
15 years experience engineers
About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.
Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
