Roofing Roll Forming Machine
Price: |
US $ 23000-39000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Prod Model: |
ZYYX |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certificate: |
CE |
Machine Size: |
10*1.6*1.6m |
Machine Weight: |
9 Tons |
Decoiler Capacity: |
5tons or 10 Tons for Option |
Operation Language: |
English or as Per Client`S Required |
Rollers Material: |
No.45 Forged Steel with Hard Chrome |
Cutter Material: |
Cr12 Mould Steel with Quench Treatment |
Cutting Style: |
Automatic Hydraulic Cut to Length |
Shafts For Rollers: |
Grand Twice, ID72mm Solid Steel |
Quality System: |
ISO9001 |
Forging Forming Method: |
Metal Cold Forming |
Product Description

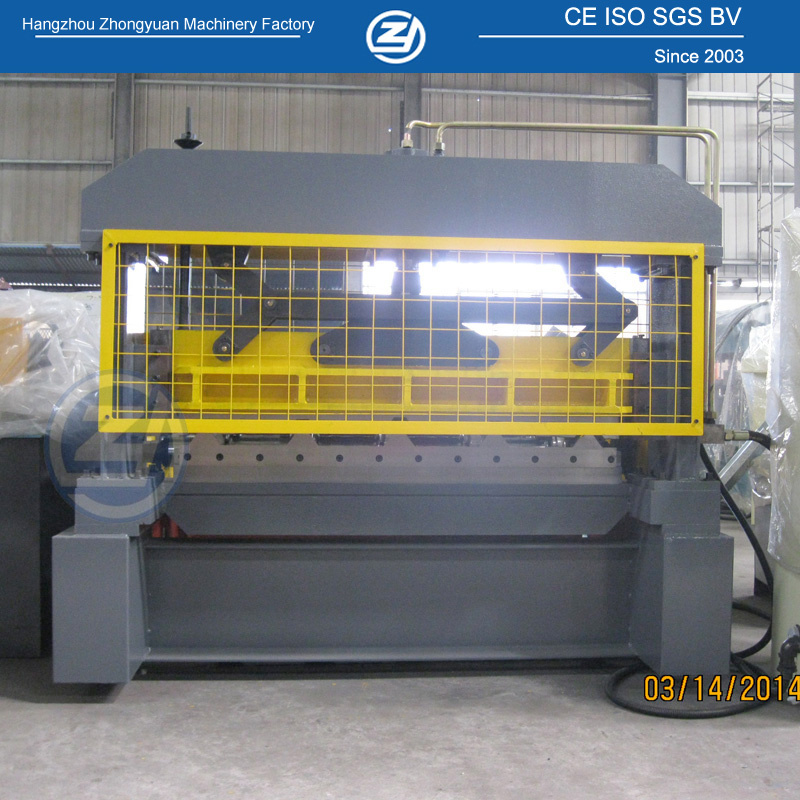

Roof/Wall Panel Roll Forming MachineWhy choose this roof/ wall panel roll forming machine?1. Designed by 15 years experienced R&D members with lifetime seivices
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.
Machine overview
Machine spec.:
1. Decoiler Max. Capacity: 5000kgs
2. Main motor power: 5.5Kw
Hydraulic station power: About 2.2Kw
3. Cutting length: Cut-to-length
4. Size: about 10*1.6*1.6m (L*W*H)
5. Weight: About 9ton
6. Forming Speed: 15m/min.
7. Power : 380V/3Phase/ 50Hz
ParametersItem | Specification |
Material | Type | Pre-painted steel coil & galvanized coils |
Thickness (mm) | 0.4-0.7 |
Yield strength (mpa) | 235-345 |
Roller material | 45#Chrome steel |
Forming speed(m/min) | About 15 |
Speed adjusting mode | AC Frequency |
Roller drive | Decelerating motor + Chain drive |
Cutting mode | Hydraulic cutting |
Cutter material | Cr12 mold steel |
Length measurement | Encoder |
Control mode | Mitsubishi PLC |
Operating mode | Button + Mitsubishi Touch screen |
Main motor power (kw) | 5.5 kw (Depend on final design) |
Hydraulic station power | 2.2 kw (Depend on final design) |
Total power (kw) | 7.7 kw |
Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) |
Machine`s size | About 10*1.6*1.6m (Depend on final design) |

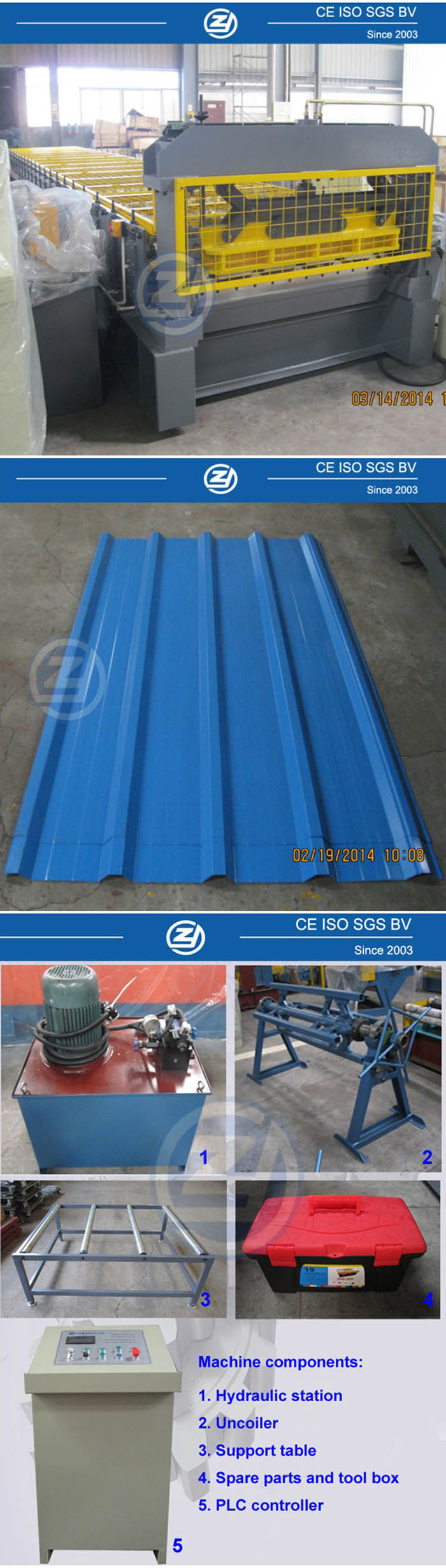

Components of machineDecoiler (manual/ hydraulic decoiler for option) | 1set |
Feeding & guiding device | 1set |
Main roll forming machine | 1set |
Hydraulic cutting system | 1set |
Controlling system | 1set |
Run out table (auto. Stacker for option) | 1.5m/ pc, 2 pcs |
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out TablePacking:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
Delivery : about 50 days after received advaced payment
