| Prod Model: |
B series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spare Parts Supply: |
for Whole Year |
| After-Sale Service: |
for Whole Using Year |
| Test&Installation: |
Engineer Assigned |
| Motor Type: |
AC Motor |
| Type: |
Ball Mill |
| Condition: |
New |
Product Description

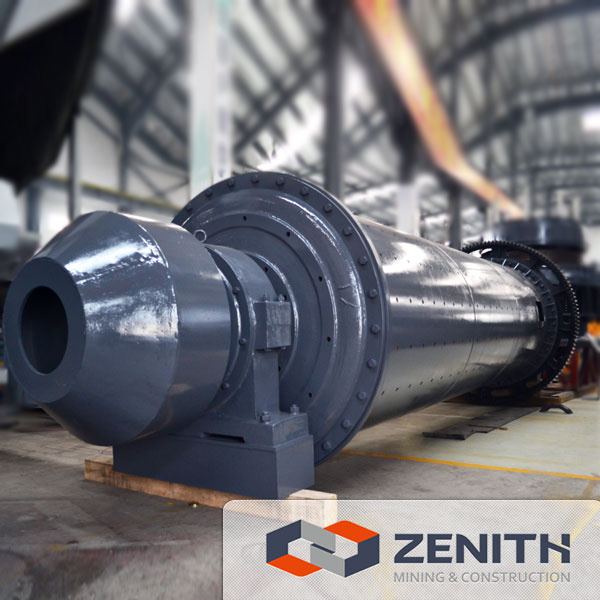

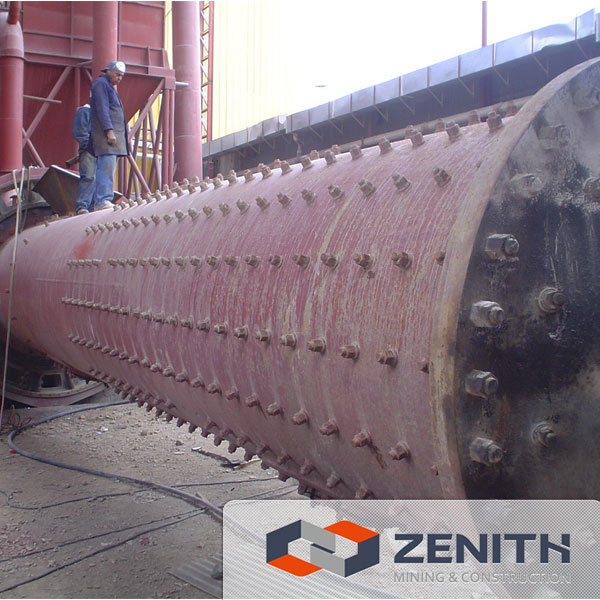

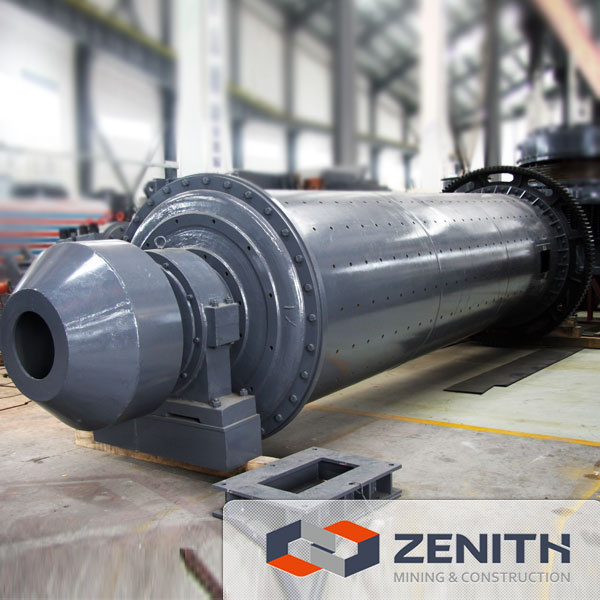

Ball mill machine introduction and Application:
In our Factory Workshop, there are Ball mill, cement ball mill, coal ball mill, raw material ball mill, rod ball mill, intermittent ball mill. etc, in recent years, our company have developed many kinds of ball mill, such as 4.0*60m ball mill. Shanghai Zenith have almost 60 years ball mill production experiences, and we are an international enterprise which is engaged in large and medium-sized series of mining machinery, crushing equipment, grinding equipment, sand system equipment.
Ball Mill machineFeatures And Benefits
1. Our ball mill has an Easy and safe operation
2. Our ball mill's performance is Stable
3. Even product size
4. Low energy consumption
5. Low investment, high return
6. ISO9001: 2000
7. Excellent performance
8. Low operation cost
9. Competitive price
Working Process of our ball mill:
The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished. Note: The Product can be searched like ball mill, ball mill machine, equipment ball milling, grinding ball mill, ball mill machine, ball mill equipment, ball mill grinding machine.
Ball mill Main structure:
Ball mill is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control ) and so on. The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This ball mill run steadily and works reliably.
Ball mill machine technical data:
|
Specification (Dia×Length) |
Rotating speed (r/min) |
Feed size (mm) |
Capacity (t/h) |
Grinding media load (t) |
Main motor |
Main reducer |
Weight(t) |
|
Model |
Power(kw) |
Rotating speed (r.p.m) |
Model |
Reduction ratio |
|
φ2.2×7 |
21.4 |
≤3 |
20~25 |
31 |
YR148-8 |
380 |
740 |
ZD70-9 |
5 |
49 |
|
φ2.2×13 |
21.6 |
≤25 |
33~37 |
58~60 |
YR630-8/1180 |
630 |
740 |
MBY630 |
5.6 |
53.4 |
|
φ2.4×13 |
21 |
≤25 |
45~50 |
65~70 |
YR800-8/1180 |
800 |
740 |
JDX710 |
5.6 |
131 |
|
φ2.6×13 |
20 |
≤25 |
45~46 |
80t(max) |
YR1000-8/1180 |
1000 |
740 |
TDX800 |
6.3 |
153 |
|
φ6.2×6.4 |
18.5 |
≤25 |
32~41 |
86~90.5 |
TDMK1000-36 |
1000 |
740 |
|
|
134 |
