| Prod Model: |
RF-CT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Cable Tray Rollformer |
| Loading Port: |
Shanghai , China |
| Place Of Orgin: |
Wuxi, China |
| Roll Forming Speed: |
12-15m/Min |
| Material Thickness: |
1.5-2.0mm |
| Roller Material: |
Gcr15, HRC58-62 |
| Main Motor Power: |
15kw |
| PLC: |
Panasonic, Japan |
| Delivery Time: |
45 Days After Deposit |
| Forging Forming Method: |
Mold Forging |
Product Description

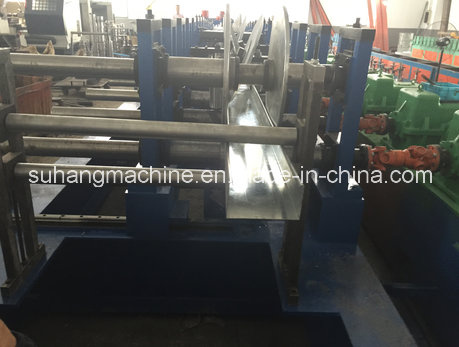

1.5-2.0mm Thickness Automatic Cable Tray Roll Forming Machine
Technical Data:
1. Suitable plate material thickness: 1.5-2.0mm, galvanized steel or blank steel
2. Forming speed: 12-15m/min
3. Foring stations: According to different profiles, changing by 5 sets cassettes
4. Roller material: GCr15, HRC58-62
5. Shaft material: 45# steel
6. Drive system: Chain drive 1.5 inches 20A
7. Main motor power: 15Kw
8. Cutting material: Cr12Mov
9. PLC: Panasonic, Japan
10. Encoder: Omron, Japan
11. Electric Parts: Schneider
| S.N | Equipment name | Quantity |
| 1 | 5T hydraulic uncoiler | 1 set |
| 2 | Leveling device | 1 set |
| 3 | Servo feeding device | 1 unit |
| 4 | Press machine | 1 unit |
| 5 | Main roll forming machine | 1 set |
| 6 | Hydraulic station | 1 set |
| 7 | Control system
( including control box) | 1 set |
| 8 | Out tables | 2 units |
| 9 | Spare parts | 1 package |
Wuxi Suhang Machinery Manufacturing Co., Ltd. is a comprehensive enterprise combining production, sales and services. We are mainly engaged in providing machineries and equipments.
Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 70 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
We have our customers in different districts and continents. We sell products in the Middle East, Turkey, East Europe, Russia, South and East Asia and South America. Our factories are in Wuxi, which is just 100 km from Shanghai, just 45 min by the fast train. We have rich technology in design and manufacture for different requirements.
Our goal is to supply high quality products. We also try to guarantee timely delivery, all around services at reasonable cost. We have already established favorable relationships with many clients around the world. Working to extend our presence internationally, we are looking forward to cooperating with your company for mutual benefit. Please feel free to contact us.
Main product: C Purlin Roll Forming Machine; Z Purlin Roll Forming Machine; C/Z Iinterchangeable Purlin Roll Forming Machine Standing Seam Forming Machine; Bemo Sheet Forming Machine; Cold Roll Forming Machine; Roof Deck Forming Machine; Floor Deck Forming Machine; Guardrail Forming Machine; Glazed Tile Forming Machine; Corrugated Forming Machine; Double Layer Forming Machine; K Span Forming Machine; Hat Purlin Forming Machine; Hydraulic Curving Machine; Roller Shutter Production Line; Garage Door Production Line; Tapered Sheet Forming Machine, welcome to visit our factory!
