| Prod Model: |
RF-RC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Roofing Cladding Roll Forming Machine |
| Controlling System: |
PLC Computer Control |
| Place Of Origin: |
Jiangsu, China (Mainland) |
| Brand Name: |
Suhang |
| Voltage: |
380V |
| Dimension(L*W*H): |
About2.1m*1.3m*1.2m |
| Forging Forming Method: |
Mold Forging |
Product Description

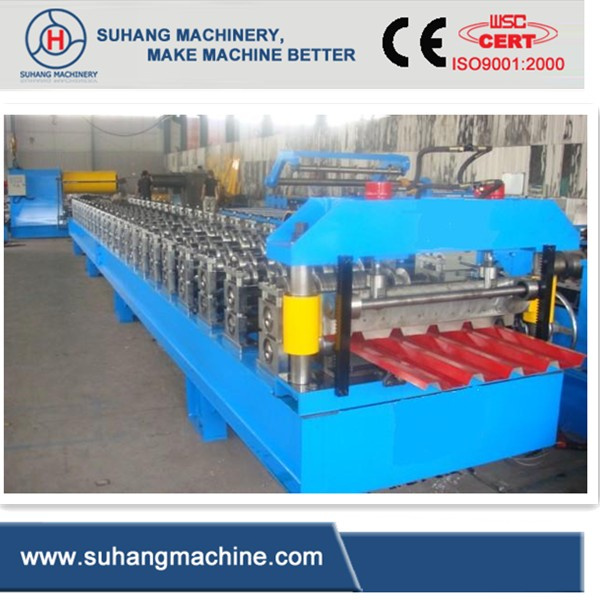

Roofing Cladding Roll Forming Machine
Specifications
1. Controller: PLC
2. Import components
3.12 months warranty
4. Factory in Wuxi
Technical Data
1. Material thickness: 0.7-1.2mm for color coated steel
2. Forming speed: 4-8m/min
3. Roller stands: 16 stands
4. Roller material: 45# steel, coated with chrome, heat treatment, HRC58-62
5. Shaft diameter and material: 70, 45# steel, heat treatment, HRC58-62
6. Main motor power: 7.5Kw
7. Hydraulic cutting power: 4Kw
8. Hydraulic pressure: 12Mpa
9. Power supply: 380V, 50Hz, 3Phase
10. Cutting material: Cr12
11. Control system: PLC with touch screen
12. Main machine weight: 6-7Tons
13. Transmission type: One inch chain drive
TRANSPORTATION
All goods will be shipped to your country, containers number will be decided with how many machines would you choose
Installation of the machine
The individual components of the machine are installed according to the layout and prepared for the commissioning.
The installation comprises of:
- Installation by Suhang service technicians.
- The following services are included:
- Installation of the machine components.
- Adjustment of the machine components.
- Connection of all motors to the control cabinet.
- Installation of the required safety devices.
Delivery extent does not comprise of:
- Media supply (electrics, etc. )to the machine(control cabinet)
- Raw material, process material
- Raw material for test
- Transport and lifting devices
- Auxiliary staff.
The operators of the plant should be present during the installation in order to become familiar with the new machines.
Wuxi Suhang Machinery Manufacturing Co., Ltd. is a comprehensive enterprise combining production, sales and services. We are mainly engaged in providing machineries and equipments.
Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 70 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
We have our customers in different districts and continents. We sell products in the Middle East, Turkey, East Europe, Russia, South and East Asia and South America. Our factories are in Wuxi, which is just 100 km from Shanghai, just 45 min by the fast train. We have rich technology in design and manufacture for different requirements.
Our goal is to supply high quality products. We also try to guarantee timely delivery, all around services at reasonable cost. We have already established favorable relationships with many clients around the world. Working to extend our presence internationally, we are looking forward to cooperating with your company for mutual benefit. Please feel free to contact us.
Main product: C Purlin Roll Forming Machine; Z Purlin Roll Forming Machine; C/Z Iinterchangeable Purlin Roll Forming Machine Standing Seam Forming Machine; Bemo Sheet Forming Machine; Cold Roll Forming Machine; Roof Deck Forming Machine; Floor Deck Forming Machine; Guardrail Forming Machine; Glazed Tile Forming Machine; Corrugated Forming Machine; Double Layer Forming Machine; K Span Forming Machine; Hat Purlin Forming Machine; Hydraulic Curving Machine; Roller Shutter Production Line; Garage Door Production Line; Tapered Sheet Forming Machine, welcome to visit our factory!
