| Prod Model: |
SRH-64S, SRH-64L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Product Description

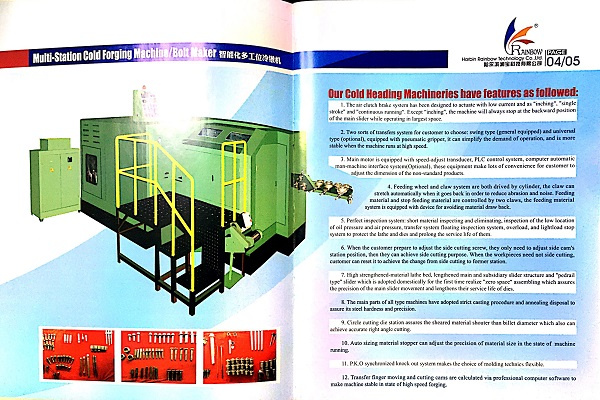

SR series passed CE certification, mainly produce 3die 3 blow, 4 die 4 blow, 5 die 5 blow, 6 die 6 blow multi station heading machine, boltmaker machine including thread rolling unit and tapping machine. The machine has high efficiency and consequently used to produce various fasteners, nonstandard products for automobile, motorcycle, bicycle and basically machinery work piece. Also produce nonstandard-machine in accordance with special requirement
| MODEL | UNIT | SRH-134LL | SRH-164S | SRH-164LL | SRH-204L | SRH-204LL | SRH-254S | SRH-254L |
| FORGING STATION | No. | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
|
| FORGING FORCE | kgs | 120,000 | 210,000 | 210,000 | 350,000 | 350,000 | 430,000 | 430,000 |
|
| MAX. CUT-OFF DIA. | mm | φ15 | φ18 | φ18 | φ23 | φ23 | φ26 | φ30 |
|
| MAX. CUT-OFF LENGTH | mm | 310 | 220 | 380 | 240 | 360 | 270 | 340 |
|
| OUTPUT | pcs/min | 45 - 70 | 60 - 100 | 40 - 60 | 50 - 85 | 40 - 60 | 40 - 60 | 35 - 50 |
|
| MAX. P.K.O LENGTH | mm | 30 | 30 | 46 | 46 | 46 | 40 | 46 |
|
| DIE KICK OUT LENGTH | mm | 280 | 170 | 320 | 220 | 325 | 175 | 280 |
|
| MAIN MOTOR | kw | 37 | 45 | 55 | 75 | 75 | 110 | 110 |
|
| CUT-OFF QUILL | mm | φ 55*70L | φ 60*90L | φ 64*100L | φ 75*120L | φ 75*120L | φ 80*130L | φ 99*150L |
|
| PUNCH SIZE | mm | φ 60*229L | φ 75*185L | φ 75*185L | φ 90*215L | φ 90*215L | φ 120*270L | φ 120*270L |
|
| DIE SIZE | mm | φ 86*305L | φ 100*190L | φ 100*345L | φ 125*240L | φ 125*345L | φ 140*250L | φ 148*300L |
|
| DIE PITCH | mm | 110 | 120 | 120 | 140 | 140 | 160 | 160 |
|
| APPROX. WEIGHT | kgs | 38,000 | 43,000 | 60,000 | 62,000 | 75,000 | 105,000 | 131,000 |
|
| DIA. OF PRODUCTION | mm | 8 - 12.7 | 10 - 16 | 10 - 16 | 12 - 20 | 12 - 20 | 14 - 25.4 | 16 - 25.4 |
|
| LENGTH OF PRODUCTION | mm | 50 - 250 | 16 - 150 | 80 - 300 | 20 - 202 | 100 - 305 | 30 - 160 | 50 - 252 |
|
| MODEL | SRH-103L | SRH-133S | SRH-133L | SRH-163S |
| FORGING STATION | NO.3 | NO.3 | NO.3 | NO.3 |
| FORGING FORCE KGS | 80,000 | 115,000 | 115,000 | 190,000 |
| MAX. CUT-OFF DIA. MM | φ12 | φ15 | φ15 | φ18 |
| OUTPUT PCS/MIN | 60TO130 | 70TO150 | 60TO90 | 60TO140 |
| MAX. P.K.O LENGTH MM | 15 | 26 | 25 | 30 |
| MAIN MOTOR KW | 22 | 30 | 30 | 45 |
| CUT-OFF QUILL MM | φ45*59L | φ63*69L | φ55*70L | φ60*90L |
| PUNCH SIZE MM | φ53*112L | φ60*130L | φ60*179L | φ75*185L |
| DIE SIZE MM | φ75*200L | φ86*135L | φ86*265L | φ110*190L |
| DIE PITCH MM | 90 | 98 | 110 | 120 |
| APPROX.WEIGHT KGS | 19,500 | 19,500 | 31,000 | 40,000 |
| DIA. OF PRODUCTION MM | 6 -10 | 8 -12.7 | 8 -12.7 | 10 -16 |
| LENGTH OF PRODUCTION MM | 20 -152 | 15 -120 | 50 -210 | 10 -152 |
