North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Processing Object:
Metal
Molding Style:
Forging
Product Description

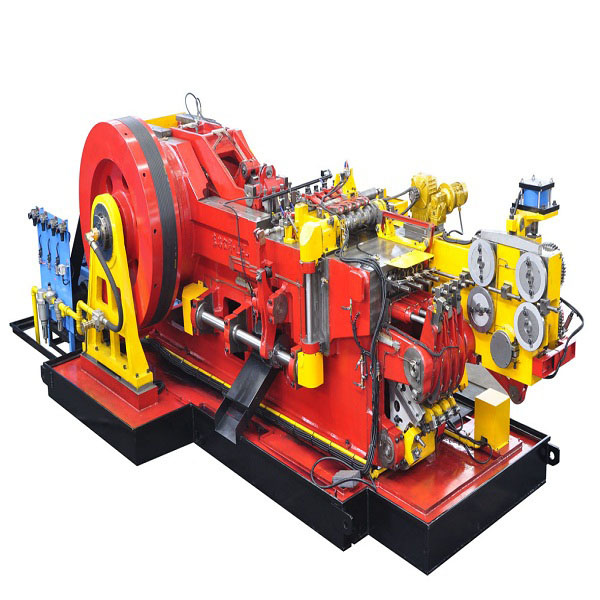

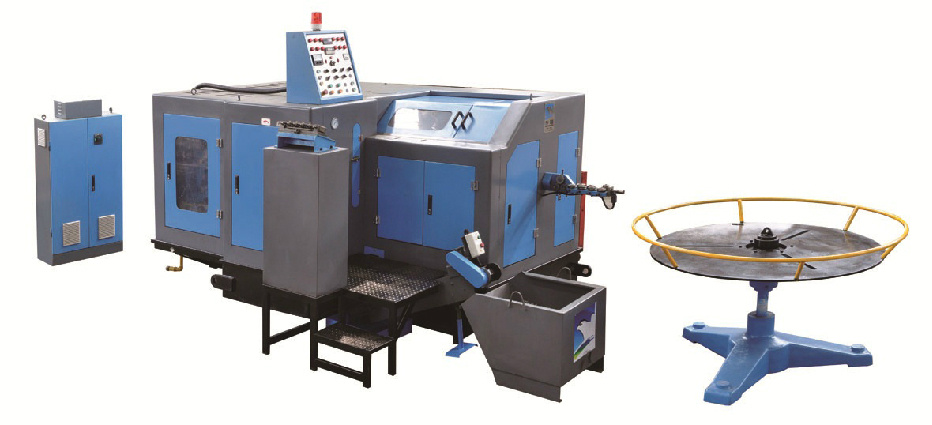

Auto Multi-station Cold forging fomer is a specialized machine tool with high efficency and automation among forging machinery. Cold forging fomers are used as an important means for producing different kinds of bolts, screws, rivets and nuts in the field of fastener industry. The formers are also widely used in different national economic territories for producing fasteners and abnormal non-standard parts such as aviation,steamer,machinery, rail traffic, vehicle,motorcycle,bicycle,sewing machine, construction,furniture, light industry and daily necessities, etc.
Model
Unit
RBF-64S
RBF-84S
RBF-104S
RBF104L
RBF-134L
Forging force
Kgs
35.000
60.000
80.000
80.000
120.000
Max.cut-off dia.
mm
8
10
12
12
15
Max.cut-off length
mm
80
115
135
185
190
Output rate
pcs/min
140-210
120-180
90-140
80-130
75-110
P.K.O. Stroke
mm
12
18
20
30
40
K.O. Stroke
mm
70
92
118
160
175
Main ram stroke
mm
110
160
190
262
270
Main motor power
Kw
15
22
30
30
37
Overall dims. of cut off die
mm
30x45L
50x50L
45x59L
45x59L
63x69L
Overall dims. of punch die
mm
40x90L
45x125L
53x115L
53x115L
60x130L
Overall dims. of main die
mm
50x85L
60x130L
75x135L
75x185L
86x190L
Die pitch
mm
60
70
90
94
110
Approx. weight
T
8
14
18
21
28
Applicable bolt dia
mm
3-6
5-8
6-10
6-10
8-12.7
Shank length of blank
mm
10-65
15-90
15-110
20-152
20-160
HARBIN RAINBOW TECHNOLOGY Co., Ltd. Comes from China National Machinery Import and Export Corp. Harbin branch. By many years market development and experience accumulation, now we have became the biggest Chinese fastener equipment dealer and turnkey consultants of fasteners manufacturing project for abroad customers.
We are supplying high quality and reliable machines for the entire fastener industry with our professional and timely after sale service, our main products include wire drawing machine, Bolt Maker, Nut Maker, Part Former, Heading Machine, Thread Rolling Machine and Mesh Belt Furnace.
With our business reputation and professionalism, our company has experienced a significant growth in business during the recent years and invested in following companies: Zhejiang Shengrui Machinery Co., Ltd., Zhejiang Dongrui Machinery Industry Co., Ltd., Suzhou Industrial Park Wuzhong Electric Furnace Manufacturing Co., Ltd., and Wuxi Pingsheng Science & Technology Co., Ltd., etc. We do these factories' foreign market developing and have received highly praises from a lot of customers.
We have established reputation in countries such as India, Iran, US, Europe and Southeast Asia where we have core customer bases. Meanwhile, we are well respected by the domestic factories and the customers in the mechanical and electrical business.
We have the confidence, backed by our professional knowledge and experience in the mechanical and electrical business, to develop the foreign markets for our home enterprises and to open up the Chinese markets for the companies abroad.
We abide by the principles of honesty, credibility, and mutual-benefit, and do our best to serve clients and customers both at home and abroad. With our top-notch professional knowledge and trading experience, we have seen our market development ability and actual business growth with an increasingly faster pace. We sincerely look forward to working with you to facility your company's foreign market development and China market expansion. Let's build a great future together!
