| Prod Model: |
SRH-103L,133S,133L,163S,134L,164S,164LL,204L,254S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Product Description

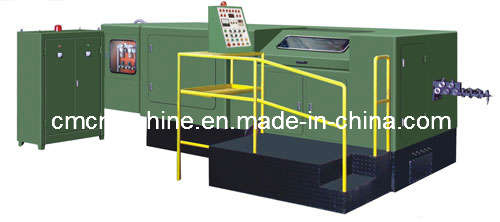

SR series passed CE certification, mainly produce 3die 3 blow, 4 die 4 blow, 5 die 5 blow, 6 die 6 blow multi station heading machine, boltmaker machine including thread rolling unit and tapping machine. The machine has high efficiency and consequently used to produce various fasteners, nonstandard products for automobile, motorcycle, bicycle and basically machinery work piece. Also produce nonstandard-machine in accordance with special requirement
| MODEL | UNIT | SRH-134LL | SRH-164S | SRH-164LL | SRH-204L | SRH-204LL | SRH-254S | SRH-254L |
| FORGING STATION | No. | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
|
| FORGING FORCE | kgs | 120,000 | 210,000 | 210,000 | 350,000 | 350,000 | 430,000 | 430,000 |
|
| MAX. CUT-OFF DIA. | mm | φ15 | φ18 | φ18 | φ23 | φ23 | φ26 | φ30 |
|
| MAX. CUT-OFF LENGTH | mm | 310 | 220 | 380 | 240 | 360 | 270 | 340 |
|
| OUTPUT | pcs/min | 45 - 70 | 60 - 100 | 40 - 60 | 50 - 85 | 40 - 60 | 40 - 60 | 35 - 50 |
|

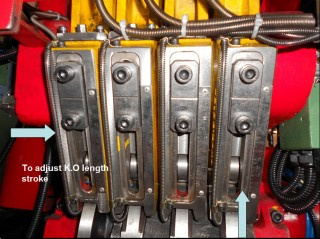

| MAX. P.K.O LENGTH | mm | 30 | 30 | 46 | 46 | 46 | 40 | 46 |
|
| DIE KICK OUT LENGTH | mm | 280 | 170 | 320 | 220 | 325 | 175 | 280 |
|
| MAIN MOTOR | kw | 37 | 45 | 55 | 75 | 75 | 110 | 110 |
|
| CUT-OFF QUILL | mm | φ 55*70L | φ 60*90L | φ 64*100L | φ 75*120L | φ 75*120L | φ 80*130L | φ 99*150L |
|
| PUNCH SIZE | mm | φ 60*229L | φ 75*185L | φ 75*185L | φ 90*215L | φ 90*215L | φ 120*270L | φ 120*270L |
|
| DIE SIZE | mm | φ 86*305L | φ 100*190L | φ 100*345L | φ 125*240L | φ 125*345L | φ 140*250L | φ 148*300L |
|
| DIE PITCH | mm | 110 | 120 | 120 | 140 | 140 | 160 | 160 |
|
| APPROX. WEIGHT | kgs | 38,000 | 43,000 | 60,000 | 62,000 | 75,000 | 105,000 | 131,000 |
|
| DIA. OF PRODUCTION | mm | 8 - 12.7 | 10 - 16 | 10 - 16 | 12 - 20 | 12 - 20 | 14 - 25.4 | 16 - 25.4 |
|
| LENGTH OF PRODUCTION | mm | 50 - 250 | 16 - 150 | 80 - 300 | 20 - 202 | 100 - 305 | 30 - 160 | 50 - 252 |
|
| MODEL | SRH-103L | SRH-133S | SRH-133L | SRH-163S |
| FORGING STATION | NO.3 | NO.3 | NO.3 | NO.3 |
| FORGING FORCE KGS | 80,000 | 115,000 | 115,000 | 190,000 |
| MAX. CUT-OFF DIA. MM | φ12 | φ15 | φ15 | φ18 |
| OUTPUT PCS/MIN | 60TO130 | 70TO150 | 60TO90 | 60TO140 |
| MAX. P.K.O LENGTH MM | 15 | 26 | 25 | 30 |
| MAIN MOTOR KW | 22 | 30 | 30 | 45 |
| CUT-OFF QUILL MM | φ45*59L | φ63*69L | φ55*70L | φ60*90L |
| PUNCH SIZE MM | φ53*112L | φ60*130L | φ60*179L | φ75*185L |
| DIE SIZE MM | φ75*200L | φ86*135L | φ86*265L | φ110*190L |
| DIE PITCH MM | 90 | 98 | 110 | 120 |
| APPROX.WEIGHT KGS | 19,500 | 19,500 | 31,000 | 40,000 |
| DIA. OF PRODUCTION MM | 6 -10 | 8 -12.7 | 8 -12.7 | 10 -16 |
| LENGTH OF PRODUCTION MM | 20 -152 | 15 -120 | 50 -210 | 10 -152 |
HARBIN RAINBOW TECHNOLOGY Co., Ltd. Comes from China National Machinery Import and Export Corp. Harbin branch. By many years market development and experience accumulation, now we have became the biggest Chinese fastener equipment dealer and turnkey consultants of fasteners manufacturing project for abroad customers.
We are supplying high quality and reliable machines for the entire fastener industry with our professional and timely after sale service, our main products include wire drawing machine, Bolt Maker, Nut Maker, Part Former, Heading Machine, Thread Rolling Machine and Mesh Belt Furnace.
With our business reputation and professionalism, our company has experienced a significant growth in business during the recent years and invested in following companies: Zhejiang Shengrui Machinery Co., Ltd., Zhejiang Dongrui Machinery Industry Co., Ltd., Suzhou Industrial Park Wuzhong Electric Furnace Manufacturing Co., Ltd., and Wuxi Pingsheng Science & Technology Co., Ltd., etc. We do these factories' foreign market developing and have received highly praises from a lot of customers.
We have established reputation in countries such as India, Iran, US, Europe and Southeast Asia where we have core customer bases. Meanwhile, we are well respected by the domestic factories and the customers in the mechanical and electrical business.
We have the confidence, backed by our professional knowledge and experience in the mechanical and electrical business, to develop the foreign markets for our home enterprises and to open up the Chinese markets for the companies abroad.
We abide by the principles of honesty, credibility, and mutual-benefit, and do our best to serve clients and customers both at home and abroad. With our top-notch professional knowledge and trading experience, we have seen our market development ability and actual business growth with an increasingly faster pace. We sincerely look forward to working with you to facility your company's foreign market development and China market expansion. Let's build a great future together!
