| Prod Model: |
RF-SF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
5.5kw Main Motor Power Stud Framing Roll Forming M |
| Brand: |
Suhang |
| Place Of Orgin: |
Wuxi, China |
| Package: |
Film and Steel |
| Port Of Loading: |
Shanghai, China |
| Control System: |
PLC with Touch Screen |
| Material Thickness: |
0.4-0.8mm Galvanize |
| Rolling Speed: |
10-12m/Min |
| Delivery Time: |
45 Days After Deposit |
| Forging Forming Method: |
Mold Forging |
Product Description

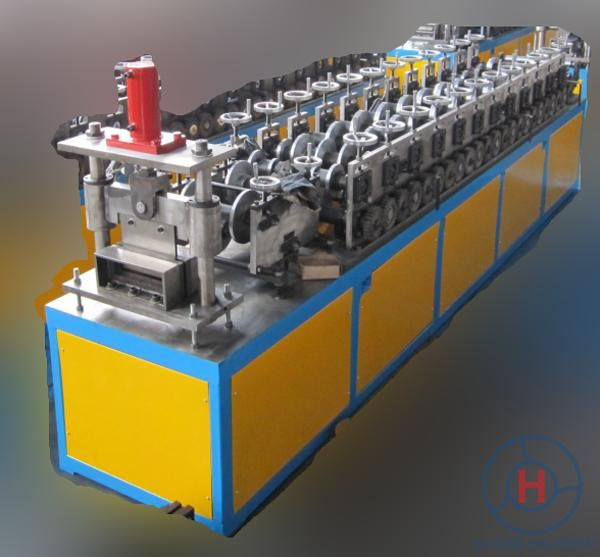

5.5kw Main Motor Power Stud Framing Roll Forming Machine with PLC Panasonic
Technical Parameter
1. Steel Sheet Thickness: 0.4-0.8mm (depend on requirement )
2. Hydraulic power: 4Kw
3. Transmission way: chain
4. Chain: 1 inch single chain
5. Capacity of Decoiler: 3 Ton passive decoiler
6. Forming Speed: 10-15m/min
7. Roller Groups: about 13 stations
8. Roller Material: 45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62
9. Roller Diameter: 100mm
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 5.5 Kw
Applications
Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...
Advantage for Stud And Track
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Working Flow of Stud And Track
Decoiler----Feeding---Roll forming---Cutting---Run out tables
Main Components
1. Decoiler---------------------------------------------------- 1Set
2. Main roll forming machine----------------------------- 1Set
3. Hydraulic station----------------------------------------- 1Set
4. Cutting device-------------------------------------------- 1Set
5. Finished products tabel--------------------------------- 2Set
6. PLC control system-------------------------------------- 1Set
7. Punching device------------------------------------------ 1Set
Company Introduction
Wuxi Suhang Machinery manufacturing Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
Wuxi Suhang Machinery Manufacturing Co., Ltd. is a comprehensive enterprise combining production, sales and services. We are mainly engaged in providing machineries and equipments.
Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 70 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
We have our customers in different districts and continents. We sell products in the Middle East, Turkey, East Europe, Russia, South and East Asia and South America. Our factories are in Wuxi, which is just 100 km from Shanghai, just 45 min by the fast train. We have rich technology in design and manufacture for different requirements.
Our goal is to supply high quality products. We also try to guarantee timely delivery, all around services at reasonable cost. We have already established favorable relationships with many clients around the world. Working to extend our presence internationally, we are looking forward to cooperating with your company for mutual benefit. Please feel free to contact us.
Main product: C Purlin Roll Forming Machine; Z Purlin Roll Forming Machine; C/Z Iinterchangeable Purlin Roll Forming Machine Standing Seam Forming Machine; Bemo Sheet Forming Machine; Cold Roll Forming Machine; Roof Deck Forming Machine; Floor Deck Forming Machine; Guardrail Forming Machine; Glazed Tile Forming Machine; Corrugated Forming Machine; Double Layer Forming Machine; K Span Forming Machine; Hat Purlin Forming Machine; Hydraulic Curving Machine; Roller Shutter Production Line; Garage Door Production Line; Tapered Sheet Forming Machine, welcome to visit our factory!
