| Prod Model: |
WH-VI-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Wh-VI-80 |
| Voltage: |
320-430V/50-60Hz |
| Power(W): |
80kw |
| Oscillation Frequency: |
20-150kHz |
| Host Weight: |
80kg±5% |
| Transformer Weight: |
77kg±5% |
| Temperature Protection: |
50 Degrees |
Product Description

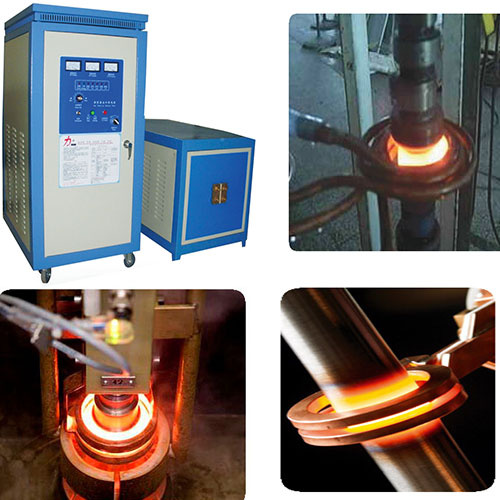

Made in china induction heating machinery to make bolt and nut 80KW
Forging capacity:4.5-5.2kg /minute
Temperature:1150 degree or higher
Brand:LIPAI(in chinese it means force and strength)
Name of our company: Zhengzhou Gou's electromagnetic induction heating equipment Co., Ltd.
Nature of our company: Manufacturer
Our history: Since 2003
Our Quality: popular worldwide ,hot selling in south Asia,Europe,Africa and other countries
Our after-sale service: one year free spare part replacement,lifelong technical support
Induction heating machinery to make bolt and nut 80KW applications :
It is mainly hot forging the workpiece to a certain temperature after heating(heating temperature according to different materials ),
through the press, forging bed or other forms of forging the workpiece into other shapes.
1. Case, table embryo, handle, mold accessories, kitchen utensils supplies, crafts, standard parts,
fasteners, machinery parts processing,
2.Brass Padlock, rivets, drill rod, drill with the hot extrusion and so on.
3. All kinds of bolt, nut hot forging;
4. Hot-rolled cannabis cobalt;
5. Diameter of 50 within all parts through hot forging;
Induction heating machinery to make bolt and nut 80KW advantages:
1,Our company adopts transistor (IGBT) high frequency power-saving up to 40-60% than vacuum tube,
saving 60% water, reduce investment by 75% in external support facilities.
2, a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
3, small size, light weight, easy to move, no million-volt high-voltage danger, safe operation.
4, high reliability, easy to maintain and improve the over voltage, over current, overheating, lack of, water and other self-protection.
5, use large scale integrated circuit digital automatic control, with manual, automatic, semi-automatic, and the lack of heat insulation
of cold sub-time control functions.
6, automatic frequency tracking, stepless power adjustment, easy to use, 10 minutes to learn to use.
7, the company has a complete sales service system and the treatment of professional engineers,
to ensure that you have no worry about technology or service.
Induction heating machinery to make bolt and nut 80KW technical parameter:
Model | WH-VI-80 |
Worker power | Three phrase 380V/50Hz |
Working voltage range (AC) | 342V~430V |
Max output power | 80KVA |
Oscillation frequency | 20-150KHz |
Continuous load rate | 100% |
Cooling water pressure | 0.1-0.3mpa |
Host weight | 80kg±5% |
Transformer weight | 77kg±5% |
Host dimensions(L*W*H)mm | 650*520*1100 |
Transformer dimensions (L*W*H)mm | 500*800*580 |

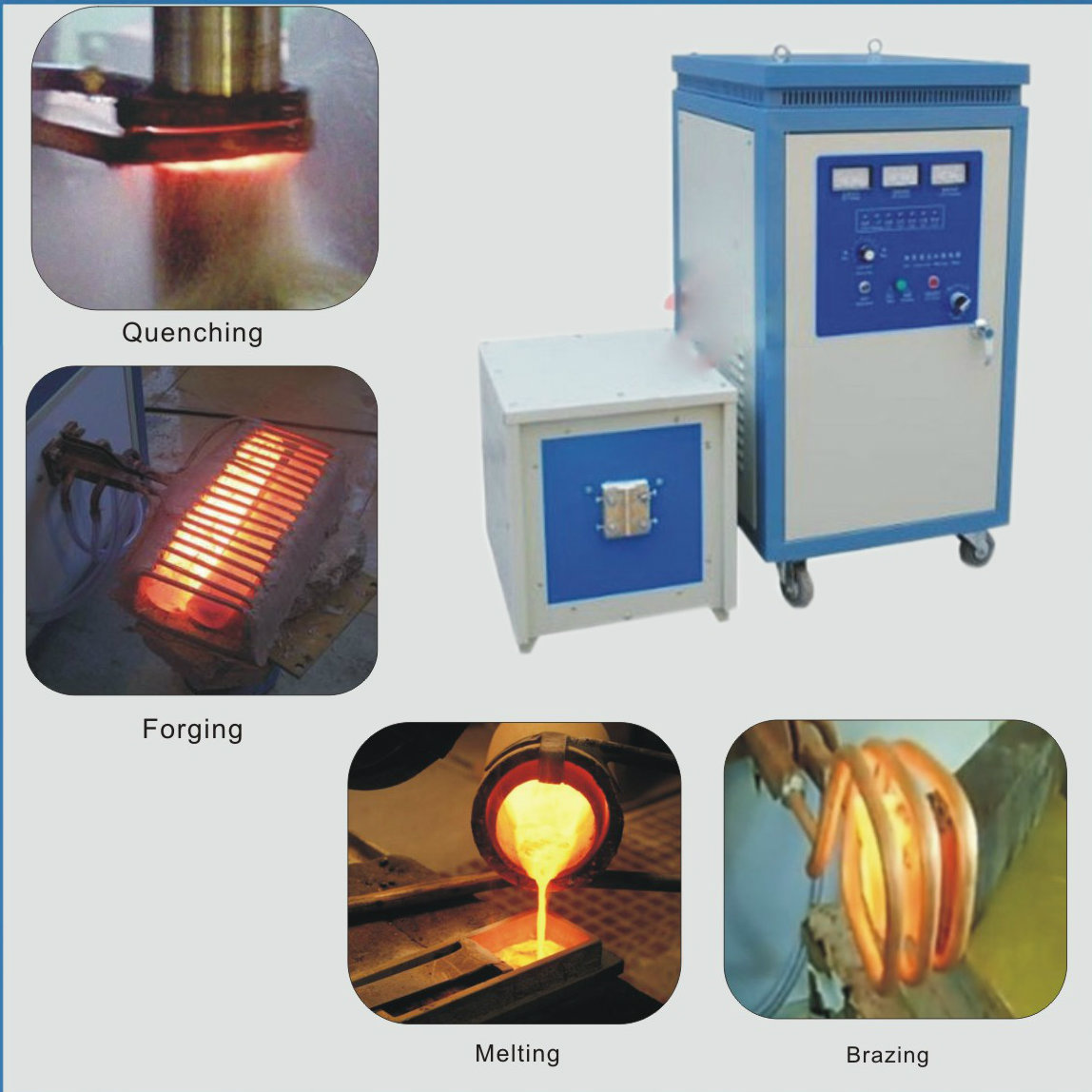

Particular recommended | Gear quenching, workpiece forging |
Temperature protection | 50 degrees |
We can offer different services :
1. Reply your inquiry within 24 working hours2. Experienced engineer instruct and sales communicate with you in fluent English.3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.4. Machine details and working video link for your reference5. Competitive price ,compare with the same industry6. Production: strict quality standard, to produce machine and induction coils.7. Debugging machine and only good machine will be sent.8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need Under all staff work hard, our products are more and more popular in domestic and foreign market. So far, LIPAI induction heating equipment has been exported to USA,Finland,Denmark,Poland,Portugal,Russia,Ukraine,Australia,New Zealand,Malaysia,Indonesia,Vietnam, India, Iran,Iraq,Uzbekistan, Kazakhstan,Turkey, Azerbaijan, Bulgaria, Macedonia, Brazil,Mexico,Chile, Argentina,,Ecuador, Algeria, Morocco, etc. other countries and regions. We will be more efforts, more active, increasing promotion of products in the international market, make induction heating technology better do a due contribution to the development of human industry. Warmly welcome customers from all over the world to order online or visit us for further negotiate cooperation FAQ
1. What's your MOQ ?At present we haven't strict policy for this,so welcome orders with any quantity.2. Are you a manufacturer or trade company ?Yes,you can assured that we are a producer with full experience doing business in domestic and oversea.3. We are not professional for your machine....................While it is not a stumbling block,our machine is easy to operate,no need to professional training,and the instruction manual and vedio sent to you are enough.What's more,we have professional engineers and they can solve all qoestions4. How about packaging ?.......if machine damaged,what should I do ?Usually machine is packed with wooden case and standard export carton,plywood carton or as your requirement.Damage haven't happened before,if happen,we will arrange replacement5. We haven't do business before,how can I trust your company and machine ?We have been GOLD supplier for three years with no complaints on Alibaba.and our machine have exported to Pakistan,Russia,Brazil,Egpt,India,South Africa and other countries and have a good feedback,If you need,we can provide their company names for your reference. 6. Have you done business with Chinese before ? If yes,welcome to visit our factoryIf not,donot worry about transportation,and we can arrange for you.
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
