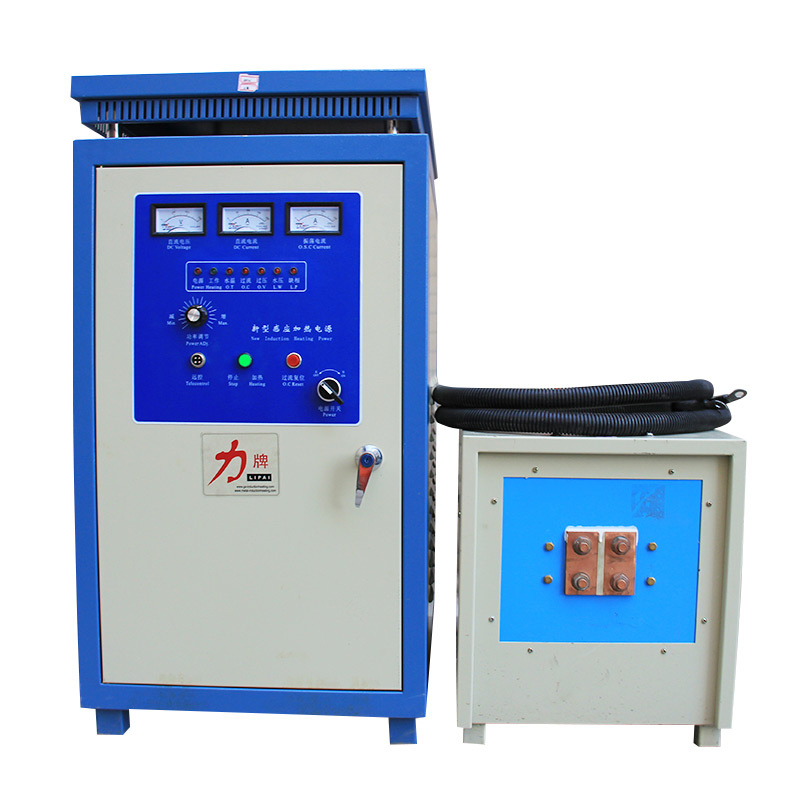

Induction Heating Machine Forging Steel with Energy Saving

Induction Heating Machine Forging Steel with Energy Saving
Price: US $ 4500-5000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: WH-VI-50
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: High Frequency Induction Heating Forging Machine
Color: Blue/White
Efficiency: 100%
Continuous Load Rate: 100%
Max Input Current: 75A
Market: Europe, South America, Asia, Africa, etc
Export Countries: All Over The World
Accessories: Coils, Foot Pedal, Operating Insturctions
After-Sales Service Provided: Engineers/Overseas Third-Party Support Available
Nature Of Company: Manufacturer
Type: Hot Forging
Forging Forming Method: Hot Forging

Product Description

   Hot selling supersonic frequency induction heating generator

supersonic  frequency induction heating generator product features:
1, energy efficient
Up to 98% thermal efficiency under the same conditions, can save electricity 75% compared with resistive heating method or more, shorter warming time for 6min.
2, reliable operation
Intelligent multi-loop control system and perfect protection system to ensure long-term safe and reliable operation of the equipment.
3, lower production costs
Heating part of the structure uses cables, heating cable itself does not generate heat, long service life. Avoid regular maintenance and periodic replacement of needed heating coil in contrast to resistive heating , almost have no maintenance costs in after-sale.
4, improve the working environment
HaveL little heat dissipation in the heating part, the surface can touch , improve the working environment.
5, intelligent multi-temperature control
use liquid crystal Victoria Ellis electromagnetic energy heating devices  ,so it can display real-time temperature and set temperature range.Built-in chip can intelligently control heating rate and output power according to the actual situation of flexible adjustment of raw plant.
6, the high temperature heating
Resistive heating power density is low, heat quickly to the outer space, and generally difficult heated to above 400 °C. But in The energy-efficient way, which has reactive power density, can be heated to temperatures above 600 °C.

supersonic frequency induction heating generator application:
1.Auto parts:Piston Rod, Gear, CAM, Brake Shoe, Transmission Rod, Steering Wheel quenching etc.

2.Motor Parts:the shaft hardening for rotor, the degrease of silicon steel plate for rotor, epoxy powder coating for rotor etc.

 3.Steel: the heating process for stainless steel tube, cramp iron, epoxy powder coating for steel tube, the hardening for the high tensile cramp iron, the heat-fusion for elevator pulley and shaft, the welding of steel tube, tube bending etc.

4.Hardware: the pre-forging for screws and nuts, silver soldering for lathe tool, the soldering for air gauge, the temper of pontil, the hardening of surface for high tensile screw, epoxy powder coating for locking nut etc.

 One
 Quenching/ Hardening auto parts, motorcycle accessories, wheel,  camshaft, gears, crankshaft,  connected rod, piston pin, crank pin,  valves, and etc
 Two Quenching/ Hardening various power gears, sprockets, all kinds of  shafts, spline shafts, axle mass and etc.
 Three Quenching/ Hardening all kinds of hydraulic components, preumatic  compenents, the piston of the column and etc.



Melting Furnace
 Model

 Steel and stainless
 steel

 Copper, gold, silver
 Aluminum
 30kw 2kg 10kg 3kg
 40kw 5kg 20kg 6kg
 50kw 10kg 30kg 10kg
 60kw 18kg 50kg 20kg
 80kw 25kg 100kg 30kg
 120kw 50kg 150kg 50kg




 One
 Plate heating, bending and forming, such as: brass, steel  strenching bending,  smashing head wire, heating wire nail,  stainless steel and ec
 Two Standard parts, fasteners through the hot forging, such as the  hardware through  heat, pliers, wrenches and other heat  through hot forging.
 Three Real axle and hot Forging, rotor, and other  parts of the thermal  loading.

The parameter of WH-VI-60:

Model

WH-VI-50

Worker power

Three phase 380V/50Hz

Working voltage range (AC)

342V~430V

Max input current

75A

Max output power

50KVA

Oscillation frequency

10~35KHz

Continuous load rate

100%

Cooling water pressure

0.1-0.3mpa

Host weight

65kg±5%

Transformer weight

50kg±5%

Host dimensions(L*W*H)mm

590*450*780

Transformer dimensions (L*W*H)mm

420*355*450

Particular recommended

Simple quench nut forging

Temperature protection

50 degrees




Packing&Shipping:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.

Our service:
1. On-online service for guiding./ Free technical training, technical consult.
 2. 1 year warranty./ .Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
3. Package, lanuage and logo can be designed as your requirements
4. Reply your inquiry within 24 working hours/ Product quality guarantee period for a yea after buy equipment./ Provide long-term technical services and follow-up service.
5. Experienced engineer instruct and sales communicate with you in fluent English.
6. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
7. Machine details and working video link for your reference
8. Competitive price ,compare with the same industry
9. .If you need, will arrange one engineer to your place,instruct install machine and training operators
10. Provide long-terms technical support.


 One
 Engineers availabe to service overseas.
 Two The delivery time would be only 3-7 days if there is stock.
 Three The warranty we supported is free replacements spare parts  for 12 months
 Four Transportation we supported is shipping by sea, by air, by  express DHL.
 Five Payments:L/C, T/T, D/P, D/A, Western Union, MoneyGram,  Paypal, Cash is allowed


FAQ
Why Choose Us
1. over 15 years eperience in induction heating field
2. heating furnace is safety and reliability, long life
3. our heating equipment export to Italy, Mexico ,Turkey, Slovakia, Pakistan, Iran,Vietnam,India, Malaysia,Brazil ,Indonesia,South Africa,etc. And winning great popularity
4. one year warranty and life-time technology support
5. fast, timely delivery & reliable after-sales service
6. spare parts & tools delivered with harvester for daily maintenance
7. customers & quality first

Contact us:


Mobile phone: +86 18937170169


Website:http://www.inductionheating.com.cn
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.

Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.

A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
