Prod Model: |
Y78 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Forging Forming Method: |
Free Forging |
Product Description

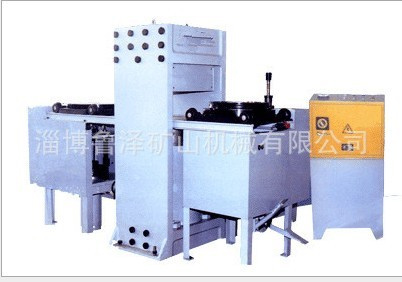

It is used for molding abrasive products and other molding processes, such as ceramic and resin bond wheels, etc. Sensitive and simple operation mode, small noise, stable pressure, and could meet the needs of different production processes. Working pressure and stroke are adjustable within the parameters.
Optional accessories for abrasive molding hydraulic press:
- Dust-proof device
- PCL programmable controller
- Touch PLD
- Hydraulic heating and cooling system
- Digital display and control devices for stroke and pressure
Technical parameter |
Unit |
Y78-40 |
Y78-63 |
Y78-100 |
Y78-160 |
Y78-250 |
Y78-315 |
Nominal force |
kN |
400 |
630 |
1000 |
1600 |
2500 |
3150 |
Max. stroke of the master cylinder |
mm |
200 |
200 |
200 |
200 |
200 |
200 |
Max. stroke of the dumping cylinder |
mm |
300 |
300 |
300 |
300 |
300 |
300 |
Worktable size |
L/R |
mm |
350 |
380 |
420 |
450 |
480 |
520 |
F/B |
mm |
350 |
380 |
420 |
450 |
480 |
520 |
Max. Distance of master cylinder plate to worktable |
mm |
350 |
370 |
400 |
430 |
450 |
470 |
Ejection speed of the worktable |
mm/s |
45 |
42 |
40 |
42 |
42 |
42 |
Return speed of the worktable |
mm/s |
120 |
115 |
120 |
55 |
55 |
55 |
Host motor power |
kW |
4 |
4 |
5.5 |
7.5 |
7.5 |
7.5 |
Turntable motor power |
kW |
0.75*2 |
0.75*2 |
0.75*2 |
0.75*2 |
0.75*2 |
0.75*2 |
Machine size |
L/R |
mm |
1200 |
1280 |
1350 |
1420 |
1500 |
1590 |
F/B |
mm |
1500 |
1700 |
1800 |
2000 |
2200 |
2400 |
Height |
mm |
1400 |
1550 |
1600 |
1650 |
1700 |
1745 |
Zibo Luze Mining Machinery Co., Ltd. is a company specializes in mining machinery and equipment. Our main products are: Various models of hydraulic machines; Rotary kiln; Crusher; Ball Mill; Vibrating Screen; Conveyor; Hoisting machine; CNC shearing machine; Bending machine; Ceramic glaze and so on.
Mr. Sun Wenlong - general manager of this company with all staff sincerely welcome your patronage and guidance.
