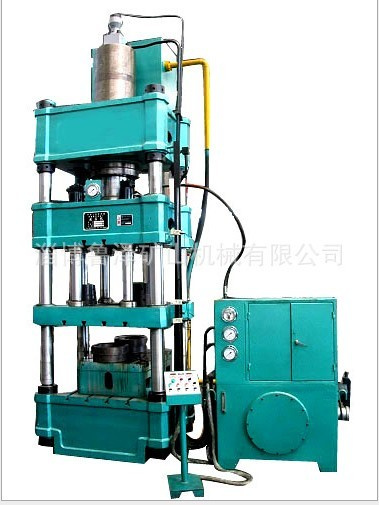

Single-Action / Double-Action Hydraulic Press

Single-Action / Double-Action Hydraulic Press
Price: Negotiable/Set
Trade Terms: FOB,EXW
Min Order: 1/Set
Pay Type: T/T
Prod Model: Y27 Y28
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forging Forming Method: Free Forging

Product Description

This series of hydraulic press used in drawing, blanking, bending, flanging and other process equipment. For automobiles, tractors, locomotives, ships, electrical, instrumentation and other industries, as well as power industry and aviation industry, sheet metal stretching, bending, extrusion, molding and other processes. It also suitable for a variety of high tensile strength alloy plate's stretch working.

Y27/28 Single-action / double-action hydraulic press:
1. Operate simple
2. Reliable function
3. Maintaining convenience
No. T echnical  parameter Unit Model
Y27 - 100 Y27 - 200 Y27-315 Y27-500 Y27-1250
1 Nominal  force  KN 1000 2000 3150 5000 1250
2 Hydraulic  cushion  force  KN 400 600 800 1600 4000
3 Max.   pressure-pad-force Mpa 25 25 25 25 25
4 Slide  stroke  mm 600 700 800 900 900
5 Hydraulic  cushion  stroke  mm 200 260 300 300 300
6 Max.   Distance  of  slide  l ower  plane  to  work table  mm 800 1100 1250 1500 1500
7 Slide  stroke  speed Speed-no-load mm/s 120 100 80 120 80
Work  mm/s 20 12 8 10 6--10
Back  mm/s 60 52 42 40 45
8 Worktable  size L/R mm 570 900 1200 1400 2400
F/B mm 600 900 1200 1400 1600
9 Hydraulic  pad  size L/R mm 450 700 1000 1100 1800
F/B mm 400 600 800 100 1000
10 Motor  power  KW 7.5 15 22 44 60
11 Weight   KG 5000 13200 1820 32000 75000
