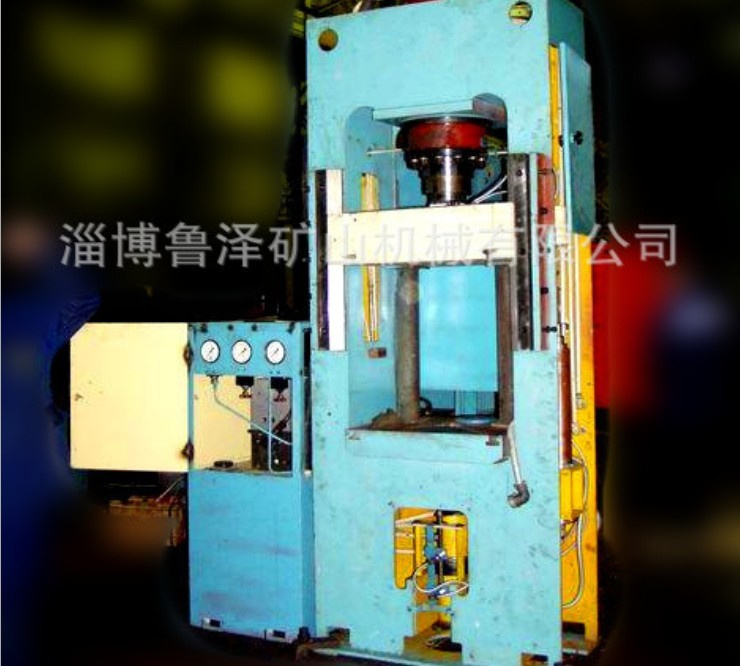

SMC Hydraulic Press for FRP Products

SMC Hydraulic Press for FRP Products
Price: Negotiable/Set
Trade Terms: FOB,EXW
Min Order: 1/Set
Pay Type: T/T
Prod Model: SMC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forging Forming Method: Free Forging

Product Description

- SMC hydraulic press for SMC, DMC, BMC
- Hot forming hydraulic press
- For FRP door skin, SMC/GRP parts
- Rated force: 100-2000ton

The hydraulic control system of SMC hydraulic press adopts cartridge type integrated valve to facilitate the reliability and prolong the working life with less hydraulic shock. The working speed can be adjusted during a wide range. The cylinder use the imported seal ring with good durability to prolong the exchanging cycle and avoid the leak phenomenon.

The hydraulic filter is equipped with hydraulic system to meet the working requirements under all kinds of working conditions along with stoppage alarm for filter jams, oil position and oil temperature etc. In addition, it is equipped with the hydraulic lock to improve the safety and reliability through preventing the slide down. We can extend the width and height with customers' requirements.
Number Technical  parameter Unit  Model:   32-630
1 Nominal  force kN 6300
2 Return  force kN 1200
3 Ejecting  force  kN 2000
4 Open  height mm 1500
5 Slide  stroke mm 900
6 Ejection  stroke  mm 350
7 Worktable  size L/R mm 1400
F/B mm 1400
8 Slide  speed  Down  mm/s 80-120
Work mm/s 10-15
Back  mm/s 70-75
9 Ejecting  speed Slow mm/s 1~5
Fast mm/s 40-45
10 Return  speed mm/s 90-100
Zibo Luze Mining Machinery Co., Ltd. is a company specializes in mining machinery and equipment. Our main products are: Various models of hydraulic machines; Rotary kiln; Crusher; Ball Mill; Vibrating Screen; Conveyor; Hoisting machine; CNC shearing machine; Bending machine; Ceramic glaze and so on.

Mr. Sun Wenlong - general manager of this company with all staff sincerely welcome your patronage and guidance.
