| Prod Model: |
CXM-CVV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

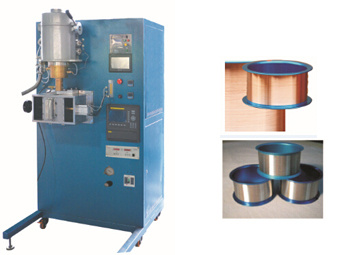

Accuracy Vacuum Continuous Casting Machine, especially for ultra fine wire (gold bonding wire and other bonding technology), proprietary technology
Accuracy Vacuum Continuous Casting Machine suitable for Silver alloy and gold alloy casting
Accuracy Vacuum continuous casting machine adopts below-leading casting method based on fluid mechanics, that is after melted metals become fluid, it will be poured into mould closely connected under the below and be cooled down with water forcibly in order to form temperature grade and fluid metal flows into fired mold along feeding pilot bar set on the lower mold to be cooled down in order to form section bar that will be brought out by prime move.
According to different mold, different section bar will be produced.
This machine is set with microcomputer control based on the traditional devices, forms high vacuum and fills gas, which even reduces the second feeding under vacuum and fills the space of this industry.
This machine has applied for invention patent.
This is the first machine that can cast continuously under vacuum.
It can do the special casting of gold alloy and silver alloy.
The finished section can be used as raw materials of gold bonding thread, gold bonding wire, silver bonding thread and silver bonding wire with high quality.
| Specifications |
| Power supply: | Three-phase 380V |
| Power: | 15-20KW(mm) |
| Temperature range: | 1450 C |
| Metal capacity: | 5-20Kg(optional) |
| Applied metals: | Silver alloy and gold alloy |
| Casting method: | Continuous casting |
| Used gas: | Argon and nitrogen |
| Casting material type: | Φ8 |
| Vacuum range: | -2Pa |
| Feeding mode: | Active elements can be added again into early feeding material |
| Utility model patent NO. |
| 201220112755.7 |
| Design patent NO. |
| 201230081034.X |
| Invention patent NO. |
| 201210078353.4 |
Shenzhen Chengyixin Technology Co., Ltd specialized in all processes of jewelry manufacturing, including designing, laser molding, digital wax injection, metal melting, auto metal pouring, polishing, and laser welding and marking. We are one of the first domestic companies to research and invent domestic digital vacuum pressure casting machines, continuous casting machines, stainless casting machines and many other types of jewelry equipment. We successfully solved the challenge of one-time casting of gold, silver bars and ingots, moreover, applied for practical patents at the same time. Our patent technology stands us the top in China and also in the world in this industry. We devote to serving Jewelry, Eyewear, Watch, Smelting and dental industrial etc...
Chengyixin Technology Co., Ltd was established in 2002. Located inside of Juyin high-tech Industrial park of Lilang, which is separation and Reunion place of Shenzhen Jewelry industry. We are a high-tech company that integrates independent research, design, development, production and after-sales service. We are cooperating with many well-know domestic universities like South Chine University of Technology, China Central Academy of Fine Arts, Yunnan University, Jiangsu University and Shenzhen Polytechnic etc. We delicate to convert the universities' high and new technology to productive industry technical innovation. We have our own independent intellectual property rights. Our product are in use throughout China and several other overseas countries. We have established our branch company in UK, Brazil, Thailand, Indonesia. India. And so on.
Innovation is out direction, service is our Source, integrity is our power! Constantly strive to become stronger! We are working hard to build quality high-end products for industry.
