| Prod Model: |
CXM-PS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Casting Form Usage Count: |
Permanent |
| Casting Method: |
Vacuum Pressurized Rotary |
| Casting Form Material: |
Wax, Plaster |
| Casting Metal: |
K Gold, Silver,Copper,Platinum |

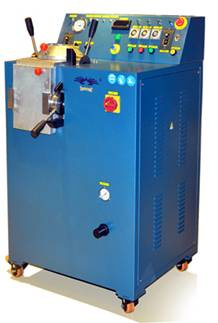

Product Description
Advantages
1. Particularly suitable for the setting of platinum and the large-surface workpiece
2. Particularly applied to the setting casting and featured with uniform fineness.
3. K gold, silver and copper can be casted.
4. Vacuum and inert gas protection
Features
1. The metal will be melted by vacuum
2. The inert gas can be filled
3. The power cup can be rotated left and right
4. The centrifugal speed can be adjusted
5. The blanking work is carried out by pouring
6. The compactness of the casting can be increased by means of gravity pressurization
7. Stable heating system, the additional and complete protection function, and the specific ultrahigh pressure design of the casting room
| Specifications |
| Power supply: | Two-phase 220V or three-phase 380V |
| Power: | 5KW |
| Frequency: | 130KHZ |
| Casting method: | Vacuum pressurized rotary type |
| Maximum revolution speed: | 180RPM/S |
| Applicable to metal: | K gold, platinum |
| Metal capacity: | 200~250g |
| Used gas: | Compressed air, inert gas |
| Sizes: | 600*700*1150(mm) |
