| Prod Model: |
CXM-CV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Introduction:

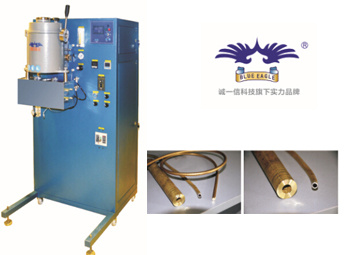

This machine adopts gas protective to prevent gasfication of gas and power traction casting method,it can cast noble metals such as high density gold,K gold and sliver in a short time.There are panel,round bar,square bar,pipe and other sharp products.Below leading casting can make sand holes in the interior of the finished goods to the minimum and the finished goods fully meet the requirements of deep process.Stirring-type induction heating of high efficiency can enhance power,banlance and purity of melted metals,enlarge melting capacity and improve melting speed.
Advantages
Decade best seller! , strong adaptability, various specifications, easy to learn, low loss and high speed, safe low-pressure.
It can be customized 2kg--50kg as customer willing.
Feature
1. Continuous Casting Machine adopts gas protective melting to prevent gasification of gas and power traction casting method.
2. Below-leading casting can make sand holes in the interior of the finished goods to the minimum and the finished goods fully meet the requirements of deep process.
3. Stirring-type induction heating of high efficiency can enhance power, balance the purity of melted metals, enlarge melting capacity, and improve melting speed.
4. Accurate digital measuring system makes you control the best casting state of metals.
5. Perfect self testing system provides safeguard of finished good with high quality.
6. It is optional to buy convenient and practical hydraulic cutter.
7. Digital PC control makes the machine more intelligent.
8. The system is very stable and safe, which is suitable for long time operation.
9. Low-pressure design is safe and reliable.
10. It can cast noble metals such as high density gold, K gold and silver in a short time.
11. There are panel, round bar, square bar, pipe and other sharps products.
| Specifications |
| Power supply: | Three-phase380V |
| Power: | 5-20KW(optional) |
| Thermometric range: | 1450 C |
| Metal capacity: | 5kg |
| Applied metals: | Gold, silver and copper |
| Casting method: | Continuous casting |
| Used gas: | Argon and nitrogen |
| Casting material type: | Stripe shape material and pipe type material |
| Dimensions: | 500*500*1500(mm) |
Shenzhen Chengyixin Technology Co., Ltd specialized in all processes of jewelry manufacturing, including designing, laser molding, digital wax injection, metal melting, auto metal pouring, polishing, and laser welding and marking. We are one of the first domestic companies to research and invent domestic digital vacuum pressure casting machines, continuous casting machines, stainless casting machines and many other types of jewelry equipment. We successfully solved the challenge of one-time casting of gold, silver bars and ingots, moreover, applied for practical patents at the same time. Our patent technology stands us the top in China and also in the world in this industry. We devote to serving Jewelry, Eyewear, Watch, Smelting and dental industrial etc...
Chengyixin Technology Co., Ltd was established in 2002. Located inside of Juyin high-tech Industrial park of Lilang, which is separation and Reunion place of Shenzhen Jewelry industry. We are a high-tech company that integrates independent research, design, development, production and after-sales service. We are cooperating with many well-know domestic universities like South Chine University of Technology, China Central Academy of Fine Arts, Yunnan University, Jiangsu University and Shenzhen Polytechnic etc. We delicate to convert the universities' high and new technology to productive industry technical innovation. We have our own independent intellectual property rights. Our product are in use throughout China and several other overseas countries. We have established our branch company in UK, Brazil, Thailand, Indonesia. India. And so on.
Innovation is out direction, service is our Source, integrity is our power! Constantly strive to become stronger! We are working hard to build quality high-end products for industry.
